6-3. Input / Output Connector Connection

6-3-1. Pin Arrangement of the I/O Connector

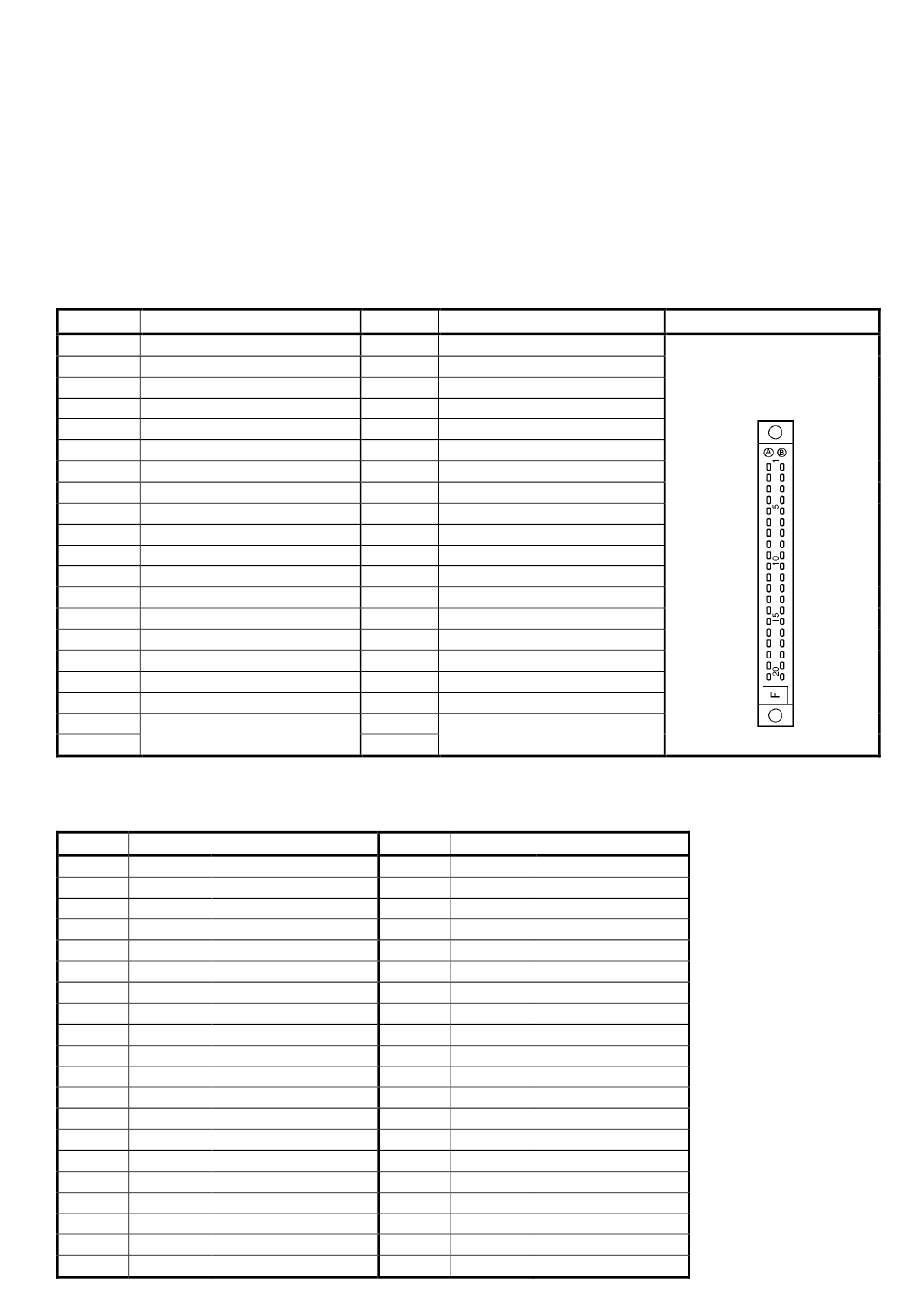

The following chart indicates the pin arrangement of the I/O connector. The pin arrangements of the sink and
source types are the same.
Connector model: FCN-361J040-AU / FCN-360C040-B (FUJITSU COMPONENT LIMITED)
or N361J040AU / N360C040E (OTAX CO.,LTD.)
Compatible wire size: 0.3mm
Pin No. Signal name
B20 Position data D0
B19 Position data D1
B18 Position data D2
B17 Position data D3
B16 Position data D4
B15 Position data D5
B14 Position data D6
B13 Position data D7
B12 Position data D8
B11 Position data D9
B10 Position data D10
B9 Position data D11
B8 Position data D12
B7 Position data D13
B6 Position data D14
B5 Position data D15
B4 HOLD input HD
B3 Zero point setting ZPS
B2
+24V common P24
B1
● I/O cable (VS-C05)
Indicates wire colors and markings.
Pin No. Wire colors & markings
B20 Pink
B19 Yellow
B18 White
B17 Gray
B16 Orange
B15 Pink
B14 Yellow
B13 White
B12 Gray
B11 Orange
B10 Pink
B9 Yellow
B8 White
B7 Gray
B6 Orange
B5 Pink
B4 Yellow
B3 White
B2 Gray
B1 Orange
2
Pin No.
A20
A19
A18
A17
A16
A15
A14
A13
A12
A11
A10
(Black■■■■)
(Black■■■■)
(Black■■■■)
(Black■■■■)
(Black■■■■)
(Black■■■ )
(Black■■■ )
(Black■■■ )
(Black■■■ )
(Black■■■ )
(Black■■ )
(Black■■ )
(Black■■ )
(Black■■ )
(Black■■ )
(Black■ )
(Black■ )
(Black■ )
(Black■ )
(Black■ )
Signal name
Position data D16
Position data D17
Position data D18
Position data D19
Position data D20
Position data D21
Position data D22
Position data D23
Position data D24
Position data D25
NC
A9 NC
A8 Latch pulse output LP
A7 System ready output NOR
A6 Error output ERR
A5 NC
A4 Error clear input CLR
A3 NC
A2
0V common Z24
A1
Pin No. Wire colors & markings
A20 Pink (Red■■■■)
A19 Yellow (Red■■■■)
A18 White (Red■■■■)
A17 Gray (Red■■■■)
A16 Orange (Red■■■■)
A15 Pink (Red■■■ )
A14 Yellow (Red■■■ )
A13 White (Red■■■ )
A12 Gray (Red■■■ )
A11 Orange (Red■■■ )
A10 Pink (Red■■
A9 Yellow (Red■■
A8 White (Red■■
A7 Gray (Red■■
A6 Orange (Red■■
A5 Pink (Red■
A4 Yellow (Red■
A3 White (Red■
A2 Gray (Red■
A1 Orange (Red■
20
Pin arrangement
Shows the pin arrangement
as viewed from the
soldering terminals side.
A1 B1
A20 B20
)
)
)
)
)
)
)
)
)
)
