TROUBLESHOOTING
11.4.3

Message history

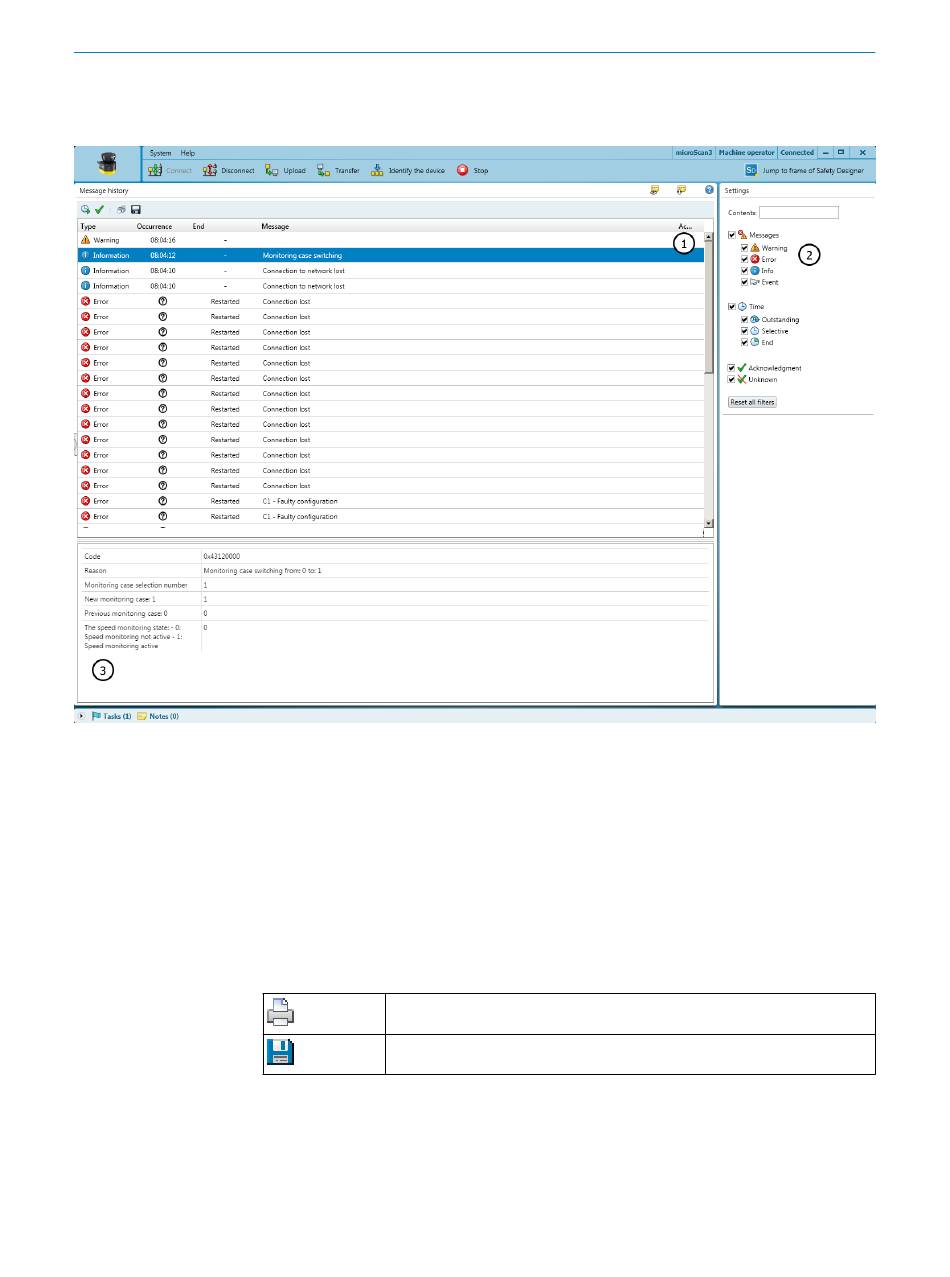

Figure 91: Message history
Message history
1
Display filter
2
Details about the selected message
3
11.4.4

Inputs and outputs

154 O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherNet/IP™
Overview
All events, such as faults, warnings and information are stored in the message history.
By right-clicking on the table header, you can select the columns displayed in the mes‐
sage history.
Safety Designer shows details about the events in the bottom part of the window, ways
to solve them are also shown.
Table 28: Print message history or save as a PDF
Print message history
Save message history as a PDF
Safety Designer displays information on the supported assemblies.
The arrows to the device symbolize the output assemblies (from the view of the control).
The arrows away from the device symbolize the input assemblies (from the view of the
control).
