11
TROUBLESHOOTING
11.3

Diagnostics using the display

11.3.1

Status display

144 O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherNet/IP™
LED status Meaning
Correctable error (e.g.
Ö Red
CIP connection inter‐
rupted)
Device self-test
Ö Red/green
Device is being config‐
ured
Configuration error
The display supplies information about the status of the safety laser scanner, and for
diagnostics and troubleshooting.
The display shows current information about the safety laser scanner's status. The dis‐
play switches off after approx. 60 s if all fields are clear and no other notification is dis‐
played.
If the display is switched off, press any pushbutton to activate the display.
b
Press any pushbutton to obtain more details about the displayed status informa‐
b
tion.
If there are a number of pages with detailed information, this is shown in the top
b
right of the display.
Press the arrow buttons to change between a number of pages with detailed infor‐
b
mation.

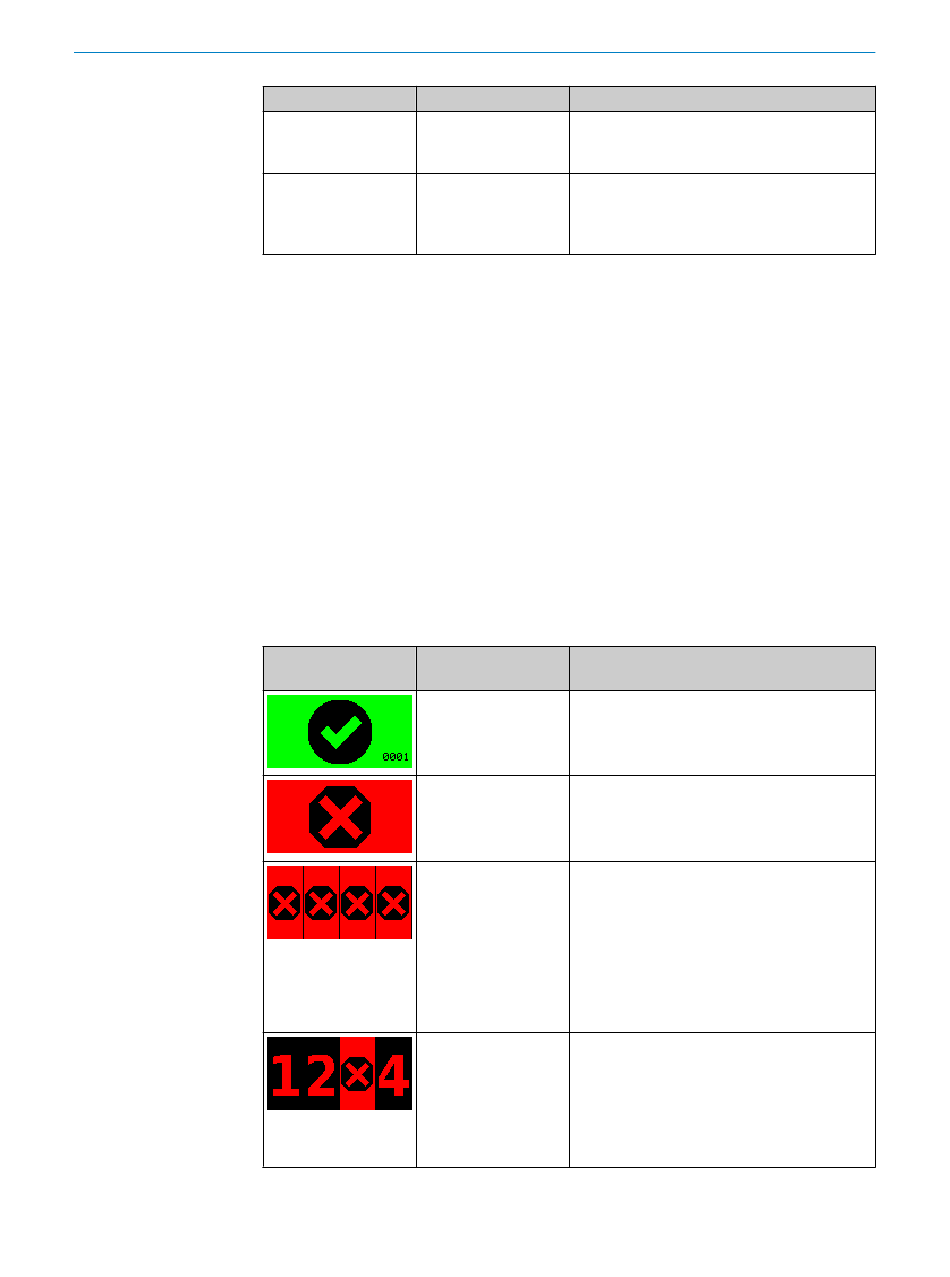

Table 26: Overview of status information
Display Device or configura‐
tion
All devices and config‐
urations
Devices and configu‐
rations with a config‐
ured safety output
Devices and configu‐
rations with 2 to 4
configured safety out‐
puts
Devices and configu‐
rations with 2 to 4
configured safety out‐
puts
Troubleshooting
b Reestablish CIP connection.
b Configure device.
Meaning
All fields clear, safety outputs in ON state.
The number at bottom right indicates the
active monitoring case.
Protective field interrupted, safety output in
OFF state.
For every of 4 cut-off paths, the following
applies: the protective field is interrupted or
there is a warning field in the active monitoring
case. Safety outputs in the OFF state.
Each column stands for a safety output.
Safety outputs in the OFF state are marked
with a cross if they could be in the safety-
related ON state in at least one monitoring
case.
The protective field in position 3 is interrupted
or there is a warning field in the active monitor‐
ing case. The associated safety output is in the
OFF state.
Safety outputs for which no field is interrupted
and which are in the ON state are marked with
their number.
