PRODUCT DESCRIPTION
3.2.2

Variants

3.2.3

Status indicators

16 O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherNet/IP™
• The front is the side of the safety laser scanner on which the display is located.
The 90° angle of the sector of a circle scanned by the safety laser scanner points
in this direction.
• The back is the side of the safety laser scanner opposite the display. The sector of
a circle not scanned by the safety laser scanner lies in this direction.
The safety laser scanner is delivered in different variants. You will find an overview of
important distinguishing features of the variants in the following.
Performance package
The Core and Pro performance packages feature a number of configurable fields and a
number of safety switching functions.
• microScan3 Core – EtherNet/IP™
• microScan3 Pro – EtherNet/IP™
Integration in the control
The safety laser scanner communicates with the machine controller as follows:
•
EtherNet/IP™ – CIP Safety™
Protective field range
The safety laser scanner is available in variants with the following maximum protective
field range:
•
4.0 m
•
5.5 m
• 9.0 m
Further topics
•
"Variant overview", page 157
The safety laser scanner outputs important status information using a number of light
emitting diodes. The safety laser scanner has a graphical display and 4 pushbuttons for
additional information.
4 status light emitting diodes are located directly above the display.
1 2 3 4

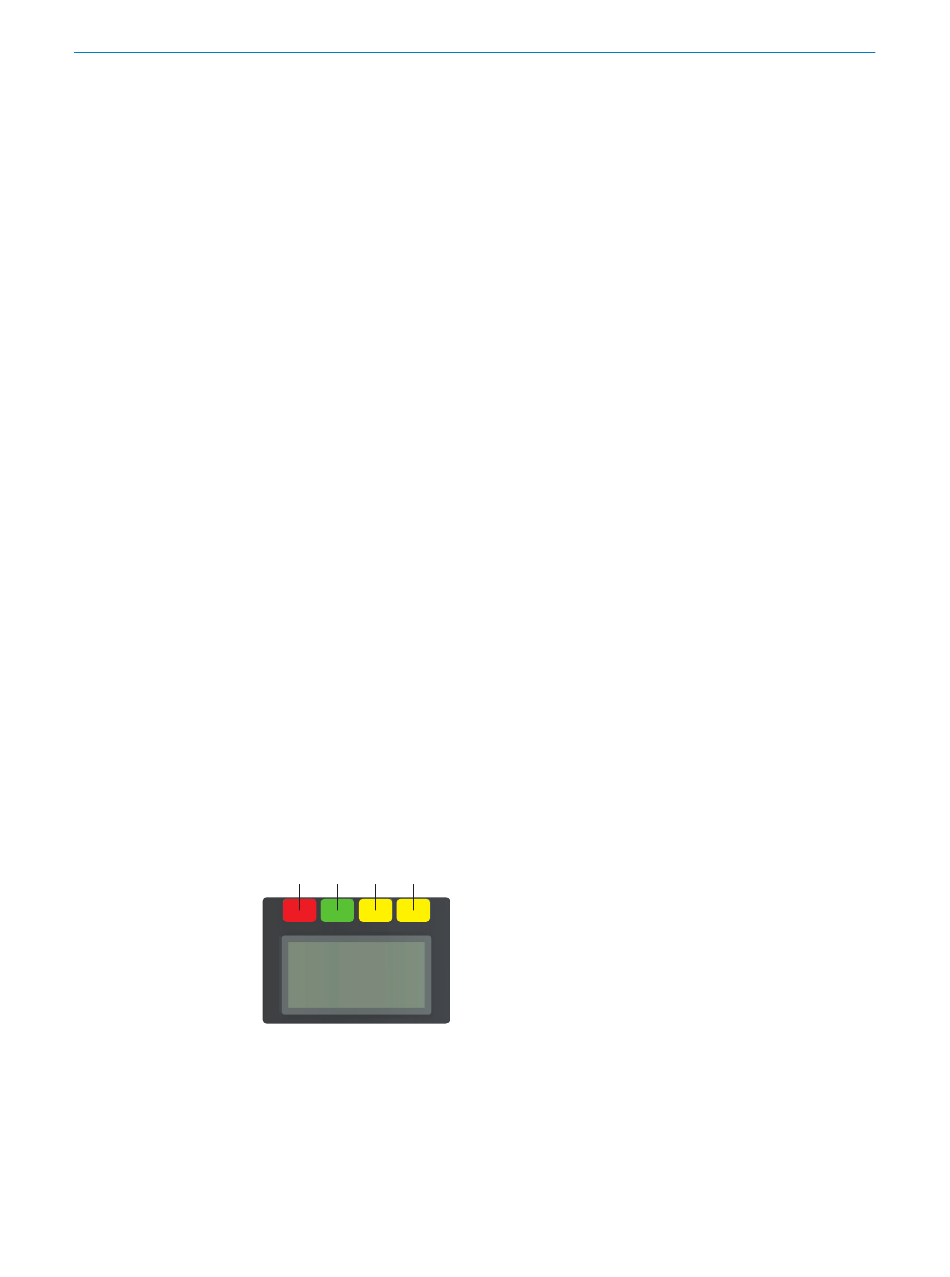

Figure 5: Status LEDs
