TROUBLESHOOTING
11.4.2

Event history

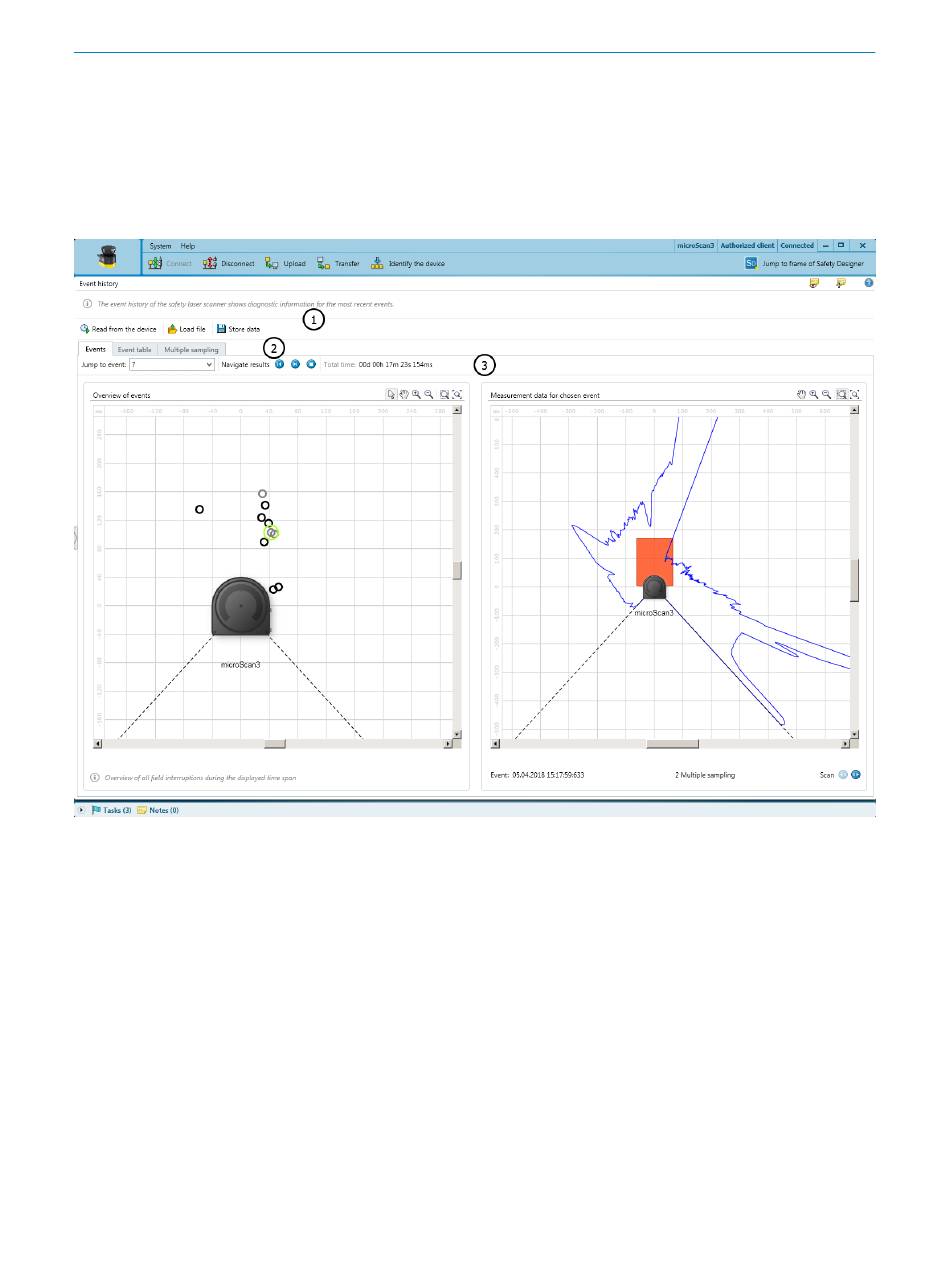

Figure 90: Event history
Data source
1
Available views
2
Navigation
3
152 O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherNet/IP™
Approach
1. Import configuration from the device.
2. Take an image.
Overview
The safety laser scanner stores data on important events. The event history displays
information about the most recently stored events.
Event memory in the safety laser scanner
The safety laser scanner stores data on the following events:
• Safety output switches to the OFF state
• The protective field, the reference contour field or the contour identification field is
interrupted
For each field interruption where a safety output switches to the OFF state, the safety
laser scanner stores the data from 10 scans. When the internal memory of the safety
laser scanner is full, the scan data of the oldest field interruption is overwritten to store
a new field interruption. The position and time of the field interruption are retained.
The internal memory of the safety laser scanner is emptied when it is restarted.
