SICK microScan3 EtherNet/IP Operating Instructions Manual page 166

13
TECHNICAL DATA
166 O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherNet/IP™
Resolution
30 mm
Scanning range of the reference contour field
The effective scanning range of the reference contour field is the same as the protec‐
tive field range.
Scanning range of the contour detection field
The effective scanning range of the contour detection field is the same as the protective
field range.
Range for warning fields
For non-safety applications (warning fields), the safety laser scanner has a larger range
than the maximum protective field range. The requirements for size and remission of
objects to be detected are illustrated in the following graphs as a function of the
desired range.
d [mm]
1000
500
200
100
50
20
10
5 10

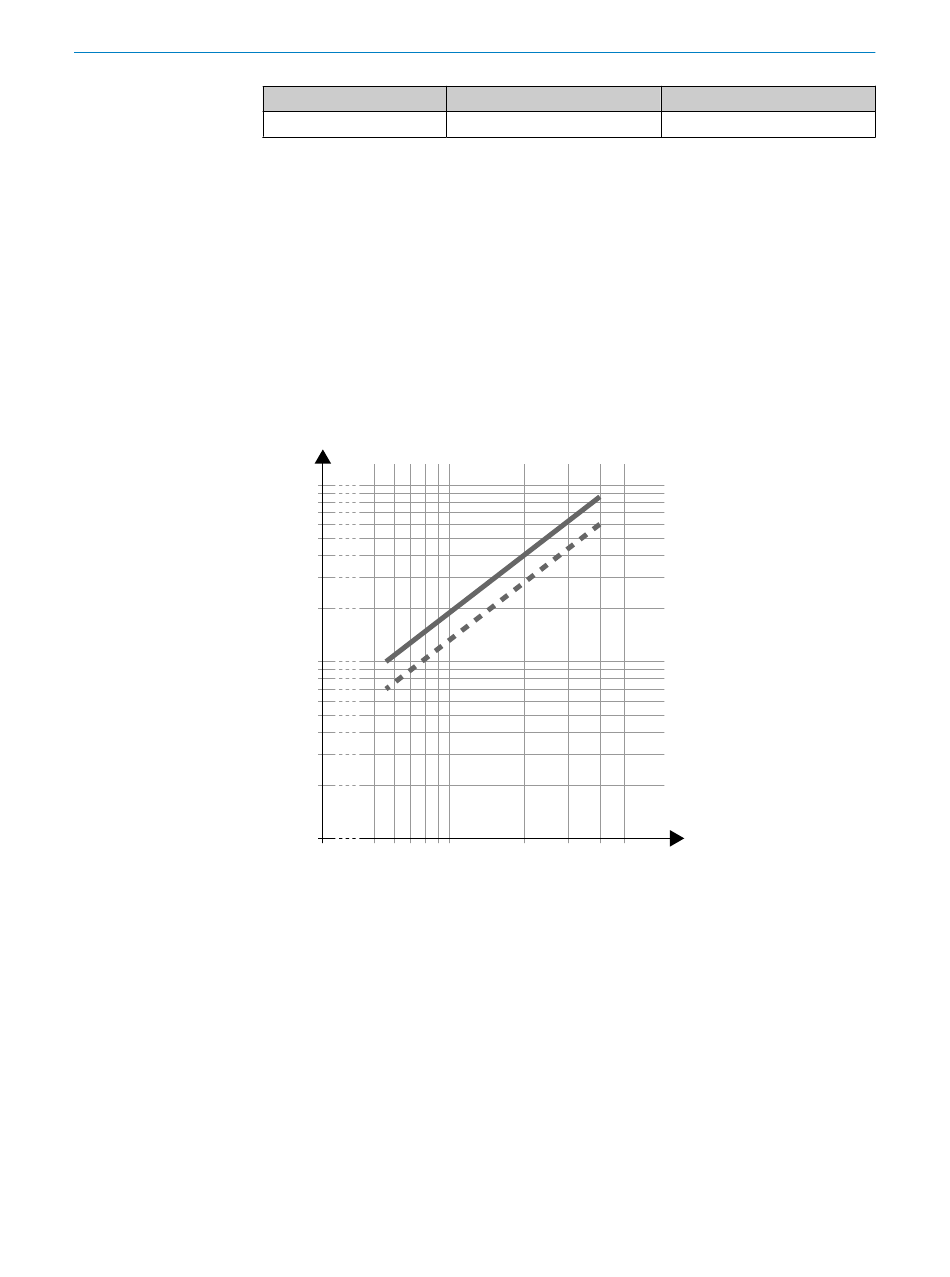

Figure 92: Scanning range and object size for warning fields (devices with a max. protective field
range of 4.0 m and devices with max. protective field range of 5.5 m)
d Required minimum size of the object in mm
D Range in m
Scan cycle time = 30 ms
1
Scan cycle time = 40 ms
2
50 ms scan cycle time
4.50 m
1
2
20 50
40 ms scan cycle time
3.00 m
D [m]
