11
TROUBLESHOOTING
11.4.3

Message history

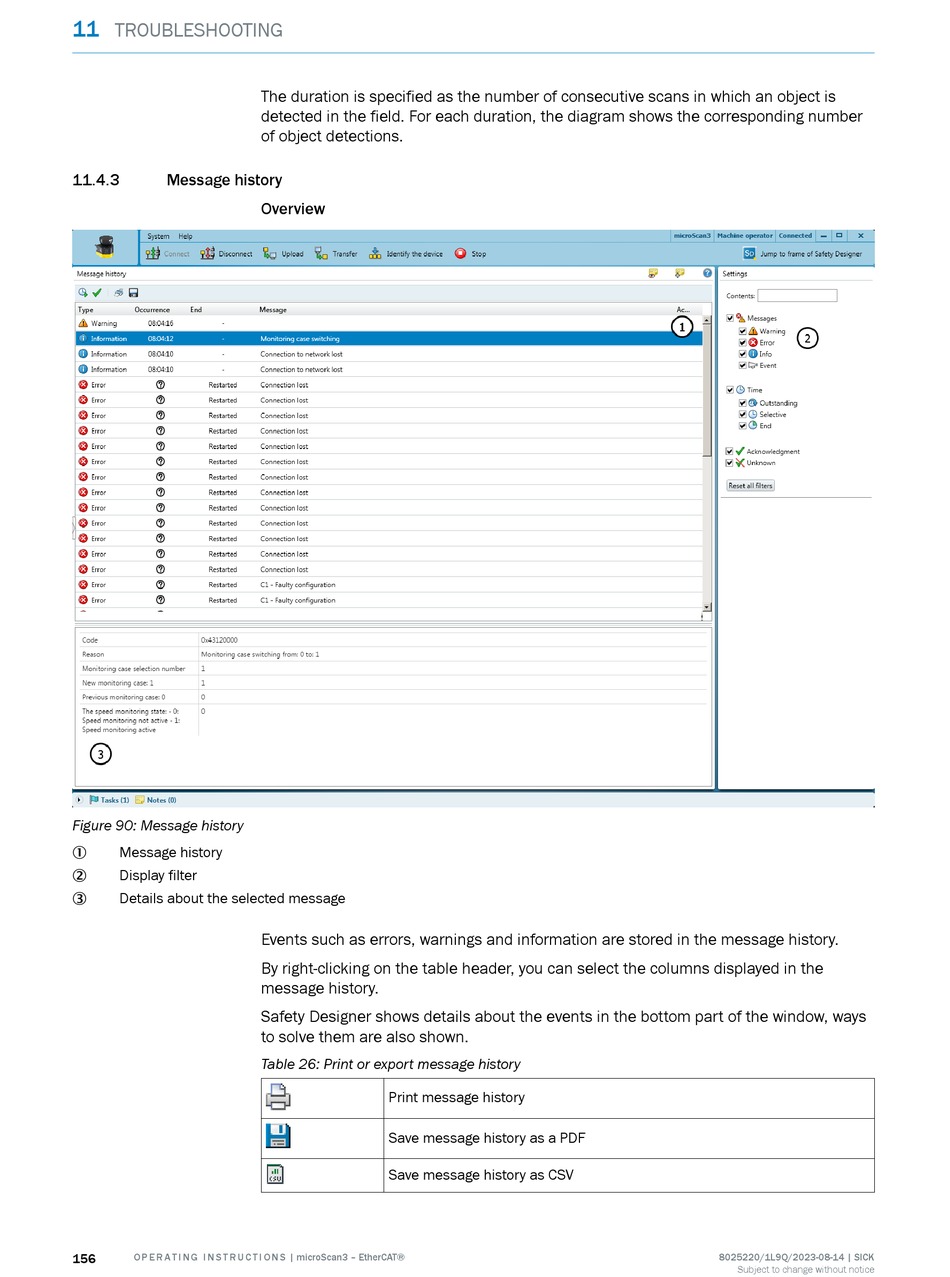

Figure 90: Message history

Message history

1
Display filter
2
Details about the selected message
3
156 O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT®
The duration is specified as the number of consecutive scans in which an object is
detected in the field. For each duration, the diagram shows the corresponding number
of object detections.
Overview
Events such as errors, warnings and information are stored in the message history.
By right-clicking on the table header, you can select the columns displayed in the
message history.
Safety Designer shows details about the events in the bottom part of the window, ways
to solve them are also shown.
Table 26: Print or export message history
Print message history
Save message history as a PDF
Save message history as CSV
8025220/1L9Q/2023-08-14 | SICK
Subject to change without notice
