Digital SmartHandle AX
(Manual)

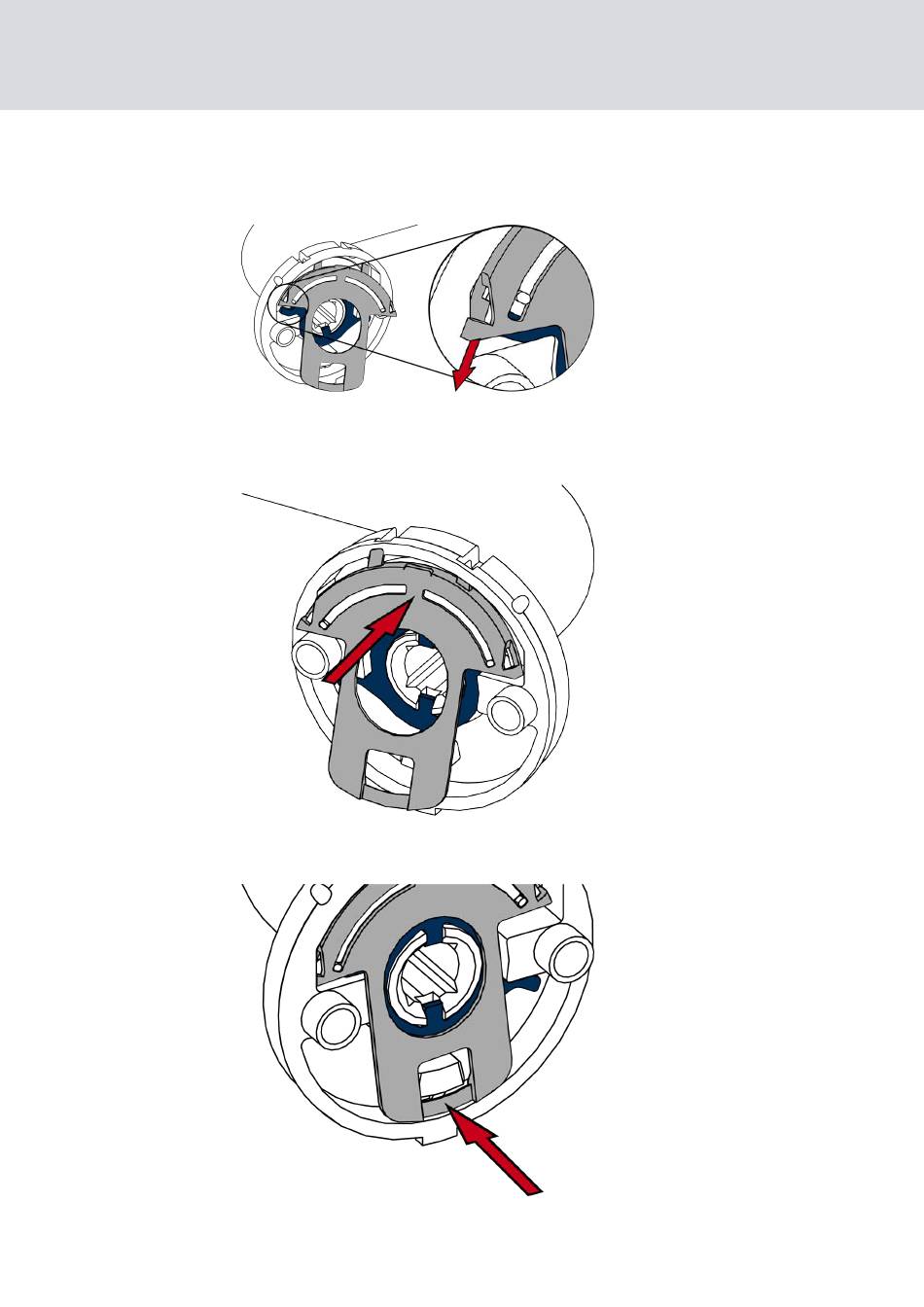

7. Press the spring plate on one side against the interchangeable plate so
that the spring is compressed.
8. At the same time, hook the spring plate tabs into the slot in the inner
handle.
9. Press down the spring plate bracket.
9
The inner handle is now ready.
7.. Installation
94 / 296
