7.8.7 Installing the fitting

(Manual)
ü Door pre-drilled.
ü PH2 screwdriver at hand.
TX15 screwdriver at hand.
ü
Vernier calliper at hand.
ü
ü Pincers at hand.

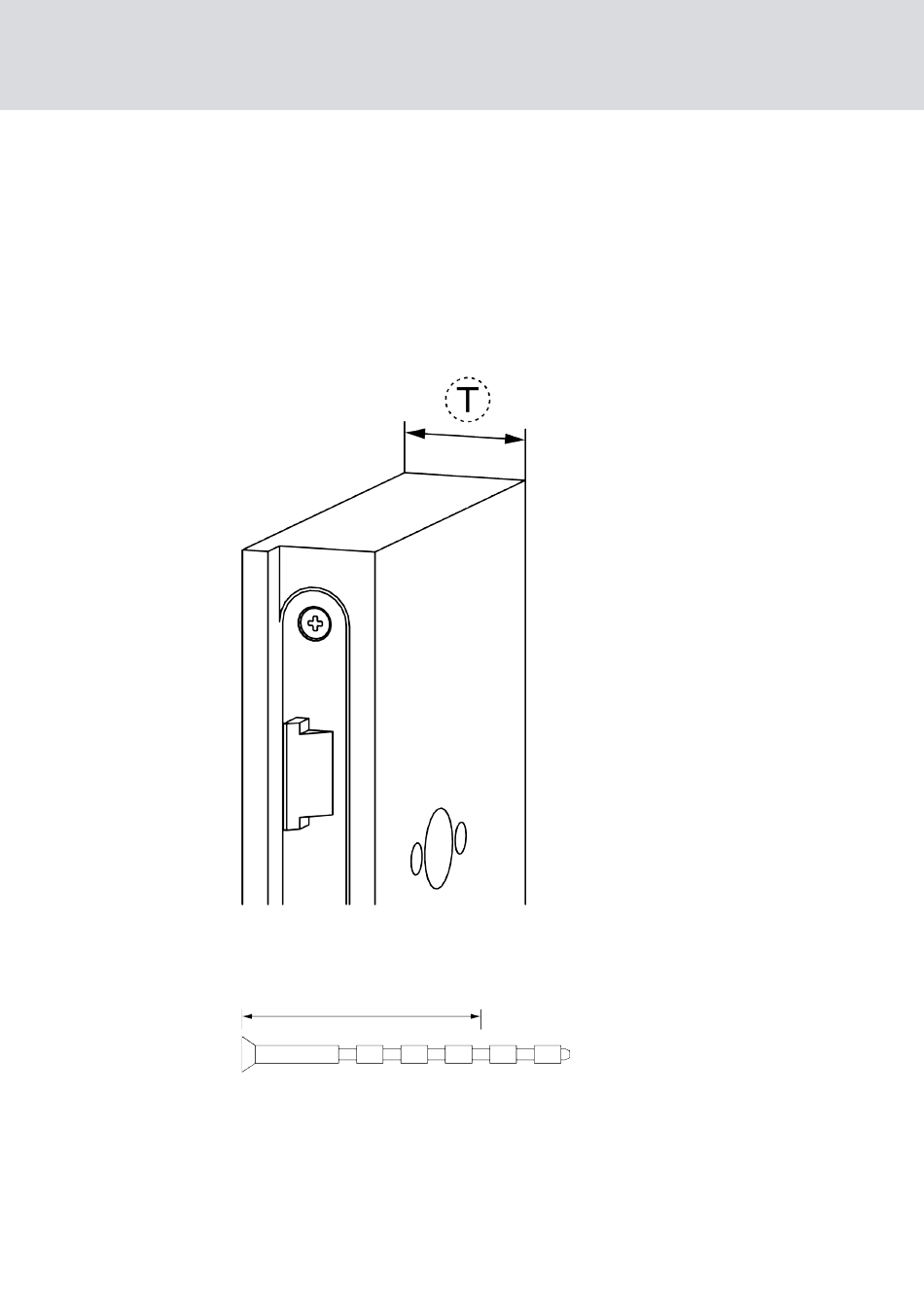

1. For S, M and L: measure the door thickness.
2. For S, M and L: determine the cutting points on the cut-to-length
screws.
Door thickness – 11 mm (±3 mm)
