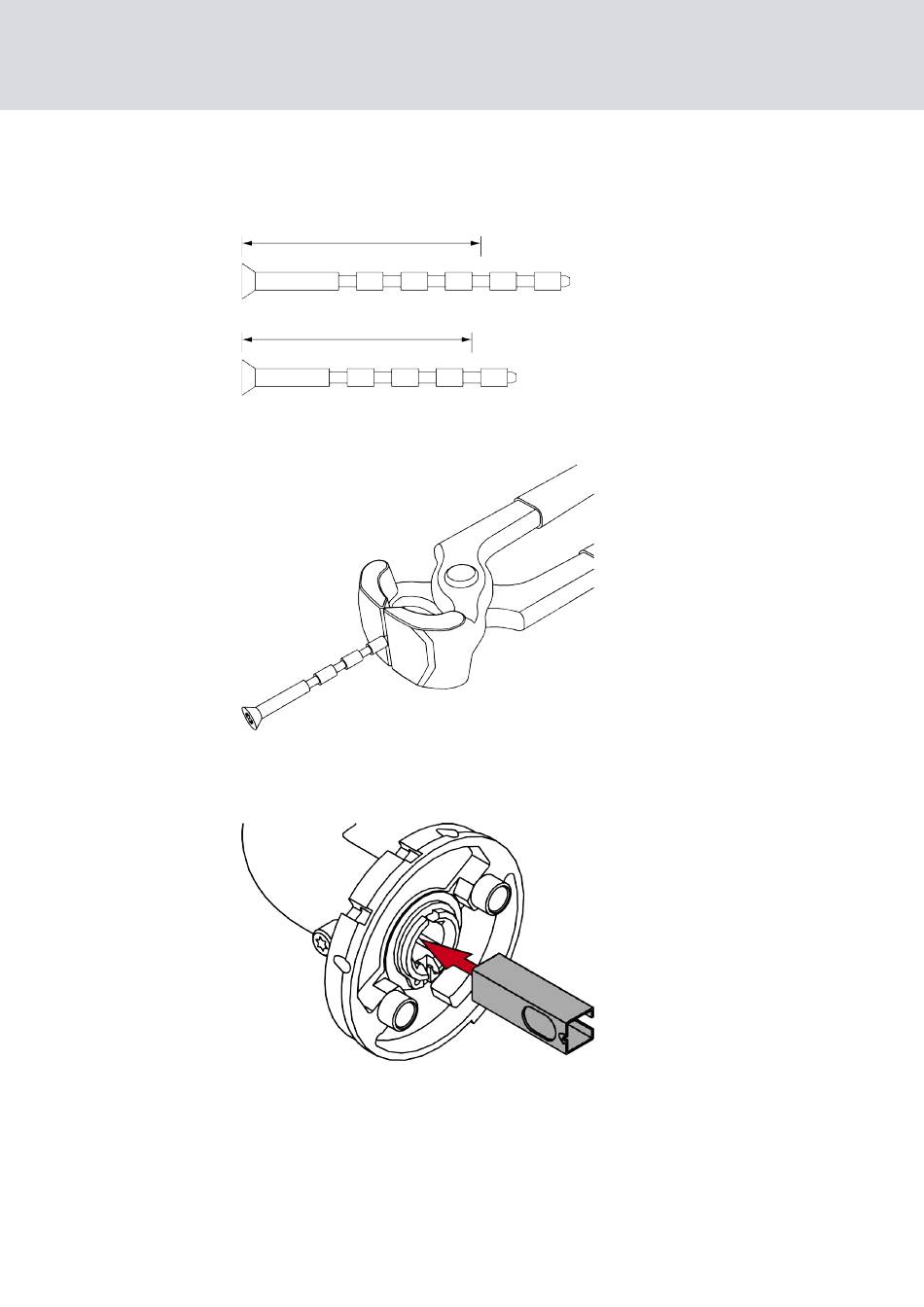

2. For S, M and L: determine the separation points on the cut-to-length
screws L1 and L2.
2× L1: door thickness + 10 mm (±3 mm)
2× L2: door thickness + 3 mm (±3 mm)
3. For S, M and L: trim the cut-to-length screws L1 and L2.
4. For 7 mm spindle: place the adapter sleeve in the inner handle in such a
way that the recess faces the grub screw.
