Digital SmartHandle AX
7.8.4 Prepare door (drilling template)
(Manual)
ü
Pin or scriber at hand.
ü
Drill at hand.
Suitable drill bit at hand (depending on mortise lock hole diameter:
ü
8.5 mm/9.5 mm/10.5 mm).
PH2 screwdriver at hand.
ü

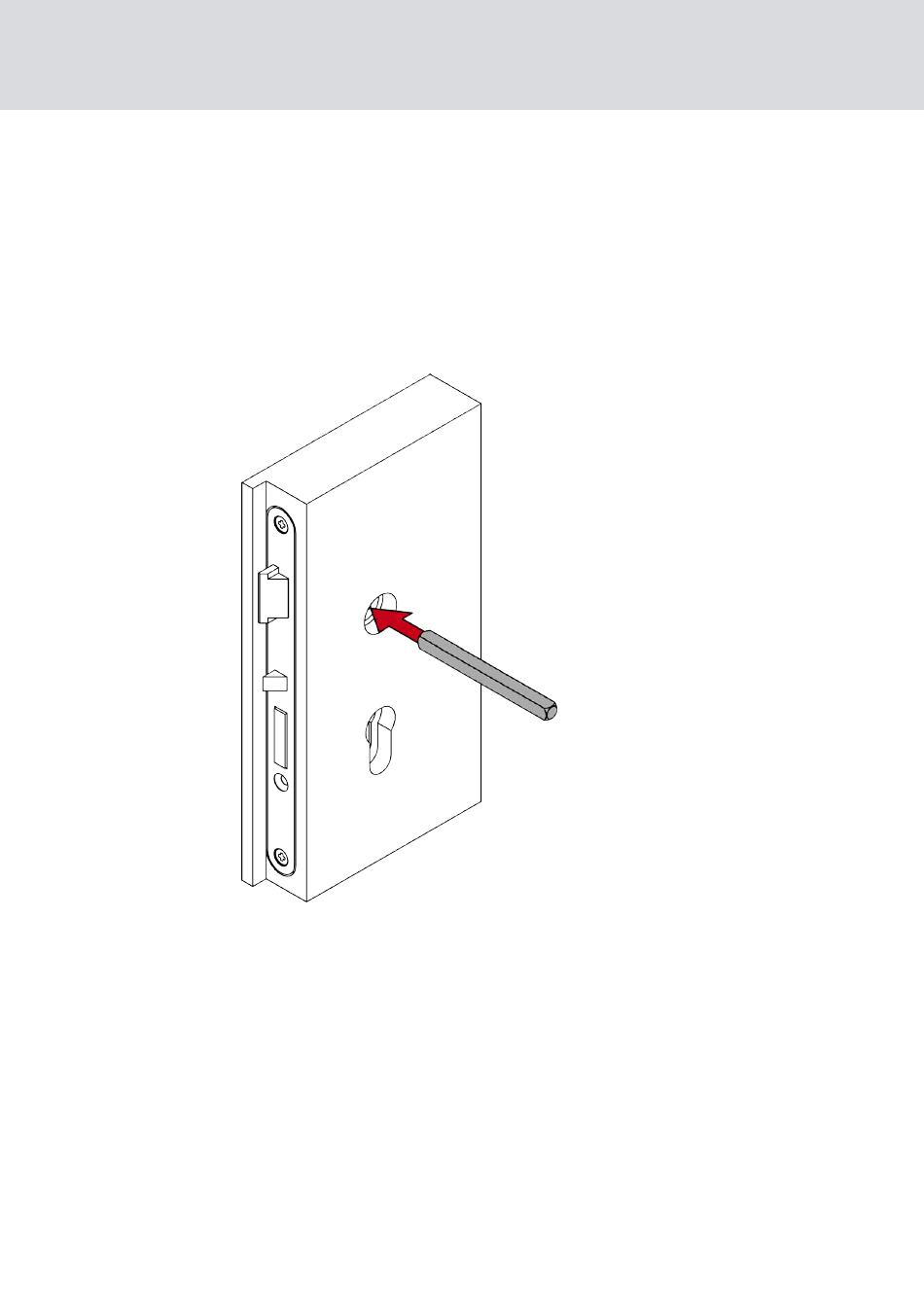

1. Insert the spindle into the mortise lock.
7.. Installation
175 / 296
