16.4.2 CISA
(Manual)

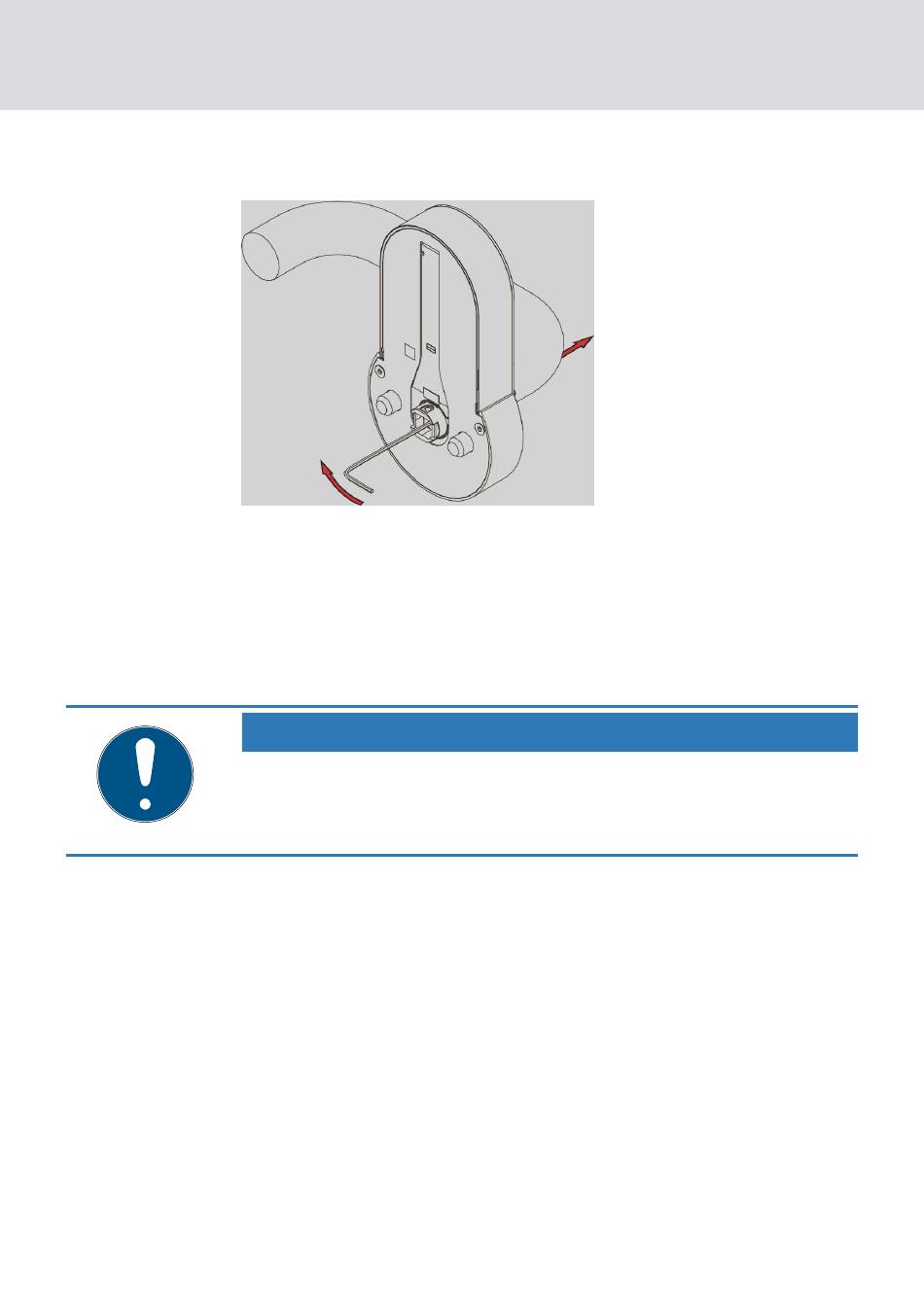

2. Push the Allen wrench towards the nearer edge and hold it pressed.
3. Remove the handle from the assembly.
9 SmartHandle AX is disassembled.
1. Remove the panic bar as described in the manufacturer's documenta-
tion except for the adapter plate.
NOTE
Third party product with own documentation
The panic bar holder is a third-party product.
Please follow the manufacturer's instructions and safety instructions.

2. Unscrew the screws of the mounting plate.
3. Pull out the fitting with the adapter plate and the square.
SmartHandle AX is removed from the door.
9
4. Unscrew the screws that fix the SmartHandle AX to the adapter plate.
Adapter plate is removed.
9
5. Push the locking pin of the square inward and pull the square out of the
assembly.
The square is removed.
9
