Digital SmartHandle AX
Ø mortise
lock Adapter
fastening sleeves
hole
5.5 mm– No adapter
6.3 mm sleeves
6.4 mm–
6.4 mm
7.3 mm
7.4 mm–
7.4 mm
8.7 mm
≥ 8.8 mm 8.8 mm
(Manual)

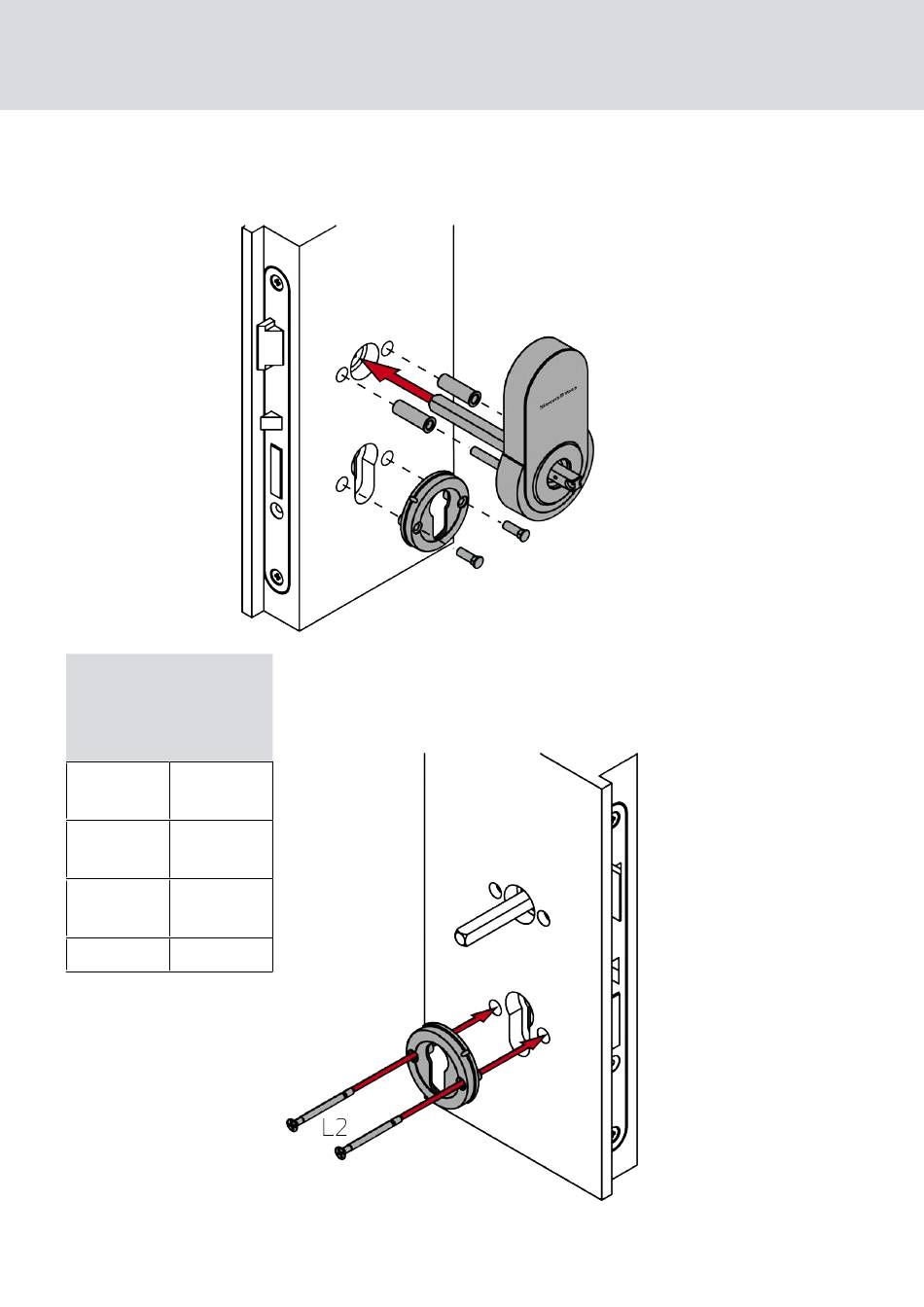

13. Insert the fitting with the spindle into the door. Use adapter sleeves if
necessary.
14. Insert the escutcheon base into the door with the sleeve nuts.
15. Fasten both escutcheon bases together with the L2 screws (PH2,
torque 1.1 Nm).
7.. Installation
