7.4.8 Installing the fitting

(Manual)
ü Door pre-drilled.
ü PH2 screwdriver at hand.
TX15 screwdriver at hand.
ü
Vernier calliper at hand.
ü
ü Pincers at hand.

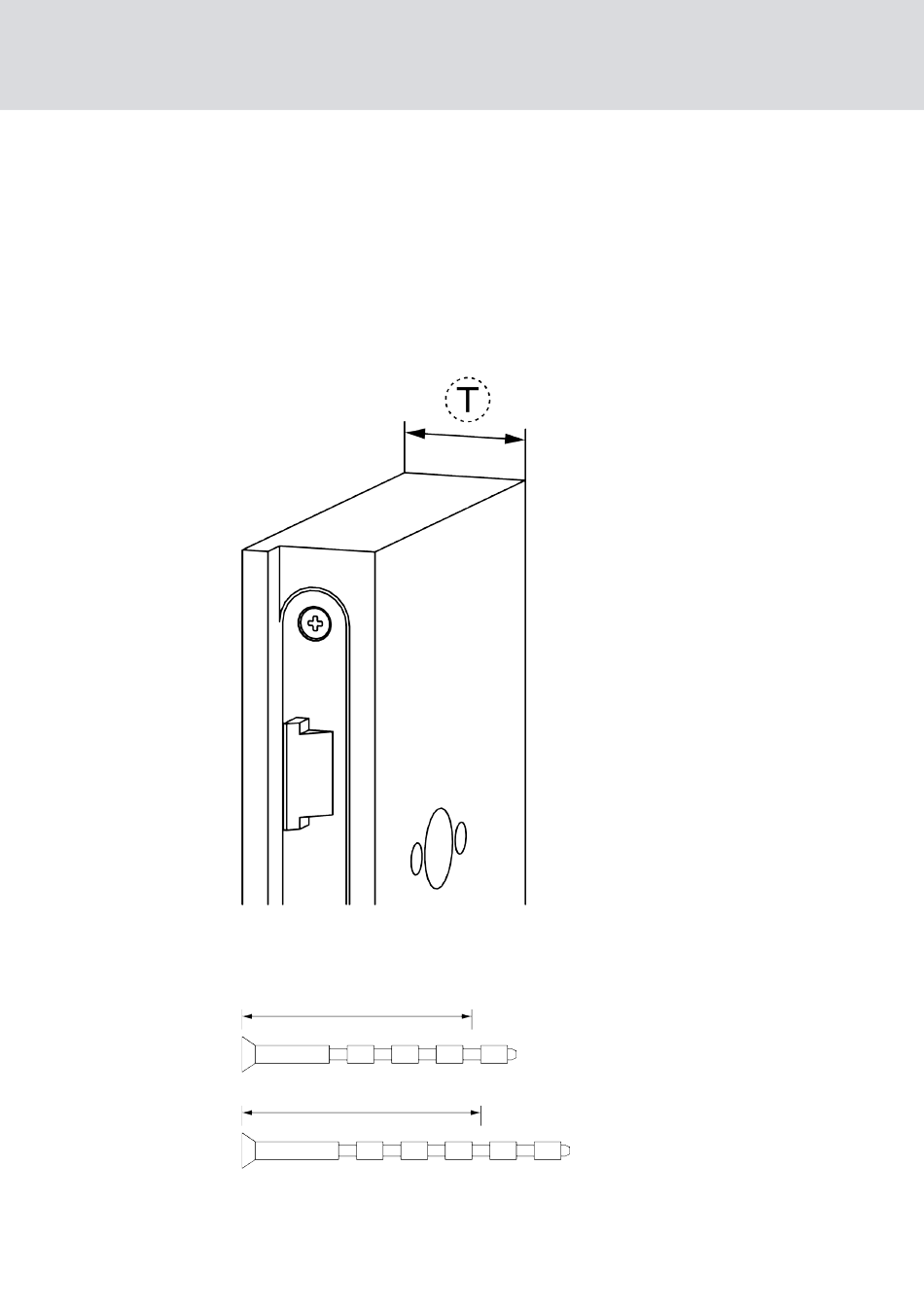

1. For S, M and L: measure the door thickness.
2. For S, M and L: determine the separation points on the cut-to-length
screws L1 and L2.
2× L1: door thickness - 8 mm (±3 mm)
2× L2: door thickness + 8 mm (±3 mm)
