Digital SmartHandle AX
Door
thick- Screw
Size
ness s (M4)
(mm)
38 –
S 33
50
49 –
S 43
60
59 –
M 53
70
69 –
M 63
80
79 –
L 73
90
89 –
L 83
100
(Manual)

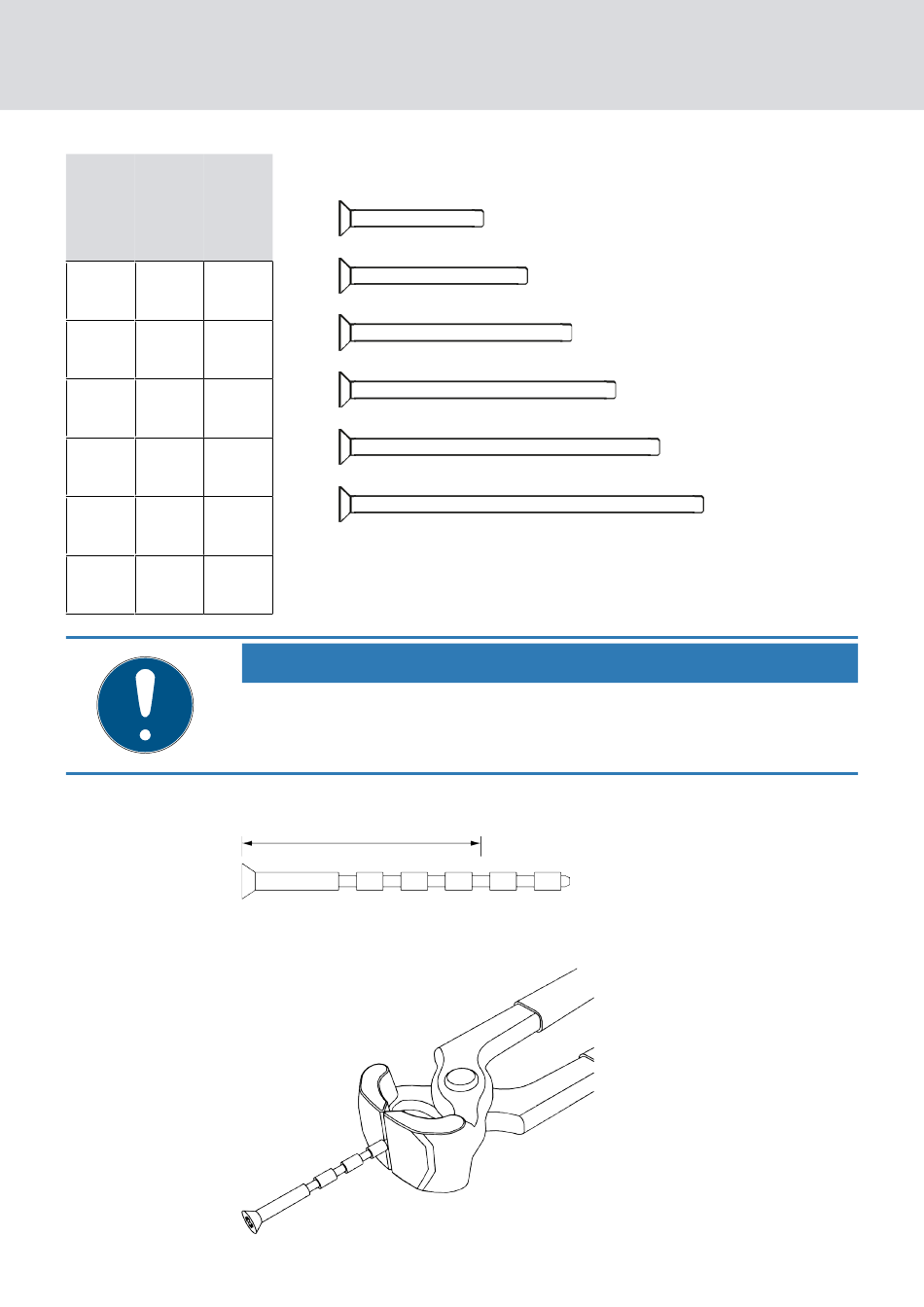

2. Identify the L1 screws you need.
M4x33
M4x43
M4x53
M4x63
M4x73
M4x83
NOTE
Strength class ≥ 8.8
The L1 screws for the SmartHandle AX in its PAS24 version must have a
strength class of at least 8.8.
3. Identify the cutting points on the L2 cut-to-size screws.
2× L2: door thickness + 8 mm (±3 mm)
4. Cut the L2 cut-to-size screws.
7.. Installation
