Remote Session
Control Panel

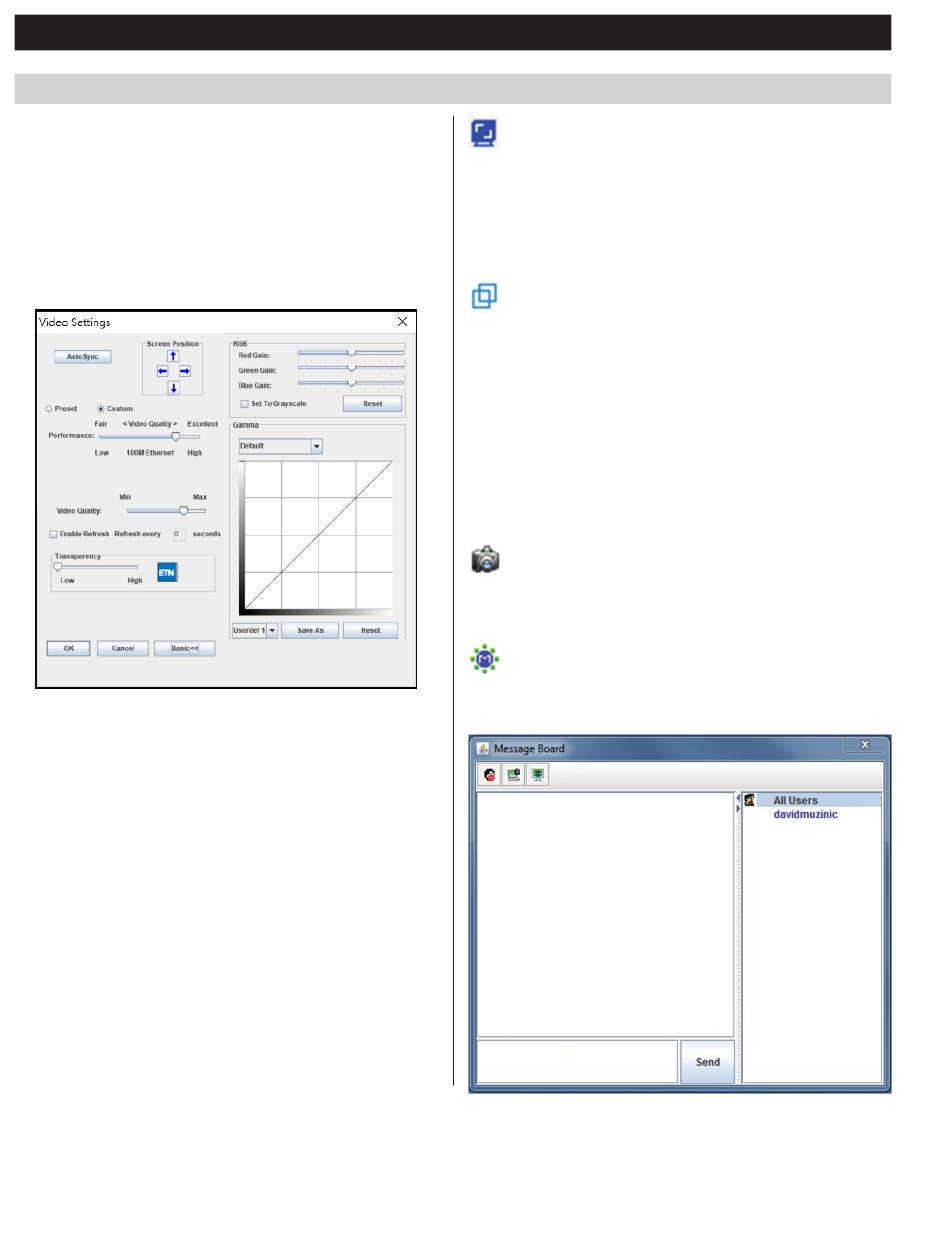

Gamma Adjustment
If it is necessary to correct the gamma level for the remote
computer, use the Gamma function in the Video Settings
screen. Under the Basic configuration, the gamma drop-down
list includes ten preset and four user defined gamma levels
to choose from. Simply select the desired setting from the
drop-down list. To set your own gamma levels, follow the
instructions below.
1. Click the Advanced button to bring up the gamma
adjustment settings.
2. Click and drag the diagonal line at as many points as you
wish to achieve the display output you desire. Click the Reset
button at any time to abandon changes and return to the
default gamma settings. Click the Cancel button to abandon
changes and close the Video Settings screen.
3. To save the new gamma settings, select a user defined
setting from the drop-down list and click the Save button.
Your gamma settings will be saved to the selected user
defined option.
66
Video Auto Sync – Click this icon to have the
vertical and horizontal offset values of the remote screen
automatically detected and synchronized with the local
screen.
Note: If the local and remote mouse pointers are out of sync,
performing a video auto sync will normally bring them back into
alignment. If the video auto sync fails to align the screen properly, use
the screen position arrows in the Video Settings screen to make manual
adjustments.
Screen Mode – Click this icon to toggle Full Screen mode
on/off. For those accessing the KVM via one of the Windows
clients, right-clicking this icon will toggle Keep Screen Size on/
off. When Keep Screen Size is enabled, turning on Full Screen
mode will not change the size of the remote screen. For
example, remote screens that are set to resolutions lower
than that of the local monitor will be displayed as a box inside
of the local display. When both Keep Screen Size and Full Screen
Mode are enabled, the remote screen will be displayed as a
box with a black background. If Keep Screen Size is disabled
and Full Screen Mode is enabled, the screen will be stretched
to fit the entire local monitor.
Note: Keep Screen Size can only be toggled on/off when using one of the
Windows clients. When using one of the Java clients, Keep Screen Size is
always enabled.
Snapshot – Clicking this icon will take a screenshot of
the remote computer and save it to the local computer. By
default, snapshots are saved to the local computer's desktop.
The file type, quality and location can be changed via the
Customize Control Panel page.
Message Board – The B064-Series KVM supports
multiple user logins, which can give rise to access conflicts.
To alleviate this problem, a message board feature has been
provided that allows users to communicate with each other.
