Installation manual 3A3718 Rev E
CCP2-H4X-_ pistol handles for use with
12 mm shafts
These instructions cover the installation
procedures specific to the catalog numbers shown
above. Please review the switch and switch
handle applications table on page 2 to ensure the
handle in this kit can be installed on your specific
Compact Circuit Protector switch application.
Effective February 2019
Supersedes January 2019

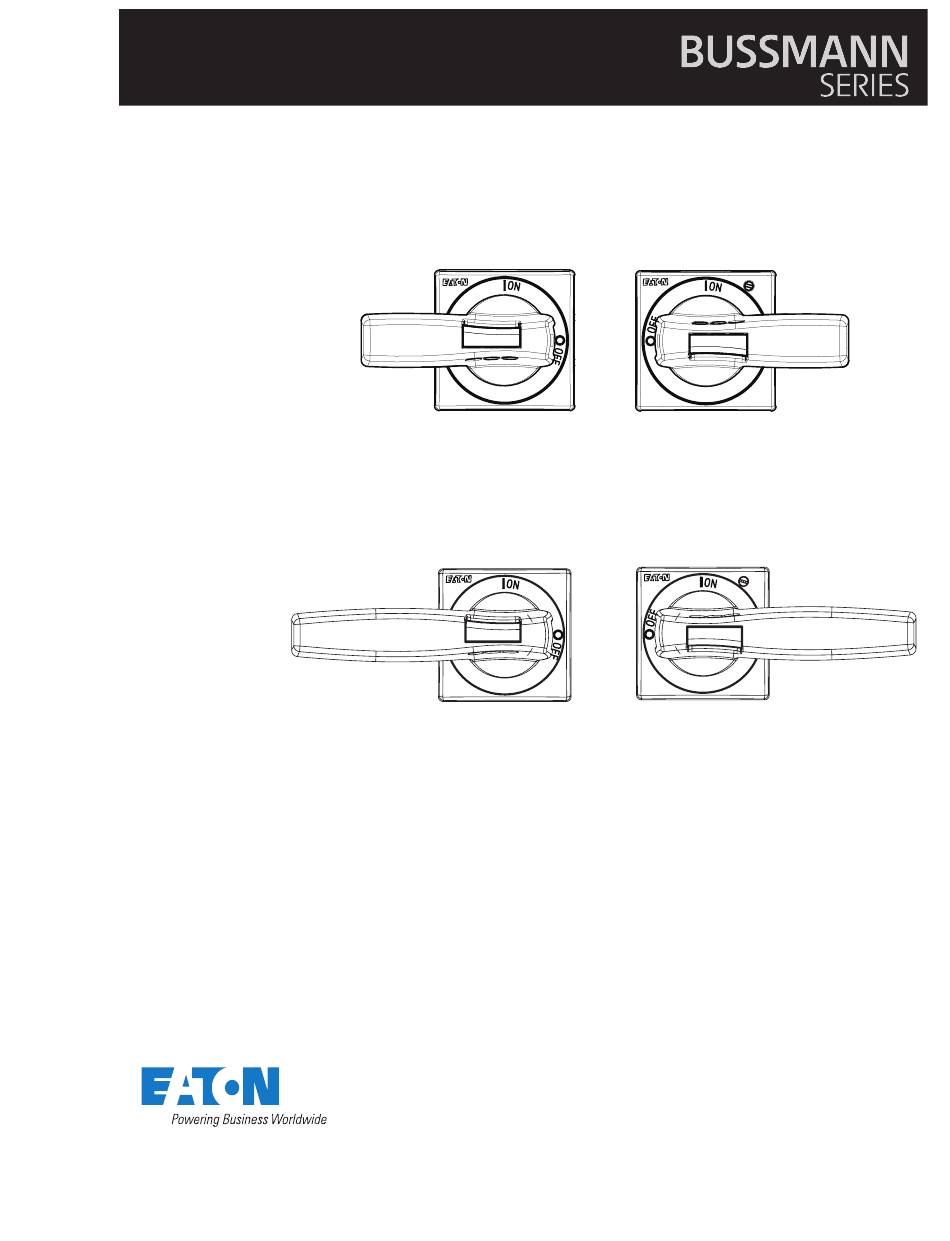

Short, counterclockwise pistol handle:
• CCP2-H4X-B3L
• CCP2-H4X-R3L
Long, counterclockwise pistol handle:
• CCP2-H4X-B4L
• CCP2-H4X-R4L
Short, clockwise pistol handle:
• CCP2-H4X-B3
• CCP2-H4X-R3
Long, clockwise pistol handle:
• CCP2-H4X-B4
• CCP2-H4X-R4
For complete installation, customers must supply
one each of the following.
A rotary operating mechanism (catalog
•
numbers):
CCP2-RM2 front rotary, 200 A switches
•
CCP2-RM4 front rotary, 400 A switches
•
CCP2-SM right or left side rotary, 200
•
and 400 A switches
A 12 mm square shaft (catalog numbers):
•
CCP2-SH2-225 (8.9"/225 mm long)
•
CCP2-SH2-425 (16.7"/425 mm long)
•
Advertisement
Related Manuals for Eaton Bussmann Series
Summary of Contents for Eaton Bussmann Series
- Page 1 Effective February 2019 Installation manual 3A3718 Rev E Supersedes January 2019 CCP2-H4X-_ pistol handles for use with 12 mm shafts Short, clockwise pistol handle: Short, counterclockwise pistol handle: • CCP2-H4X-B3 • CCP2-H4X-B3L • CCP2-H4X-R3 • CCP2-H4X-R3L Long, counterclockwise pistol handle: Long, clockwise pistol handle: •...
- Page 2 40 mm knockout punch or hole saw • 8 mm drill bit for metal (1) Handle backer plate with • removable depth gauge and (1) Switch handle Drill • shaft centering jig. Utility knife • Hacksaw • Metal file • Center punch • Hammer • Eaton.com/bussmannseries...
- Page 3 The information in this document does not relieve the user from exercising good judgment, nor from using sound safety practices. Note: Because Eaton has a policy of continuous product improvement, we reserve the right to change design specifications without notice. Should a conflict arise between the general...
- Page 4 Use a 2.5 mm Allen wrench to loosen the setscrew and remove the handle from the handle • base as shown. Using needle nose pliers, break off the retaining stop on the switch handle bezel as shown. • Place handle back onto the handle base and tighten the setscrew to 3 N•m (27 lb-in). • Eaton.com/bussmannseries...
- Page 5 Align backer plate horizontally and vertically with the door and mark the centers for the Note: To ensure proper fit, make a square cut on the shaft. four mounting holes as shown. Eaton.com/bussmannseries...
- Page 6 Step 11: Close and latch door. Check switch for proper operation in all modes. If not operating correctly, revisit these installation steps for remedial action. Step 9: Prepare the handle backer plate for mounting by removing the depth gauge as shown. Eaton.com/bussmannseries...
- Page 7 Using needle nose pliers, break off the retaining stop on the switch handle bezel as shown. • Either shaft catalog numbers: Place handle back onto the handle base and tighten the setscrew to 3 N•m (27 lb-in). • • CCP2-SH2-225 • CCP2-SH2-425 • Eaton.com/bussmannseries...
- Page 8 Note: To ensure proper fit, make a square cut on the shaft. the handle backer plate onto the shaft as shown and fully seat backer plate into the hole. Align backer plate horizontally and vertically with the side and mark the centers for the four mounting holes as shown. Eaton.com/bussmannseries...
- Page 9 If preventing access to the enclosure’s interior is desired Step 9: Prepare the handle backer plate for mounting by removing or required by the application, use a locking door latch or install a suitable hasp to accept a lock. the depth gauge as shown. Eaton.com/bussmannseries...
- Page 10 To lock the switch, simply rotate the handle to the desired switch state (ON or OFF), depress the left side switch locking mechanism and insert up to three 1/4” locks. Either shaft catalog numbers: • CCP2-SH2-225 • CCP2-SH2-425 • Eaton.com/bussmannseries...
- Page 11 Step 3: With switch shaft extending through the enclosure, place the handle backer plate onto the shaft as shown and fully seat backer plate into the hole. Align backer plate horizontally and vertically with the side and mark the centers for the four mounting holes as shown. Eaton.com/bussmannseries...
- Page 12 Eaton 1000 Eaton Boulevard Eaton and Bussmann are valuable trademarks Cleveland, OH 44122 of Eaton in the U.S. and other countries. You Eaton.com are not permitted to use the Eaton trademarks without prior written consent of Eaton. Bussmann Division...
