Owner's Manual
HDMI Switches with Remote
Control, 4K @ 60 Hz
Purchased product
may differ from image.
Este manual está disponible en español en la página de
Eaton: Tripplite.Eaton.com/support
Ce manuel est disponible en français sur le site Web de
Eaton : Tripplite.Eaton.com/support
Dieses Handbuch ist in deutscher Sprache auf der Eaton-
Website verfügbar: Tripplite.Eaton.com/support
Questo manuale è disponibile in italiano sul sito web di
Eaton: Tripplite.Eaton.com/support
Models:

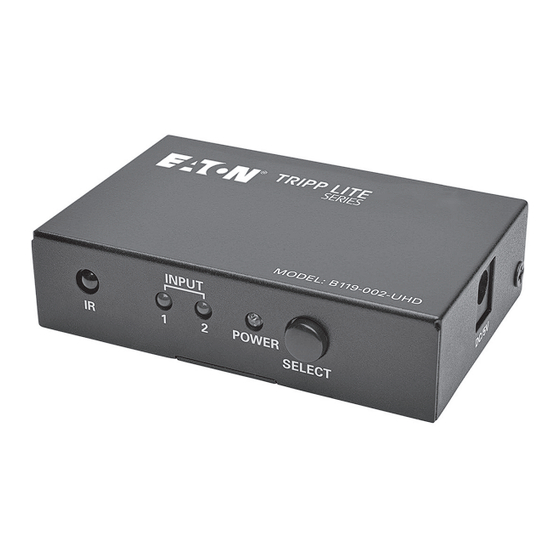

B119-002-UHD
B119-004-UHD
B119-005-UHD
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Eaton TRIPP LITE B119-002-UHD
Summary of Contents for Eaton TRIPP LITE B119-002-UHD
- Page 1 Eaton: Tripplite.Eaton.com/support Ce manuel est disponible en français sur le site Web de Eaton : Tripplite.Eaton.com/support Dieses Handbuch ist in deutscher Sprache auf der Eaton- Website verfügbar: Tripplite.Eaton.com/support Questo manuale è disponibile in italiano sul sito web di Eaton: Tripplite.Eaton.com/support...
-
Page 2: Product Features
Product Features • Switch between multiple HDMI source devices connected to a single HDMI port on a monitor • Switch devices via pushbutton or the included remote control • Intelligent Auto Switching functionality will automatically switch to the next powered- on device when the power to the current device is turned off* •... -
Page 3: Package Contents
Product Features • Plug and play; no software or drivers required *Auto switching will not work properly if you have a device that is in sleep mode. Devices must be powered off completely for auto switch to work properly. Package Contents •... -
Page 4: Installation
Installation 1. Make sure the power to all devices that you will be connecting is turned off. 2. Connect an HDMI source device to an Input port on the switch. Note: The length of the HDMI cable connecting the source to the switch must not exceed 16 ft. (5 m). - Page 5 Installation 5. Connect the external power supply to the switch, and then plug it into a Surge Protector, Uninterruptible Power Supply (UPS) or Power Distribution Unit (PDU). The red Power LED and green Input 1 LED will illuminate to indicate that power is being received.
-
Page 6: Troubleshooting
Troubleshooting If you are unable to get an acceptable image after following the installation instructions, try the troubleshooting tips below. 1. Is the external power supply that came with the product connected and plugged into a working power source? For the product to function properly, the switch must be connected to and receiving power from an external power supply. - Page 7 Troubleshooting If you are not able to get an acceptable image, try using a shorter cable, or lowering your source’s video resolution or color depth settings. 5. What type of cabling are you using? Inferior cabling can result in poor performance, so it is important that you use cables that can support the video resolution you are trying to obtain.
-
Page 8: Specifications
Specifications Model B119-002-UHD B119-004-UHD B119-005-UHD Connectors Input (x2) HDMI Female (x4) HDMI Female (x5) HDMI Female Output HDMI Female HDMI Female HDMI Female Video Maximum 4K @ 60 Hz 4K @ 60 Hz 4K @ 60 Hz Resolution (4:4:4) (4:4:4) (4:4:4) Color Depth 48-bit Deep Color... -
Page 9: Warranty
Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite. Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way. - Page 10 Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton, they are entitled to: • Send old equipment for recycling on a one-for- one, like-for-like basis (this varies depending on the country) •...
- Page 12 Eaton 1000 Eaton Boulevard Cleveland, OH 44122 933512 United States Eaton.com © 2023 Eaton Eaton is a registered All Rights Reserved trademark. Publication No. 23-10-094 / All trademarks are 93-3512_RevH property of their November 2023 respective owners.
