Introduction
Components

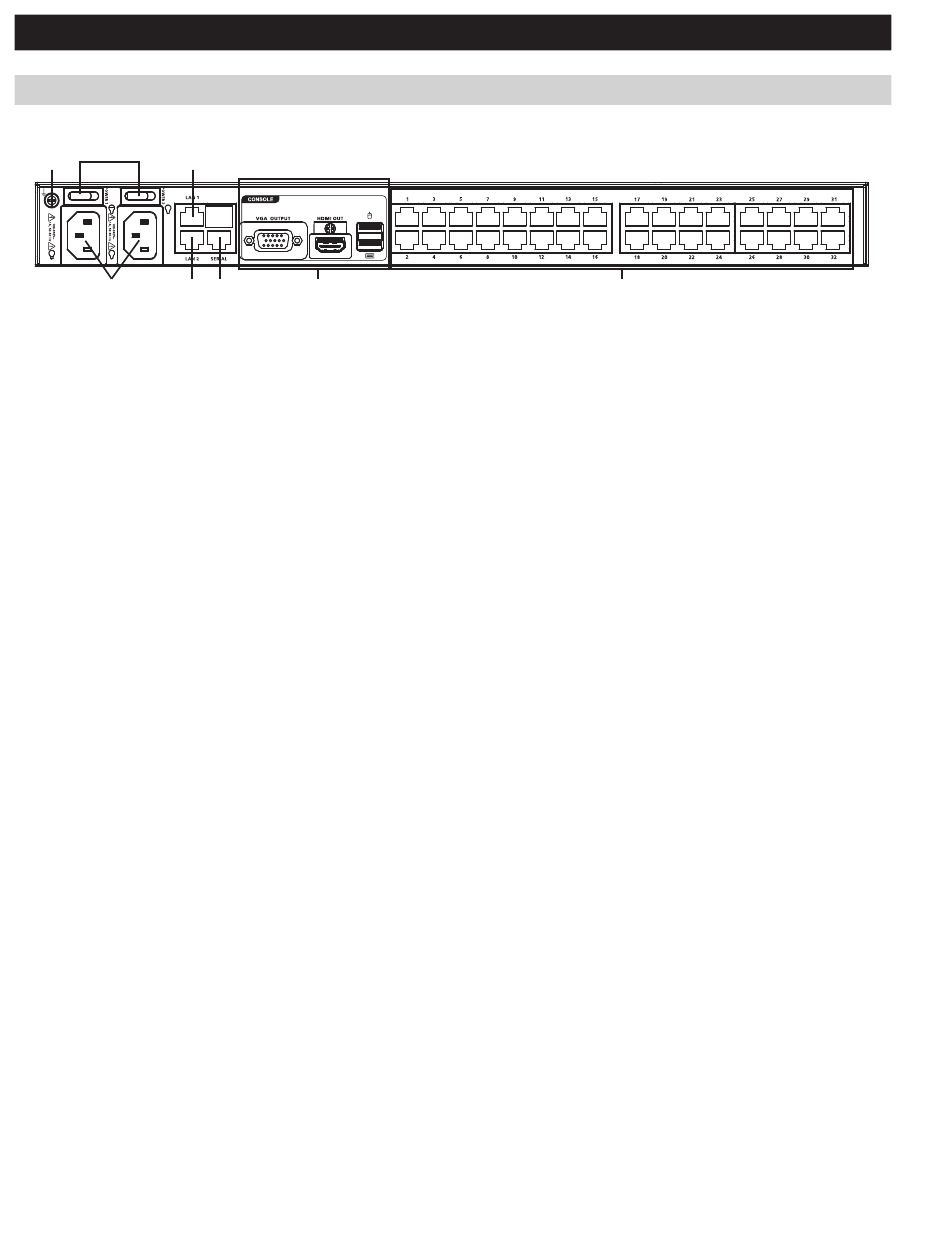

Rear View
5 5 2 2 3 3
1 1 4 4 6 6
No . Component
1
Power Sockets (C14)
2
Power Switches
3
Secondary LAN Port
(LAN 2)
4
Primary LAN Port
(LAN 1)
5
Grounding Terminal
6
Modem Port (Serial)
7
Local Console Ports
8
Server Ports
Note: The figure above shows the rear panel of a B064-032-04-IPG or B064-032-02-IPG. The B064-016-04-IPG and B064-016-02-IPG differ in that it
only has a single block of 16 KVM ports.
6
7 7
Description
The two C14 power sockets are located here. Connect the included power cords (C13 to C14) from
here to an appropriate power source.
Note: To help protect your system from sudden, transient increases and decreases in electrical power, it is
recommended that you plug your devices into a Tripp Lite surge protector, line conditioner or uninterruptible power
supply (UPS).
The On/Off switches for the two power supplies are here
The cable that connects the KVM switch to the backup network plugs in here.
The cable that connects the KVM switch to the primary network plugs in here.
Connect the included grounding wire to this terminal to ground the KVM switch.
An optional dial-in connection is available for use in the event the KVM switch is not available over
the Primary or Secondary networks
This area features VGA and HDMI ports for the connection of either a VGA or HDMI monitor, as well
as two USB ports for the connection of a keyboard and mouse.
Note: The B064-008-01-IPG and B064-016-01-IPG will not feature a HDMI port but instead two PS/2 ports for
connection of mouse and keyboard.
Cat5e/6 cable connects between these ports and the SIUs to connect computer/servers to the KVM
switch.
