Configuration and Connections
4.4.2 1CN I/O Connector Terminals
4.4.2 1CN I/O Connector Terminals
III Terminal Layout
2
SG-BK
Signal ground
for brake out
1
/BK
Brake interlock
signal output
15
14
—
_
Note 1. Do not connect any terminals marked with " -
2. Do not use vacant pins for relay or other purposes.

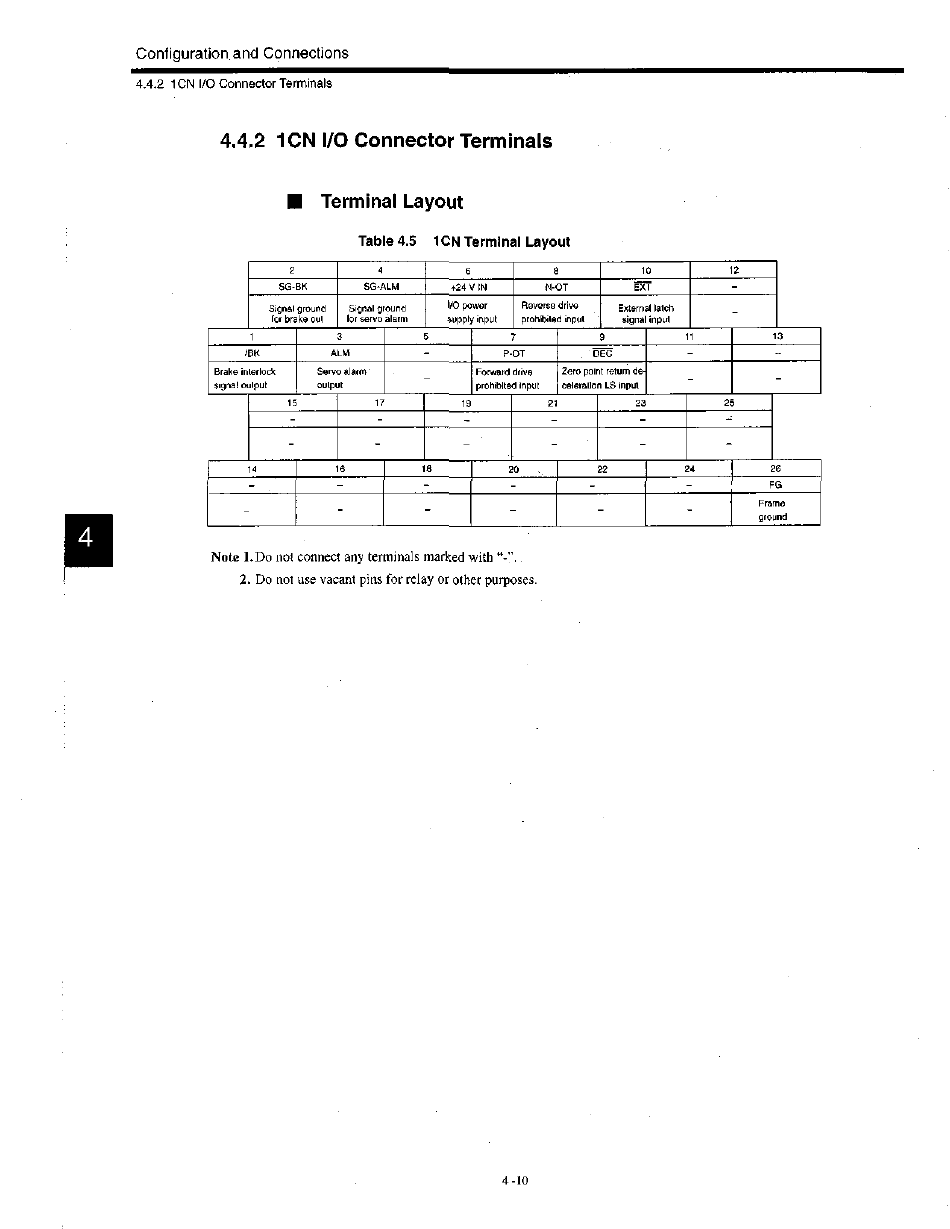

Table 4.5 1 C N Terminal Layout
4
6
SG-ALM
+24 V IN
I/O power
Signal ground
for servo alarm
supply input
3
5
ALM
—
Forward drive
Servo alarm
output
prohibited input
17
19
16
18
—
—
8
10
N-OT
EXT
Reverse drive
External latch
prohibited input
signal input
7
9
P-OT
DEC
Zero point return de-
celeration LS input
21
23
20
22
—
—
—
4 -10
12
1
13
—
—
—
25
24
26
—
FG
_
Frame
ground
