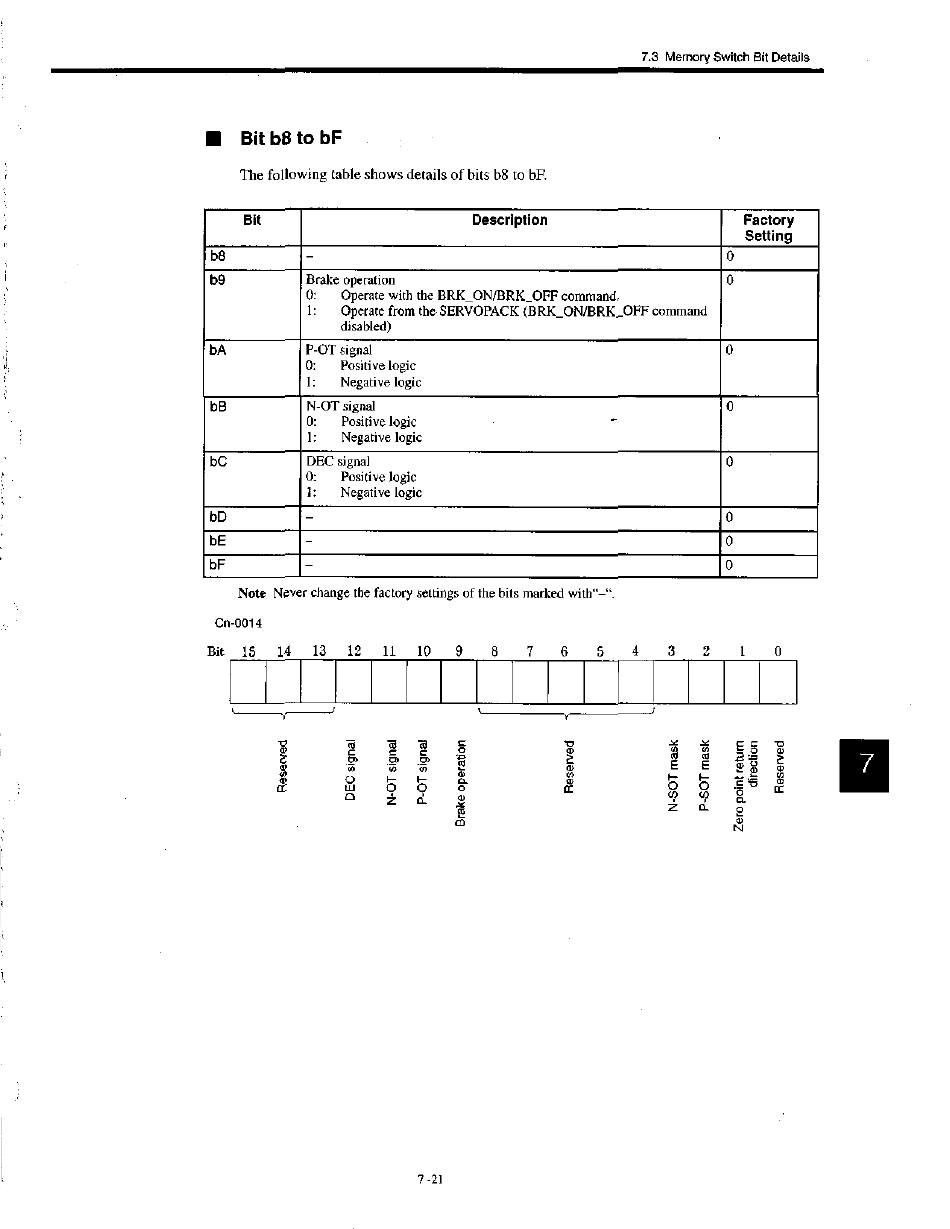

• B i t b8 to bF
The following table shows details of bits b8 to bF.
Bit
b8 —
b9 Brake operation
0: O p e r a t e with the BRK_ON/BRK_OFF command.
1: O p e r a t e from the SERVOPACK (BRK_ON/BRK_OFF command
disabled)
bA P-OT signal
0: P o s i t i v e logic
1: N e g a t i v e logic
bB N-OT signal
0: P o s i t i v e logic
1: N e g a t i v e logic
bC DEC signal
0: P o s i t i v e logic
1: N e g a t i v e logic
bD —
bE
bF —
Note Ncvcr change the factory settings of the bits marked with"—".
