Chapter 3: System Setup

Installing a Wi-Fi or LTE Module (Mini-PCIe)

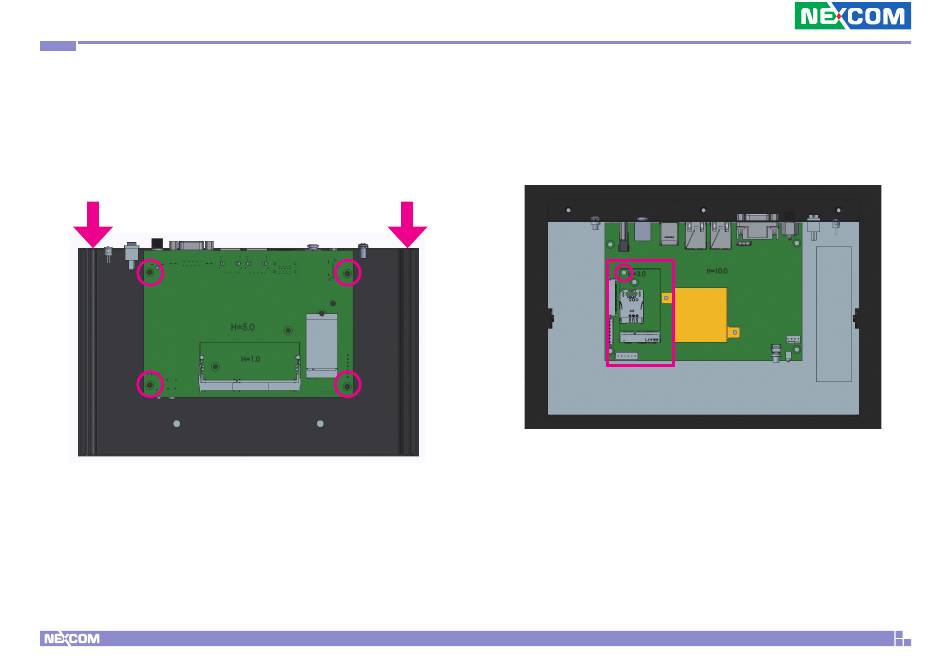

1. With the top cover removed, unscrew the 4 screws on the mainboard
and the 2 screws on the IO bracket, then remove the mainboard from
the chassis.
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
2. Locate the mini-PCIe slot on the mainboard and install the Wi-Fi or LTE
module into the slot. Then secure the module with a screw.
