REMOTE CONTROL

Remote control (CI-V) information

DCI-V data setting

To control the receiver, first set the following items on the MENU screen�
LRefer to the Advanced manual for each menu item's details�
[MENU] > SET > Function > CI-V
The Icom Communications Interface V (CI-V) is used for remote control�
Set its CI-V address, CI-V Baud Rate (SP Jack)*, and CI-V transceive function*�
* You need to select the baud rate in "CI-V Baud Rate (SP Jack)," when you remotely control the
receiver through the [
When "CI-V Transceive" is set to "ON," the same change as your receiver is automatically set on other
connected transceivers or receivers, and vice versa�
[MENU] > SET > Function > USB Connect
Before connecting the USB cable to the PC, set "USB Connect" to "Serialport" (default)�
[MENU] > SET > Function > CI-V > CI-V Echo Back (USB Jack)
Before connecting the USB cable to the PC, set "CI-V Echo Back (USB Jack)" to "ON" or "OFF�"

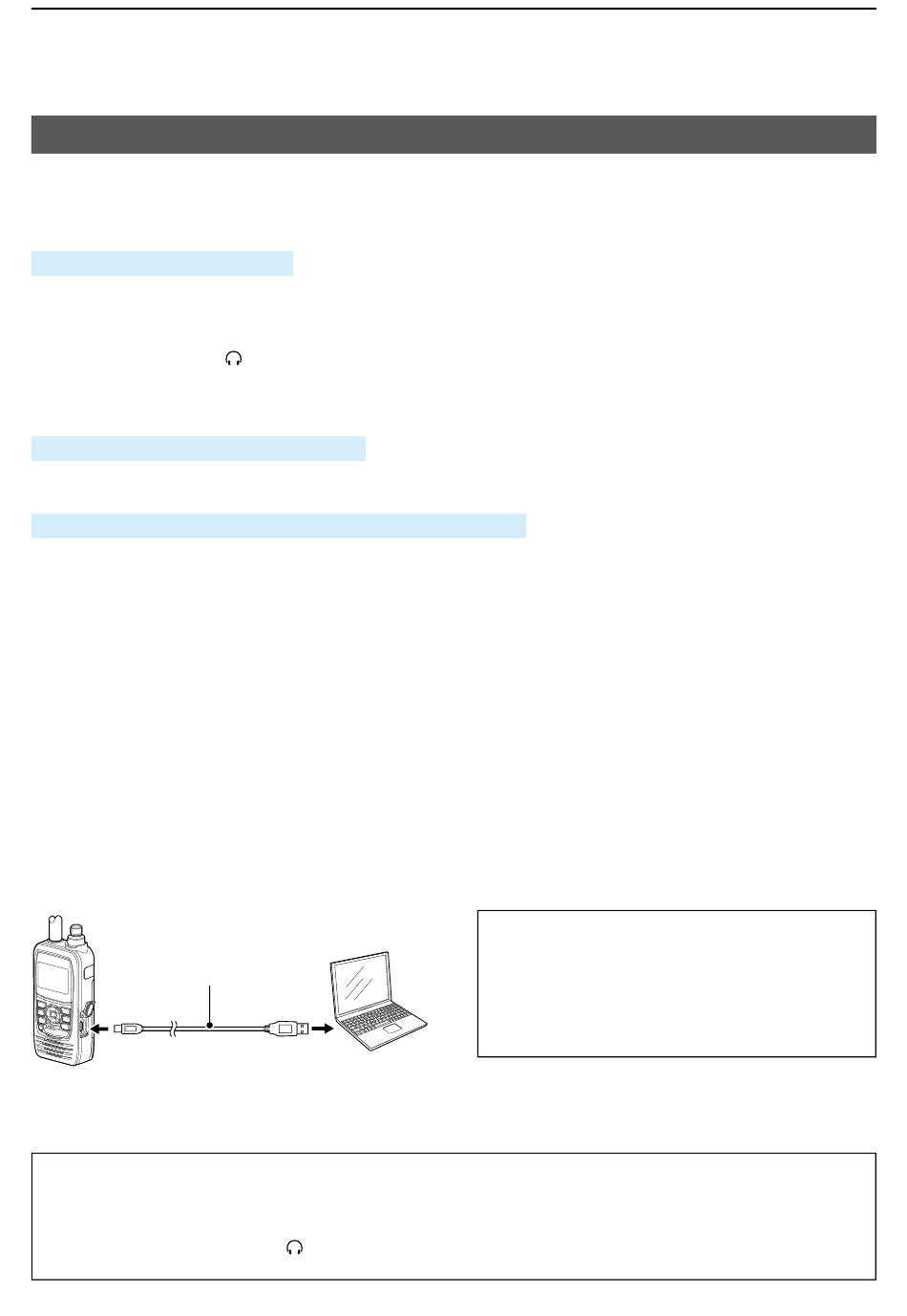

DConnecting to a PC

The receiver's operating frequency and mode can be remotely controlled using a PC�
The Icom Communications Interface V (CI-V) controls the receiver�
Connect the receiver to a PC with a USB cable (User supplied)�
LUse a proper cable according to your PC's USB port and make the connection as short as possible�
The receiver may not be recognized by the controller, depending on the length of the USB cable�
LWhen connecting to a USB port on your PC with the USB driver installed, the USB is named "IC-R15
Serial Port�"
IC-R15
USB cable
(User supplied)
Type-C
To the [USB] port
NOTE:
When you remotely control the receiver, use a CT-17
supplied) to connect the PC�
The receiver can be connected through an optional CT-17 to a PC equipped with an RS-232C port�
LRemote operation through the [
Ask your nearest Icom Dealer or Service Center�
] jack�
PC
To a USB port
Type-A or
Type-C
] jack is not guaranteed�
To use the USB cable between the receiver and a
PC, you must first install a USB driver�
The latest USB driver and installation guide can be
downloaded from the Icom website�
Carefully read the guide, before installing the driver�
https://www�icomjapan�com/support/
ci-v level converter
(discontinued product) or cable (User
