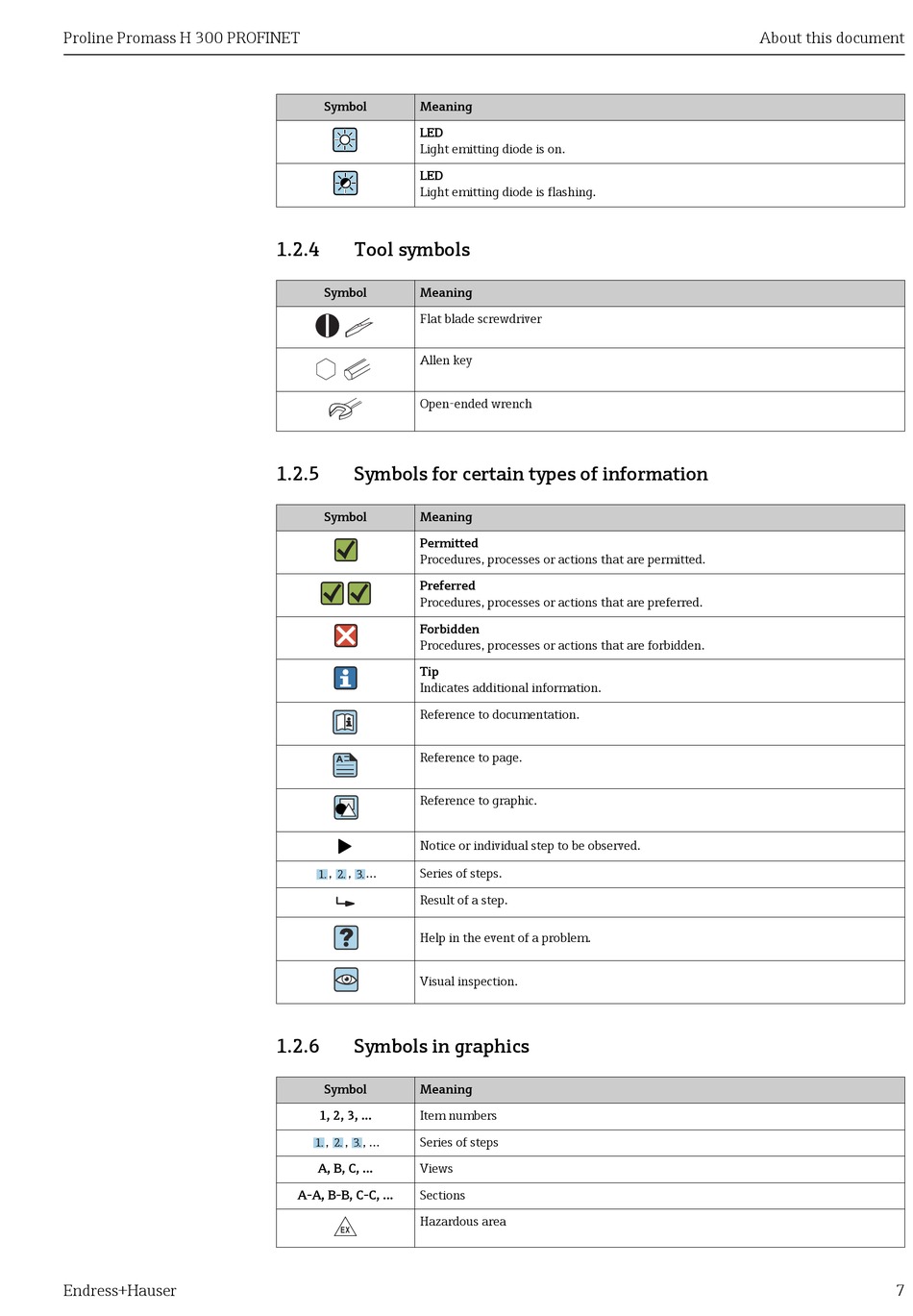

Tool Symbols; Symbols For Certain Types Of Information; Symbols In Graphics - Endress+Hauser Proline Promass H 300 PROFINET Operating Instructions Manual

Proline Promass H 300 PROFINET
Endress+Hauser
Symbol Meaning
LED
Light emitting diode is on.
LED
Light emitting diode is flashing.
1.2.4

Tool symbols

Symbol Meaning
Flat blade screwdriver
Allen key
Open-ended wrench
1.2.5

Symbols for certain types of information

Symbol Meaning
Permitted
Procedures, processes or actions that are permitted.
Preferred
Procedures, processes or actions that are preferred.
Forbidden
Procedures, processes or actions that are forbidden.
Tip
Indicates additional information.
Reference to documentation.
Reference to page.
A
Reference to graphic.
Notice or individual step to be observed.
, , ... Series of steps.
1. 2. 3.
Result of a step.
Help in the event of a problem.
Visual inspection.
1.2.6

Symbols in graphics

Symbol Meaning
1, 2, 3, ... Item numbers
, , , ... Series of steps
1. 2. 3.
A, B, C, ... Views
A-A, B-B, C-C, ... Sections
Hazardous area
-
About this document
7
