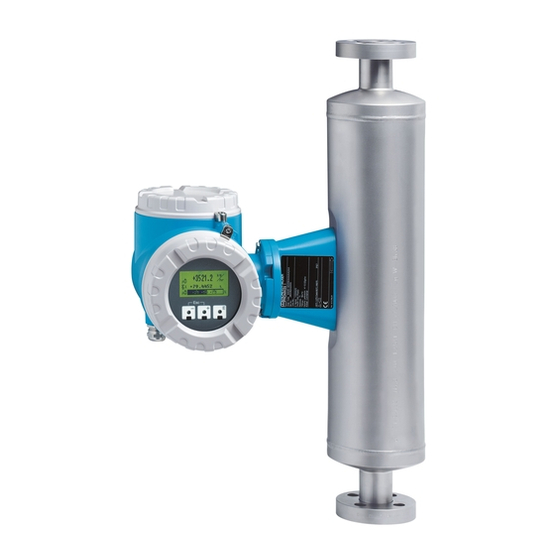

Coriolis mass flow measuring system
Hide thumbs Also See for Proline Promass 83:
Table of Contents

Advertisement

Quick Links

Download this manual

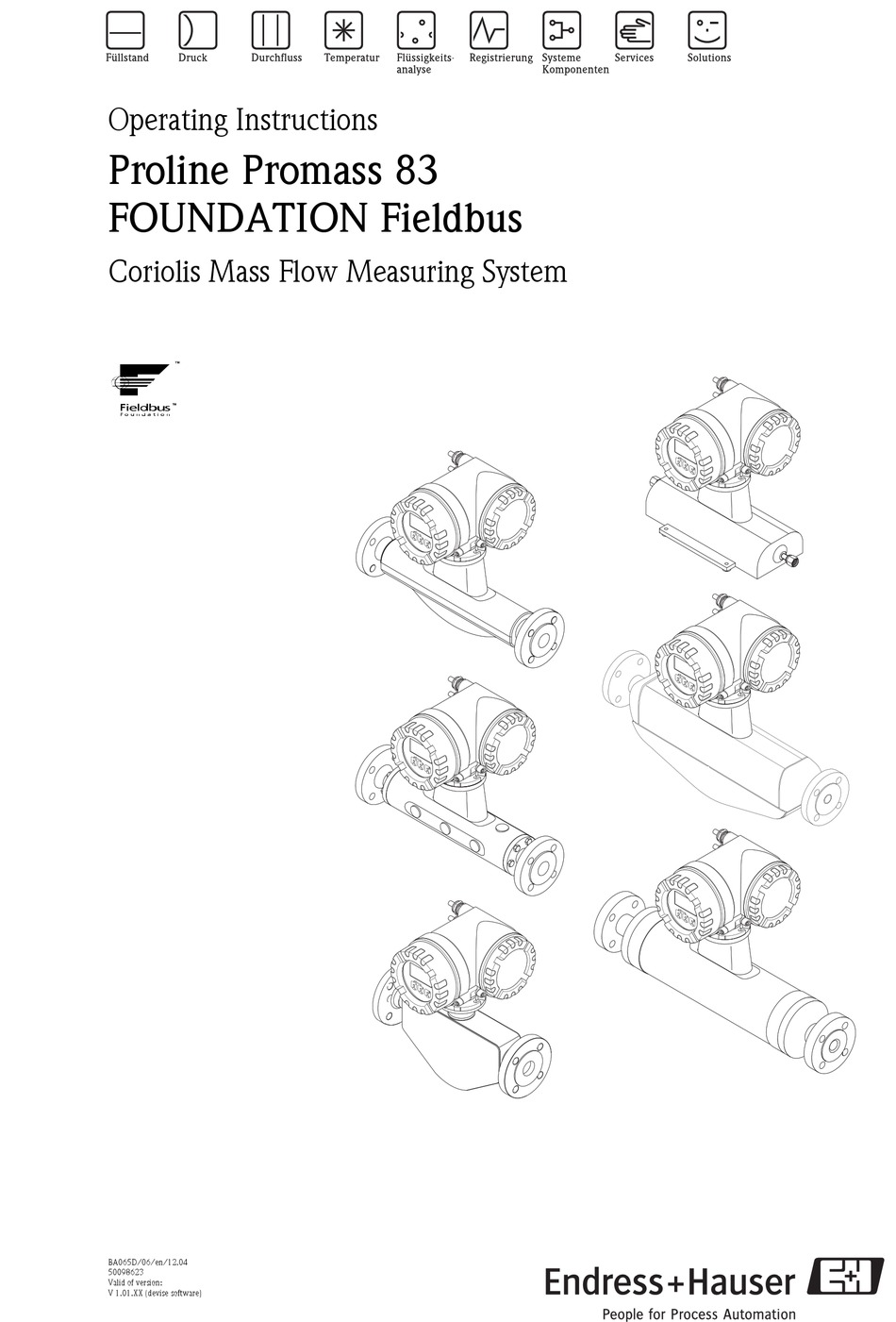

Operating Instructions
Proline Promass 83
FOUNDATION Fieldbus
Coriolis Mass Flow Measuring System
9
BA065D/06/en/12.04
50098623
Valid of version:
V 1.01.XX (devise software)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Proline Promass 83 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Endress+Hauser Proline Promass 83

Summary of Contents for Endress+Hauser Proline Promass 83

  • Page 1 Operating Instructions Proline Promass 83 FOUNDATION Fieldbus Coriolis Mass Flow Measuring System BA065D/06/en/12.04 50098623 Valid of version: V 1.01.XX (devise software)
  • Page 2 Brief operating instructions Proline Promass 83 FOUNDATION Fieldbus Brief operating instructions These brief operating instructions show you how to configure your measuring device quickly and easily: Safety instructions Page 7 ▼ Installation Page 13 ▼ Wiring Page 25 ▼ Operation at a glance Page 35 ▼...
  • Page 3 Proline Promass 83 FOUNDATION Fieldbus QUICK SETUP “Commissioning” QUICK SETUP “Commissioning” Note! More detailed information on running Quick Setup menus, especially for devices without a local display, can be found on Page 83 ff. 1002 Quick Setup ENDRESS+HAUSER Commission 2000...
  • Page 4 QUICK SETUP “Commissioning” Proline Promass 83 FOUNDATION Fieldbus Note! • The display returns to the cell QUICK SETUP COMMISSION (1002) if you press the ESC key combination ( OS ) during parameter interrogation. The stored parameters remain valid. • The “Commissioning” Quick Setup must be carried out before one of the Quick Setups explained below is run.

  • Page 5: Table Of Contents

    Proline Promass 83 FOUNDATION Fieldbus Table of contents Table of contents Safety instructions ....7 FOUNDATION Fieldbus technology ... . 36 Hardware configuration .
  • Page 6 Table of contents Proline Promass 83 FOUNDATION Fieldbus 10.1.10Mechanical construction ... . . 108 10.1.11Human interface ....111 10.1.12Certificates and approvals .

  • Page 7: Safety Instructions

    Strict compliance with the instructions in these Operating Instructions is mandatory. • Endress+Hauser will be happy to assist in clarifying the chemical resistance properties of parts wetted by special fluids, including fluids used for cleaning. However the user is responsible for the choice of fluid wetted materials as regards to their in-process resistance to corrosion.

  • Page 8: Return

    Endress+Hauser: • Always enclose a duly completed “Declaration of contamination” form. Only then can Endress+Hauser transport, examine and repair a returned device. • Enclose special handling instructions if necessary, for example a safety data sheet as per EN 91/155/EEC.

  • Page 9: Identification

    Proline Promass 83 FOUNDATION Fieldbus 2 Identification Identification Device designation The “Promass 83” flow measuring system consists of the following components: • Promass 83 transmitter • Promass F, Promass M, Promass E, Promass A, Promass H or Promass I sensor In the compact version, transmitter and sensor form a single mechanical unit;...

  • Page 10: Nameplate Of The Sensor

    2 Identification Proline Promass 83 FOUNDATION Fieldbus 2.1.2 Nameplate of the sensor ENDRESS+HAUSER 4153 Reinach PROMASS F Switzerland 8XF25-XXXXXXXXXXXX Order Code: 2003 12345678901 Ser.No.: ABCDEFGHJKLMNPQRST TAG No.: 2.5100 / -11 DN25 / 1” K-factor: Size: DN25 EN (DIN) PN100 1.4539 / 904L Materials: 200°C / 392°F...

  • Page 11: Nameplate For Connections

    Laboratory Procedures” and with the EMC requirements of EN 61326/A1. The measuring system described in these Operating Instructions thus complies with the statutory requirements of the EC Directives. Endress+Hauser confirms successful testing of the device by affi- xing to it the CE mark.

  • Page 12: Fieldbus Foundation Certification

    Registered trademark of Swagelok & Co., Solon, USA FOUNDATION™ Fieldbus Registered trademark of Fieldbus Foundation, Austin, USA ® ® ® ® HistoROM™, S-DAT , T-DAT™, F-CHIP , ToF Tool - Fieldtool Package, Fieldcheck ® Applicator Registered or registration-pending trademarks of Endress+Hauser Flowtec AG, Reinach, CH Endress+Hauser...

  • Page 13: Installation

    Proline Promass 83 FOUNDATION Fieldbus 3 Installation Installation Incoming acceptance, transport and storage 3.1.1 Incoming acceptance On receipt of the goods, check the following points: • Check the packaging and the contents for damage. • Check the shipment, make sure nothing is missing and that the scope of supply matches your order.

  • Page 14: Storage

    3 Installation Proline Promass 83 FOUNDATION Fieldbus 3.1.3 Storage Note the following points: • Pack the measuring device in such a way as to protect it reliably against impact for storage (and transportation). The original packaging provides optimum protection. • The permissible storage temperature is –40...+80 °C (preferably +20 °C).
  • Page 15 Proline Promass 83 FOUNDATION Fieldbus 3 Installation The proposed configuration in Fig. 6, however, permits installation in a vertical pipeline. Pipe restrictors or the use of an orifice with a smaller cross-section than the nominal diameter prevent the sensor from running empty during measurement.

  • Page 16: Orientation

    3 Installation Proline Promass 83 FOUNDATION Fieldbus 3.2.3 Orientation Make sure that the direction of the arrow on the nameplate of the sensor matches the direction of flow (direction in which the fluid flows through the pipe). Orientation Promass A Vertical: Recommended orientation with upward direction of flow.
  • Page 17 Proline Promass 83 FOUNDATION Fieldbus 3 Installation Orientation Promass F, M, E, H, I Make sure that the direction of the arrow on the nameplate of the sensor matches the direction of flow (direction in which the fluid flows through the pipe).

  • Page 18: Heating

    – Relative magnetic permeability µ ≥ 300 – Plate thickness d ≥ 0.35 mm • Information on permissible temperature ranges → Page 99. Special heating jackets which can be ordered as accessories from Endress+Hauser are available for the sensors. Endress+Hauser...

  • Page 19: Thermal Insulation

    Proline Promass 83 FOUNDATION Fieldbus 3 Installation 3.2.5 Thermal insulation Some fluids require suitable measures to avoid loss of heat at the sensor. A wide range of materials can be used to provide the required thermal insulation. max. 60 max. 60 F06-83FHTxxx-06-00-xx-xx-001 Fig.

  • Page 20: Installation Instructions

    3 Installation Proline Promass 83 FOUNDATION Fieldbus Installation instructions 3.3.1 Turning the transmitter housing Turning the aluminum field housing Warning! The turning mechanism in devices with EEx d/de or FM/CSA Cl. I Div. 1 classification is not the same as that described here. The procedure for turning these housings is described in the Ex-specific documentation.

  • Page 21: Installing The Wall-Mount

    Without mounting set: • Mounted directly on the wall With mounting set: This set can be ordered separately from Endress+Hauser as an accessory (see Page 67) and it allows for a number of installation options: • Wall mounting • Pipe mounting •...
  • Page 22 3 Installation Proline Promass 83 FOUNDATION Fieldbus Installation in control panel Prepare the opening in the panel (Fig. 13). Slide the housing into the opening in the panel from the front. Screw the fasteners onto the wall-mount housing. Place the threaded rods in the fasteners and screw them down until the housing is seated tightly against the panel.

  • Page 23: Turning The Local Display

    Proline Promass 83 FOUNDATION Fieldbus 3 Installation 3.3.3 Turning the local display Remove the cover of the electronics compartment. Press the side latches on the display module and remove it from the electronics compartment cover plate. Rotate the display to the desired position (max. 4 x 45 ° in both directions), and reset it onto the electronics compartment cover plate.
  • Page 24 3 Installation Proline Promass 83 FOUNDATION Fieldbus Endress+Hauser...

  • Page 25: Wiring

    4 Wiring Wiring Warning! When connecting Ex-certified devices, see the notes and diagrams in the Ex-specific supplement to these Operating Instructions. Please do not hesitate to contact your Endress+Hauser representative if you have any questions. Cable specifications for fieldbus Cable type Twin-core cable is recommended for connecting the flowmeter to the FOUNDATION Fieldbus H1.
  • Page 26 4 Wiring Proline Promass 83 FOUNDATION Fieldbus Maximum overall cable length The maximum network expansion depends on the type of ignition protection and the cable specifi- cations. The overall cable length is made up of the length of the main cable and the length of all spurs (>1 m).

  • Page 27: Connecting The Remote Version

    Proline Promass 83 FOUNDATION Fieldbus 4 Wiring Connecting the remote version 4.2.1 Connecting the sensor Warning! • Risk of electric shock. Switch off the power supply before opening the device. Do not install or wire the device while it is connected to the power supply. Failure to comply with this precaution can result in irreparable damage to the electronics.

  • Page 28: Connecting The Measuring Unit

    4 Wiring Proline Promass 83 FOUNDATION Fieldbus Connecting the measuring unit Field instruments can be connected to the FOUNDATION Fieldbus in two ways: • Connection via conventional cable gland → Section 4.3.1 • Connection using prefabricated fieldbus connector (option) → Section 4.3.3 4.3.1...
  • Page 29 Proline Promass 83 FOUNDATION Fieldbus 4 Wiring FF– N (L-) L1 (L+) F06-xxxFFxxx-04-06-xx-xx-000 Fig. 17: Connecting the transmitter (aluminium field housing). Cable cross section: max. 2.5 mm Cable for power supply: 85...260 V AC, 20...55 V AC, 16...62 V DC Terminal No.

  • Page 30: Terminal Assignment

    4 Wiring Proline Promass 83 FOUNDATION Fieldbus N (L-) L1 (L+) FF+ FF– 20 21 22 23 24 25 26 27 F06-xxxFFxxx-04-03-xx-xx-000 Fig. 19: Connecting the transmitter (wall-mount housing). Cable cross section: max. 2.5 mm Cable for power supply: 85...260 V AC, 20...55 V AC, 16...62 V DC Terminal No.

  • Page 31: Fieldbus Connector

    4-channel or 8-channel junction boxes. The Promass 83 can therefore be supplied with a ready-mounted fieldbus connector. Fieldbus con- nectors for retrofitting can be ordered from Endress+Hauser as a spare part (see Page 83). 26.5 mm (1.040")

  • Page 32: Degree Of Protection

    4 Wiring Proline Promass 83 FOUNDATION Fieldbus Degree of protection The devices fulfill all the requirements for IP 67. Compliance with the following points is mandatory following installation in the field or servicing, in order to ensure that IP 67 protection is maintained: •...

  • Page 33: Post Connection Check

    Proline Promass 83 FOUNDATION Fieldbus 4 Wiring Post connection check Perform the following checks after completing electrical installation of the measuring device: Device condition and specifications Notes − Are cables or the device damaged (visual inspection)? Electrical connection of meter...
  • Page 34 4 Wiring Proline Promass 83 FOUNDATION Fieldbus Endress+Hauser...

  • Page 35: Operation

    Proline Promass 83 FOUNDATION Fieldbus 5 Operation Operation Operation at a glance You have a number of options for configuring and commissioning the flowmeter (Fig. 22): 1. Configuration programs (FOUNDATION Fieldbus) → Page 36 FF functions and device-specific parameters are configured primarily via the fieldbus interface. You can obtain special configuration and operating programs from the various manufacturers for these purposes.

  • Page 36: Operating With The Ff Configuration Programs

    • Network configuration → CFF file (Common File Format: *.cff) You can obtain these files as follows: • Free of charge via the Internet → www.endress.com / www.endress.de • From Endress+Hauser stating the order number (No. 50097199) • Via the Fieldbus Foundation Organisation → www.fieldbus.org Note! Ensure you use the correct system files for linking the field devices into the host system.

  • Page 37: Hardware Configuration

    Proline Promass 83 FOUNDATION Fieldbus 5 Operation Hardware configuration Two jumpers on the I/O board provide the means of activating or deactivating hardware write pro- tection and simulation mode. Warning! • Risk of electric shock. Exposed components carry dangerous voltages. Make sure that the power supply is switched off before you remove the cover of the electronics compartment.

  • Page 38: Operating With The Local Display

    5 Operation Proline Promass 83 FOUNDATION Fieldbus Operating with the local display 5.5.1 Display and operating elements The local display enables you to read all important parameters directly at the measuring point and configure the device using the function matrix.
  • Page 39 Proline Promass 83 FOUNDATION Fieldbus 5 Operation Readings displayed The display area consists of three lines in all; this is where measured values are displayed, and/or status variables (direction of flow, bar graph, etc.). You can change the assignment of display lines to different variables to suit your needs and preferences (→...
  • Page 40 5 Operation Proline Promass 83 FOUNDATION Fieldbus Icons The icons which appear in the field on the left make it easier to read and recognise measured varia- bles, device status, and error messages. Icon Meaning Icon Meaning System error Process error...

  • Page 41: Brief Operating Instructions To The Function Matrix

    Proline Promass 83 FOUNDATION Fieldbus 5 Operation 5.5.2 Brief operating instructions to the function matrix Note! • See the general notes on Page 42. • Function descriptions → see the “Description of Device Functions” manual HOME position → F → Enter the function matrix Select a block (e.g.
  • Page 42 • If programming is disabled and the OS keys are pressed in any function, a prompt for the code automatically appears on the display. • If “0” is entered as the customer's code, programming is always enabled. • The Endress+Hauser service organisation can be of assistance if you mislay your personal code. " Caution! •...

  • Page 43: Display Of Error Messages

    Proline Promass 83 FOUNDATION Fieldbus 5 Operation 5.5.3 Display of error messages Type of error Errors that occur during commissioning or measuring are displayed immediately on the local dis- play. If two or more system or process errors occur, the error with the highest priority is the one shown on the display.

  • Page 44: Current Device Description Files

    Operation via the service protocol: Operating programm Sources for obtaining updates: ToF Tool – Fieldtool Package • www.tof-fieldtool.endress.com • Update CD-ROM (Endress+Hauser order number: 50099820) Tester/simulator: Sources for obtaining updates: Fieldcheck • Update by means of ToF Tool - Fieldtool Package via Fieldflash module...

  • Page 45: Commissioning

    Proline Promass 83 FOUNDATION Fieldbus 6 Commissioning Commissioning Function check Make sure that all final checks have been completed before you start up your measuring point: • Checklist for “Post installation check” → Page 23 • Checklist for “Post connection check” → Page 33 Note! •...

  • Page 46: Commissioning

    6 Commissioning Proline Promass 83 FOUNDATION Fieldbus Commissioning Note the following points: • The files required for commissioning and network configuration can be obtained as described on Page 35. • The device is identified by the FOUNDATION Fieldbus in the host or configuration system via the device ID (DEVICE_ID).
  • Page 47 Proline Promass 83 FOUNDATION Fieldbus 6 Commissioning Identify the field device using the DEVICE_ID that you noted down and assign the desired field device tag name (PD_TAG) to the fieldbus device in question. Factory setting: E+H_PROMASS_83_xxxxxxxxxxx F06-83xFFxxx-20-xx-xx-xx-000 Fig. 28: Screen display in the configuration program “NI-FBUS Configurator” (National Instruments) after connecting Configuration of the “Resource Block”...
  • Page 48 6 Commissioning Proline Promass 83 FOUNDATION Fieldbus 12. Now configure all the device-specific parameters for flow measurement. Note! – Note that changes to the device parameters can only be made after entering a valid access code in the parameter “Un-/Locking - Access Code”.
  • Page 49 Proline Promass 83 FOUNDATION Fieldbus 6 Commissioning 19. In the L_TYPE parameter, select the mode of linearisation for the input variable → see the “Description of Device Functions” manual. " Caution! Note that with the type of linearisation “Direct” the configuration of the parameter group OUT_SCALE must agree with the configuration of the parameter group XD_SCALE.
  • Page 50 6 Commissioning Proline Promass 83 FOUNDATION Fieldbus 22. System configuration/connection of function blocks (Fig. 29): A concluding “overall system configuration” is essential so that the operating mode of the Ana- log Input Function Block can be set to AUTO and so that the field device is integrated into the system application.

  • Page 51: Zero Point Adjustment

    • If the fluid is very difficult to measure (e.g. containing entrained solids or gas) it may prove impos- sible to obtain a stable zero point despite repeated zero point adjustments. In instances of this nature, please contact your Endress+Hauser service center. • You can view the currently valid zero point value using the following function: –...
  • Page 52 6 Commissioning Proline Promass 83 FOUNDATION Fieldbus Performing zeropoint adjustment (using a FF configuration program Operate the system until operating conditions have settled. Stop the flow (v = 0 m/s). Check the shut-off valves for leaks. Check that operating pressure is correct.

  • Page 53: Density Adjustment

    Proline Promass 83 FOUNDATION Fieldbus 6 Commissioning 6.2.3 Density adjustment It is always advisable to perform density adjustment when optimum measuring accuracy is required for calculating density dependent values. 1-point density adjustment (with one fluid): This type of density adjustment is necessary under the following circumstances: •...
  • Page 54 6 Commissioning Proline Promass 83 FOUNDATION Fieldbus Performing 1-point density adjustment (using the local display " Caution! • On-site density adjustment can be performed only if the user has detailed knowledge of the fluid density, obtained for example from detailed laboratory analyses.

  • Page 55: Gas Measurement

    Proline Promass 83 FOUNDATION Fieldbus 6 Commissioning 6.2.4 Gas measurement Promass 83 is not only suitable for measuring fluid flow. Direct mass measurement based on the Coriolis principle is also possible for measuring the flow rate of gases. Note! • Only mass and corrected volume flow can be measured and output with the gas-measurement mode.
  • Page 56 6 Commissioning Proline Promass 83 FOUNDATION Fieldbus 11. In the “Reference Param. - Fixed Reference Density” parameter, enter a value for the gas- dependent reference density (= density at reference temperature and reference pressure). Example for air: reference density = 1.2928 kg/Nm (at 0 °C and 1.013 bar)
  • Page 57 Proline Promass 83 FOUNDATION Fieldbus 6 Commissioning Corrected volume measurement with gas The following parameters also have to be configured in the function matrix if corrected volume flow (e.g. in Nm /h) is to be measured and output instead of mass flow (e.g. in kg/h). The procedure is...

  • Page 58: Quick Setup

    6 Commissioning Proline Promass 83 FOUNDATION Fieldbus Quick Setup In the case of measuring devices without a local display, the individual parameters and functions must be configured via the configuration program, e.g. ToF Tool - Fieldtool Package. If the measu- ring device is equipped with a local display, all the important device parameters for standard opera- tion can be configured quickly and easily by means of the “Commissioning”...
  • Page 59 Proline Promass 83 FOUNDATION Fieldbus 6 Commissioning Note! • The display returns to the cell QUICK SETUP COMMISSION (1002) if you press the ESC key combination (OS) during parameter interrogation. The stored parameters remain valid. • The “Commissioning” Quick Setup must be carried out before one of the Quick Setups explained below is run.

  • Page 60: Quick Setup "Gas Measurement

    6 Commissioning Proline Promass 83 FOUNDATION Fieldbus 6.3.2 Quick Setup “Gas Measurement” Promass 83 is not only suitable for measuring liquid flow. Direct mass measurement based on the Coriolis principle is also possible for measuring the flow rate of gases. To do so, the corresponding device functions can be configured via the configuration program (e.g.
  • Page 61 Proline Promass 83 FOUNDATION Fieldbus 6 Commissioning “Gas Measurement” Quick Setup menu Call-up via the function matrix: → → HOME position MEASURED VARIABLE (A) → → MEASURED VARIABLE QUICK SETUP (B) → N → QUICK SETUP QS GAS MEASUREMENT (1004)

  • Page 62: Data Back-Up With "T-Dat Save/Load

    6 Commissioning Proline Promass 83 FOUNDATION Fieldbus 6.3.3 Data back-up with “T-DAT SAVE/LOAD” The “T-DAT SAVE/LOAD” function can be used to store all the settings and parameters of the device to the T-Dat data storage device. XXX.XXX.XX QUICK SETUP HOME-POSITION...

  • Page 63: Purge And Pressure Monitoring Connections

    • Use only low gauge pressure to purge. Maximum pressure 5 bar. Data storage device (DAT) At Endress+Hauser, the term HistoROM refers to various types of data storage modules on which process and measuring device data are stored. By plugging and unplugging such modules, device configurations can be duplicated onto other measuring devices to cite just one example.
  • Page 64 6 Commissioning Proline Promass 83 FOUNDATION Fieldbus Endress+Hauser...

  • Page 65: Maintenance

    Proline Promass 83 FOUNDATION Fieldbus 7 Maintenance Maintenance The Promass 83 flow measuring system requires no special maintenance. Exterior cleaning When cleaning the exterior of measuring devices, always use cleaning agents that do not attack the surface of the housing and the seals.
  • Page 66 7 Maintenance Proline Promass 83 FOUNDATION Fieldbus Endress+Hauser...

  • Page 67: Accessories

    Proline Promass 83 FOUNDATION Fieldbus 8 Accessories Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the transmitter and the sensor. Detailed information on the order code in question can be obtained from the Endress+Hauser service organisation.

  • Page 68: Service-Specific Accessories

    8 Accessories Proline Promass 83 FOUNDATION Fieldbus Service-specific accessories Accessory Description Order code Applicator Software for selecting and configuring flowmeters. DKA80 - * Applicator can be downloaded from the Internet or orde- red on CD-ROM for installation on a local PC.

  • Page 69: Trouble-Shooting

    In the event of a serious fault, a flowmeter might have to be returned to the manufacturer for repair. The procedures on Page 8 must be carried out before you return a flowmeter to Endress+Hauser. Always enclose a duly completed “Declaration of contamination” form. You will find a preprinted form at the back of this manual.
  • Page 70 9 Trouble-shooting Proline Promass 83 FOUNDATION Fieldbus Basic current Is there a basic current of min. 12 mA? Terminators Is the FOUNDATION Fieldbus-H1 network correctly terminated? Each bus segment must always be terminated with a bus terminator at both ends (start and finish).
  • Page 71 Proline Promass 83 FOUNDATION Fieldbus 9 Trouble-shooting Analog Input Fct. Block: 4. Make sure that the L_TYPE parameter (type of linearisation) is already configu- red in the Analog Input Function Block → Page 48 The operating mode cannot be set to AUTO.

  • Page 72: Error Messages

    9 Trouble-shooting Proline Promass 83 FOUNDATION Fieldbus Error messages General notes The flowmeter assigns current system and process errors to two error message types in accordance with a predefined algorithm and classifies them accordingly: Error message type “Fault message”: • A message of this type immediately interrupts or stops measurement.
  • Page 73 Proline Promass 83 FOUNDATION Fieldbus 9 Trouble-shooting Device status message FF Transducer block Analog Input Funct. Block Cause/remedy (Diag. - Act. Syst. Cond.) Error messages Error messages [..] = process variable (e.g. mass Message on local display flow, volume flow, ...) Device status message (FF): [..] Quality = BAD...
  • Page 74 9 Trouble-shooting Proline Promass 83 FOUNDATION Fieldbus Device status message FF Transducer block Analog Input Funct. Block Cause/remedy (Diag. - Act. Syst. Cond.) Error messages Error messages [..] = process variable (e.g. mass Message on local display flow, volume flow, ...) Device status message [..] Quality = BAD...
  • Page 75 Proline Promass 83 FOUNDATION Fieldbus 9 Trouble-shooting Device status message FF Transducer block Analog Input Funct. Block Cause/remedy (Diag. - Act. Syst. Cond.) Error messages Error messages [..] = process variable (e.g. mass Message on local display flow, volume flow, ...) Device status message (FF): [..] Quality = BAD...
  • Page 76 9 Trouble-shooting Proline Promass 83 FOUNDATION Fieldbus Device status message FF Transducer block Analog Input Funct. Block Cause/remedy (Diag. - Act. Syst. Cond.) Error messages Error messages [..] = process variable (e.g. mass Message on local display flow, volume flow, ...) Device status message (FF): [..] Quality = BAD...
  • Page 77 Proline Promass 83 FOUNDATION Fieldbus 9 Trouble-shooting Device status message FF Transducer block Analog Input Funct. Block Cause/remedy (Diag. - Act. Syst. Cond.) Error messages Error messages [..] = process variable (e.g. mass Message on local display flow, volume flow, ...) Device status message (FF): [..] Quality = BAD...
  • Page 78 9 Trouble-shooting Proline Promass 83 FOUNDATION Fieldbus Device status message FF Transducer block Analog Input Funct. Block Cause/remedy (Diag. - Act. Syst. Cond.) Error messages Error messages [..] = process variable (e.g. mass Message on local display flow, volume flow, ...) Device status message (FF): [..] Quality = BAD...
  • Page 79 Proline Promass 83 FOUNDATION Fieldbus 9 Trouble-shooting Device status message FF Transducer block Analog Input Funct. Block Cause/remedy (Diag. - Act. Syst. Cond.) Error messages Error messages [..] = process variable (e.g. mass Message on local display flow, volume flow, ...) Device status message (FF): [..] Quality = BAD...
  • Page 80 9 Trouble-shooting Proline Promass 83 FOUNDATION Fieldbus Device status message FF Transducer block Analog Input Funct. Block Cause/remedy (Diag. - Act. Syst. Cond.) Error messages Error messages [..] = process variable (e.g. mass Message on local display flow, volume flow, ...) Device status message (FF): [..] Quality = UNCERTAIN...
  • Page 81 Proline Promass 83 FOUNDATION Fieldbus 9 Trouble-shooting Device status message FF Transducer block Analog Input Funct. Block Cause/remedy (Diag. - Act. Syst. Cond.) Error messages Error messages [..] = process variable (e.g. mass Message on local display flow, volume flow, ...) Device status message (FF): [..] Quality = UNCERTAIN...

  • Page 82: Process Errors Without Messages

    The following options are available for tackling problems of this nature: some other fault not described above has occurred. Request the services of an Endress+Hauser service technician In these instances, please contact If you contact our service organisation to have a service technician sent out, please...

  • Page 83: Spare Parts

    Note! You can order spare parts directly from your Endress+Hauser service organisation by providing the serial number printed on the transmitter's nameplate (see Page 9). Spare parts are shipped as sets comprising the following parts: •...

  • Page 84: Removing And Installing Electronics Boards

    9 Trouble-shooting Proline Promass 83 FOUNDATION Fieldbus Removing and installing electronics boards Field housing: removing and installing electronics boards (Fig. 35) Warning! • Risk of electric shock. Exposed components carry dangerous voltages. Make sure that the power supply is switched off before you remove the cover of the electronics compartment.
  • Page 85 Proline Promass 83 FOUNDATION Fieldbus 9 Trouble-shooting F06-83xFFxxx-03-06-06-xx-003 Fig. 35: Field housing: removing and installing electronics boards Local display Latch Ribbon cable (display module) Screws of electronics compartment cover Aperture for installing/removing boards Power unit board Amplifier board Signal cable (sensor)
  • Page 86 9 Trouble-shooting Proline Promass 83 FOUNDATION Fieldbus Wall-mount housing: removing and installing electronics boards (Fig. 36) Warning! • Risk of electric shock. Exposed components carry dangerous voltages. Make sure that the power supply is switched off before you remove the cover of the electronics compartment.
  • Page 87 Proline Promass 83 FOUNDATION Fieldbus 9 Trouble-shooting F06-83xFFxxx-03-03-06-xx-001 Fig. 36: Wall-mount housing: removing and installing electronics boards Housing cover Electronics module Ribbon cable (display module) Screws of electronics compartment cover Aperture for installing/removing boards Power unit board Amplifier board Signal cable (sensor)

  • Page 88: Replacing The Device Fuse

    9 Trouble-shooting Proline Promass 83 FOUNDATION Fieldbus Replacing the device fuse Warning! Risk of electric shock. Exposed components carry dangerous voltages. Make sure that the power supply is switched off before you remove the cover of the electronics compartment. The main fuse is on the power unit board (Fig. 37).

  • Page 89: Software History

    Proline Promass 83 FOUNDATION Fieldbus 9 Trouble-shooting Software history Datum Softwareversion Änderung der Software Betriebsanleitung 11.2004 1.01.XX Software expansion 50098622/12.04 – New sensor DN 250 – Chinese language package (English and Chinese contents) New functionalities: – Empty pipe detection via exciting current (EPD EXC.CURR.MAX (6426))
  • Page 90 9 Trouble-shooting Proline Promass 83 FOUNDATION Fieldbus Endress+Hauser...

  • Page 91: Technical Data

    Proline Promass 83 FOUNDATION Fieldbus 10 Technical data Technical data 10.1 Technical data at a glance 10.1.1 Applications The measuring device is for mass flow and volume flow measurement of liquids and gases in sealed piping systems. Application examples: • Chocolate, condensed milk, liquid sugar •...
  • Page 92 10 Technical data Proline Promass 83 FOUNDATION Fieldbus Measuring ranges for liquids (Promass H, I): Range for full scale values (liquids) g ...g min(F) max(F) 0...2000 kg/h 0...6500 kg/h 15 * 0...18000 kg/h 0...18000 kg/h 25 * 0...45000 kg/h 0...45000 kg/h 40 * 0...70000 kg/h...

  • Page 93: Outputs (Foundation Fieldbus)

    Proline Promass 83 FOUNDATION Fieldbus 10 Technical data Calculation example for gas: • Sensor type: Promass F, DN 50 • Gas: air with a density of 60.3 kg/m (at 20 °C and 50 bar) • Measuring range: 70000 kg/h • x = 160 (for Promass F DN 50) Max.
  • Page 94 10 Technical data Proline Promass 83 FOUNDATION Fieldbus Block information Execution time Block Base index Execution time [ms] Resource Block – Transducer Block 1100 – Analog Input Function Block 1 Analog Input Function Block 2 Analog Input Function Block 3...

  • Page 95: Auxiliary Energy

    Proline Promass 83 FOUNDATION Fieldbus 10 Technical data 31 PS → Publisher, Subscriber Communication profiles sup- 32 L → Link Master ported LAS function LAS function supported. Galvanic isolation All circuits for inputs, outputs, and power supply are galvanically isolated from each other.

  • Page 96: Performance Characteristics

    10 Technical data Proline Promass 83 FOUNDATION Fieldbus 10.1.6 Performance characteristics Reference operating Error limits following ISO/DIS 11631: conditions • 20...30 °C; 2...4 bar • Calibration systems as per national norms • Zero point calibrated under operating conditions • Field density calibrated (or special density calibration)
  • Page 97 Proline Promass 83 FOUNDATION Fieldbus 10 Technical data Zero point stability (Promass H, I): Maximum full scale value Zero point stability Zero point stability [kg/h] or [l/h] Promass H Promass I [kg/h] or [l/h] [kg/h] or [l/h] 2000 0.20 0.20 6500 0.65...
  • Page 98 10 Technical data Proline Promass 83 FOUNDATION Fieldbus Repeatability Flow measurement • Mass flow (liquid): Promass F,M,A,H,I: ±0.05% ± [1/2 x (zero point stability / measured value) x100]%o.r. Promass E: ±0.15% ± [1/2 x (zero point stability / measured value) x 100]% o.r.

  • Page 99: Operating Conditions: Installation

    Proline Promass 83 FOUNDATION Fieldbus 10 Technical data Promass H, I: Promass H Promass I % o.r. / bar % o.r. / bar –0.017 0.006 –0.021 0.004 – 0.006 –0.013 0.006 – No influence –0.018 No influence – 0.006 –0.020 0.006...

  • Page 100: Operating Conditions: Process

    10 Technical data Proline Promass 83 FOUNDATION Fieldbus Suitability for CIP cleaning Suitability for SIP cleaning Electromagnetic compatibility To EN 61326/A1 and NAMUR recommendation NE 21 (EMC) 10.1.9 Operating conditions: Process Medium temperature range Sensor: • Promass F, A, H: –50...+200 °C •...
  • Page 101 Proline Promass 83 FOUNDATION Fieldbus 10 Technical data Pressure loss Pressure loss depends on the fluid properties and on its flow rate. The following formulas can be used to approximately calculate the pressure loss: Pressure loss formulas for Promass F, M and E 2 m ·...
  • Page 102 10 Technical data Proline Promass 83 FOUNDATION Fieldbus Pressure loss coefficient for Promass F d [m] ⋅ ⋅ ⋅ ⋅ –3 5.35 5.70 9.60 1.90 ⋅ ⋅ ⋅ ⋅ –3 8.30 5.80 1.90 10.60 ⋅ ⋅ ⋅ ⋅ –3 12.00 1.90...
  • Page 103 Proline Promass 83 FOUNDATION Fieldbus 10 Technical data Pressure loss coefficient for Promass M d [m] ⋅ ⋅ ⋅ ⋅ –3 5.53 ⋅ ⋅ ⋅ ⋅ –3 8.55 ⋅ ⋅ ⋅ ⋅ –3 11.38 ⋅ ⋅ ⋅ ⋅ –3 17.07 ⋅...
  • Page 104 10 Technical data Proline Promass 83 FOUNDATION Fieldbus Pressure loss coefficient for Promass E d [m] 5.35 ⋅ 10 –3 5.70 ⋅ 10 7.91 ⋅ 10 2.10 ⋅ 10 8.30 ⋅ 10 –3 7.62 ⋅ 10 1.73 ⋅ 10 2.13 ⋅ 10 12.00 ⋅...
  • Page 105 Proline Promass 83 FOUNDATION Fieldbus 10 Technical data Pressure loss coefficient for Promass A d [m] ⋅ ⋅ ⋅ –3 1.10 ⋅ ⋅ ⋅ –3 1.80 ⋅ ⋅ ⋅ –3 3.50 High pressure version ⋅ ⋅ ⋅ –3 1.40 ⋅...
  • Page 106 10 Technical data Proline Promass 83 FOUNDATION Fieldbus Pressure loss coefficient for Promass H d [m] ⋅ ⋅ ⋅ ⋅ –3 8.51 8.04 3.28 1.15 ⋅ ⋅ ⋅ ⋅ –3 12.00 1.81 9.99 1.87 ⋅ ⋅ ⋅ ⋅ –3 17.60 3.67...
  • Page 107 Proline Promass 83 FOUNDATION Fieldbus 10 Technical data Pressure loss coefficient for Promass I d [m] ⋅ ⋅ ⋅ ⋅ –3 8.55 129.95 ⋅ ⋅ ⋅ ⋅ –3 11.38 23.33 ⋅ ⋅ ⋅ ⋅ –3 17.07 0.01 ⋅ ⋅ ⋅...
  • Page 108 10 Technical data Proline Promass 83 FOUNDATION Fieldbus 10.1.10 Mechanical construction Design / dimensions Dimensions and the fitting lengths of the transmitter and sensor are given in the Technical Informa- tion. → Page 112 Weight • Compact version: see table below •...
  • Page 109 Proline Promass 83 FOUNDATION Fieldbus 10 Technical data Connection housing, sensor (remote version): • Stainless steel 1.4301/304 (standard version) • powder coated die-cast aluminium (high-temperature version and version for heating) Process connections, Promass F: • Flanges EN 1092-1 (DIN 2501) / ANSI B16.5 / JIS B2238 →...
  • Page 110 10 Technical data Proline Promass 83 FOUNDATION Fieldbus Process connections, Promass I: • Flanges EN 1092-1 (DIN 2501) / ANSI B16.5 / JIS B2238 → stainless steel 1.4301/304, parts in contact with medium: titanium grade 9 • Flange DIN 11864-2 Form A (flat flange) → titanium grade 2 •...
  • Page 111 10.1.12 Certificates and approvals Ex approvals Information about currently available Ex versions (ATEX, FM, CSA) can be supplied by your Endress+Hauser Sales Centre on request. All explosion protection data are given in a separate docu- mentation which is available upon request. Sanitary compatibility •...
  • Page 112 10.1.14 Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the transmitter and the sensor (see Page 67). The Endress+Hauser service organisation can provide detailed information on the order codes of your choice.
  • Page 113 Proline Promass 83 FOUNDATION Fieldbus Index Index Documentation, additional ..... . . 112 Accessories ........67...
  • Page 114 Index Proline Promass 83 FOUNDATION Fieldbus Installation conditions Dimensions, fitting lengths ..... 14 Performance characteristics Inlet and outlet runs ......19 Influence of fluid pressure .
  • Page 115 Proline Promass 83 FOUNDATION Fieldbus Index Software Amplifier version, displaying ....45 Versions (history) ......89 Spare parts .
  • Page 116 Index Proline Promass 83 FOUNDATION Fieldbus Endress+Hauser...
  • Page 117 "CAJ?P?RGML MD AMLR?KGL?RGML $EAR CUSTOMER "ECAUSE OF LEGAL DETERMINATIONS AND FOR THE SAFETY OF OUR EMPLOYEES AND OPERATING EQUIPMENT WE NEED THIS $ECLARATION OF CONTAMINATION WITH YOUR SIGNATURE BEFORE YOUR ORDER CAN BE HANDLED 0LEASE INCLUDE THE COMPLETELY FILLED IN DECLARATION WITH THE DEVICE AND THE SHIPPING DOCUMENTS IN ANY CASE !DD ALSO SAFETY SHEETS AND  OR SPECIFIC HANDLING INSTRUCTIONS IF NECESSARY 4YPE OF DEVICE  SENSOR 3ERIAL NO...
  • Page 118 www.endress.com/worldwide BA065D/06/en/12.04 50098623 FM+SGML 6.0...
