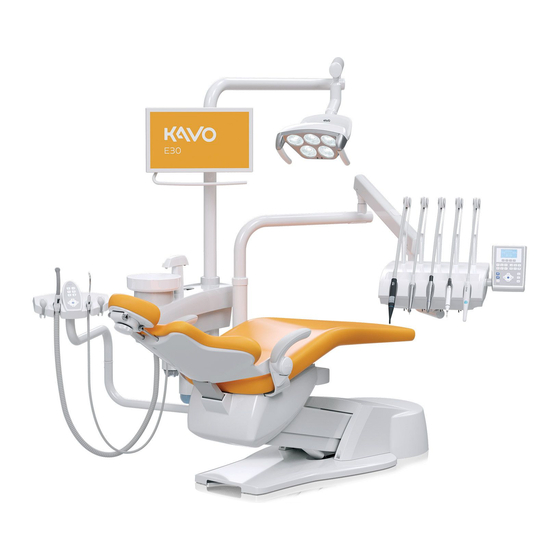

ESTETICA E30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESTETICA E30 and is the answer not in the manual?

Questions and answers

Related Manuals for KaVo ESTETICA E30

Summary of Contents for KaVo ESTETICA E30

  • Page 1 Instructions for use ESTETICA E30...
  • Page 2 Distributed by: Manufacturer: KaVo Dental GmbH KaVo Dental GmbH Bismarckring 39 Bismarckring 39 88400 Biberach 88400 Biberach Germany Germany Phone +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...

  • Page 3: Table Of Contents

    2.11 Intended use......................... 13 3 Description of the product....................16 3.1 Treatment centre versions....................16 3.1.1 KaVo ESTETICA E30 S ..................16 3.1.2 KaVo ESTETICA E30 TM ..................16 3.2 Patient chair........................17 3.3 Unit with patient element ....................18 3.4 Versions of the dentist element ..................
  • Page 4 Instructions for use ESTETICA E30 Table of contents 4.7 Attaching the tray holder (optional) ................. 55 4.8 Using functions through the menu................... 55 4.8.1 General menu navigation .................. 55 4.8.2 Using the user menu..................56 4.8.3 Standby menu ....................61 4.8.4...
  • Page 5 Instructions for use ESTETICA E30 Table of contents 7.1.2 Notes for medical electrical systems ..............98 7.1.3 Components of the safety check ................ 98 7.1.4 Testing intervals....................99 7.1.5 Notes on the test method in accordance with IEC 62353 ........99 7.1.6...

  • Page 6: User Instructions

    1 User instructions | 1 User instructions Dear user, Congratulations on purchasing this KaVo quality product. By following the notes below you will be able to work smoothly, economically and safely. © Copyright by KaVo Dental GmbH All other trademarks are property of their respective owners.
  • Page 7 Instructions for use ESTETICA E30 1 User instructions | HIBC Code EAC conformity mark (Eurasian Conformity) Transportation and storage conditions (temperature range) Transportation and storage conditions (air pressure) Transportation and storage conditions (Humidity) Protect from moisture (Keep dry) Protect from impact...

  • Page 8: Terms And Conditions Of Warranty

    Please comply with the regional public waste-disposal system. 1.1 Terms and conditions of warranty KaVo provides the final customer with a warranty that the product cited in the transfer form will function properly and guarantees zero defects in the material...

  • Page 9: Safety

    Instructions for use ESTETICA E30 2 Safety | 2.1 Explosion hazard 2 Safety The instructions for use are an integral part of the product and must be read carefully prior to use and must be accessible at all times. The device may only be used in accordance with the intended use, any other type of use is not permitted.

  • Page 10: Electrical Shock

    Instructions for use ESTETICA E30 2 Safety | 2.3 Electrical shock 2.3 Electrical shock Improper connection of a non-medical system to the USB interfaces of the device can lead to electrical shock and injury to patient, user and third parties.

  • Page 11: Use

    Instructions for use ESTETICA E30 2 Safety | 2.6 Use 4 Comply with the tables of electromagnetic compatibility during installation and commissioning. 4 If the device needs to be used in the immediate vicinity of other equipment, monitor the device or system for malfunctions.

  • Page 12: Qualification Of Personnel

    Repairs, servicing and safety checks may only be performed by trained service personnel. The following persons are authorised to do this: ▪ Service technicians of KaVo branches after the appropriate product training ▪ Service technicians of KaVo authorised dealers after the appropriate product...

  • Page 13: Intended Use

    1639. It aids the dental application in the mouth of the patient by supplying air, water or spray. ▪ These KaVo products are designed for use in dentistry only and must be used by trained medical personnel only. The installation is done exclusively in a fixed place in premises used for medical purposes.
  • Page 14 ▪ these Instructions for use Regular servicing and safety checks are essential for the permanent assurance of the operating and functional safety of the KaVo product and for the preven- tion of damage and hazards. Testing and maintenance intervals: Maintenance must be performed once a year, the safety checks at intervals of 2 years.
  • Page 15 Dispose of and recycle the packaging appropriately in accordance with current packaging law, employing waste management / recycling companies. Comply with the comprehensive return system. KaVo has had its packaging licensed for this purpose. Please comply with the regional public waste-disposal system.

  • Page 16: Description Of The Product

    Instructions for use ESTETICA E30 3 Description of the product | 3.1 Treatment centre versions 3 Description of the product 3.1 Treatment centre versions 3.1.1 KaVo ESTETICA E30 S ESTETICA E30 S 3.1.2 KaVo ESTETICA E30 TM ESTETICA E30 TM...

  • Page 17: Patient Chair

    Instructions for use ESTETICA E30 3 Description of the product | 3.2 Patient chair 3.2 Patient chair ① Headrest ② Backrest ③ Kickplate (base plate) ④ Bench ⑤ Arm rest (optional) 17 / 124...

  • Page 18: Unit With Patient Element

    Instructions for use ESTETICA E30 3 Description of the product | 3.3 Unit with patient element 3.3 Unit with patient element ① Patient element ② Spittoon bowl ③ Tumbler filler ④ Unit body ⑤ Pressurized water bottle ⑥ Supply element...
  • Page 19 Instructions for use ESTETICA E30 3 Description of the product | 3.4 Versions of the dentist element ① Handle ② Triple function handpiece ③ Turbine handpiece (MULTIflex ④ INTRA LUX Motor KL 701 / KL 703 coupling) ⑤ Scaler PIEZOsoft/PiezoLED ⑥...

  • Page 20: S-Table

    Instructions for use ESTETICA E30 3 Description of the product | 3.4 Versions of the dentist element 3.4.2 S-Table NOTE The holder assignment and arrangement of the instruments can be changed as needed and does not have to be as shown in the figure.

  • Page 21: Assistant Element

    3 Description of the product | 3.5 Assistant element 3.5 Assistant element ① Triple function handpiece ② Spray mist suction ③ Control element ④ Saliva ejector ⑤ KaVo Poly One / Satelec Mini LED ⑥ Tray holder for dental assistant 21 / 124...

  • Page 22: Triple Function Handpieces

    Instructions for use ESTETICA E30 3 Description of the product | 3.6 Triple function handpieces 3.6 Triple function handpieces Triple function handpiece One ① Cannula ② Water button (green ring) ③ Air button (blue ring) ④ Handpiece and hose Triple function handpiece ①...

  • Page 23: Control Elements

    Instructions for use ESTETICA E30 3 Description of the product | 3.7 Control elements 3.7 Control elements 3.7.1 Dentist element TM table Group of keys for the dental chair Group of keys for illumination Group of keys for the handpieces...

  • Page 24: Assistant Element

    Instructions for use ESTETICA E30 3 Description of the product | 3.7 Control elements 3.7.3 Assistant element Group of keys for hygiene Group of keys for illumination Group of keys for the timer Group of keys for the dental chair 3.7.4 Groups of keys...
  • Page 25 Instructions for use ESTETICA E30 3 Description of the product | 3.7 Control elements Description Assistant element Dentist element "Collapsed position" key Group of keys for illumination/handpieces Description Control element "Operating light" key Assistant element "Operating light dim- Dentist element ming"...

  • Page 26: Foot Control

    Instructions for use ESTETICA E30 3 Description of the product | 3.7 Control elements Group of keys for the timer Description Control element "Remote control" key unassigned key (CONEXIO) "Motorised auxiliary Dentist element drives" key "Timer 1" key Dentist element and as- sistant element 3.7.5 Foot control...

  • Page 27: Rating Plate And Serial Number Plates

    Instructions for use ESTETICA E30 3 Description of the product | 3.8 Rating plate and serial number plates 3.8 Rating plate and serial number plates Site for affixing the rating plate and serial number plate ① Serial number plate of the chair ②...
  • Page 28 Instructions for use ESTETICA E30 3 Description of the product | 3.8 Rating plate and serial number plates Operating mode: 2 min Patient chair on-time: 2 minutes 18 min Patient chair pause: 18 minutes (The permissible operating times correspond to common dental pro- cedure.)
  • Page 29 Instructions for use ESTETICA E30 3 Description of the product | 3.8 Rating plate and serial number plates Marks and labels of triple-function handpieces SN YY-??????? X.XXX.XXXX 3FH-One XXXX YYYY-MM Marks and labels of triple-function handpiece One ① Company logo of the manufac- ②...

  • Page 30: Technical Specifications

    ⑥ Expiration date (year) ⑦ Storage temperature ⑧ Please comply with accompanying documents NOTE The specified concentration of KaVo OXYGENAL 6 must not be exceeded. 3.9 Technical Specifications Drilling template and setup plan Layout plan (Mat. no. 1.009.2781) 30 / 124...
  • Page 31 Instructions for use ESTETICA E30 3 Description of the product | 3.9 Technical Specifications Electrical system Electrical cable 3 x 1.5 mm (customer fuse protection 10 A) 3 x 2.5 mm (customer fuse protection 16 A) Free end above the floor 1000 mm...
  • Page 32 Air flow at least 16 Nl/min Water supply CAUTION The treatment centre ESTETICA E30 is not equipped from the factory with an amalgam separator. Contamination of wastewater. 4 Disposing wastewater, it is imperative to comply with the national regula- tions, in particular with regard to amalgam loads.
  • Page 33 Instructions for use ESTETICA E30 3 Description of the product | 3.9 Technical Specifications Water germ reduction is integrated in combination with the water bottle with manual Oxygenal 6 dosing through the dosing attachment and the intensive germ reduction bottle.
  • Page 34 Instructions for use ESTETICA E30 3 Description of the product | 3.9 Technical Specifications Air consumption with 2 Venturi suction max. 150 Nl/min units Pressure dew point < -30 ºC (compressor with dry air system) Oil content < 0.1 mg/m...
  • Page 35 Instructions for use ESTETICA E30 3 Description of the product | 3.9 Technical Specifications Operating environment WARNING Inappropriate operating conditions. Impairment of the electrical safety of the device. 4 It is essential to comply with the operating conditions specified in the "Tech- nical Specifications"...

  • Page 36: Operation

    Instructions for use ESTETICA E30 4 Operation | 4 Operation Please note also the corresponding instruction and ergonomics videos on the KaVo website. Please use the QR codes or follow the corresponding link: Instruction video: https://www.kavo.com/de/einweisung Ergonomics video: https://www.kavo.com/de-de/rueckenfreundliches-arbeiten WARNING Electrical sparks in the product can lead to explosion or fire.

  • Page 37: Switching The Device On And Off

    Instructions for use ESTETICA E30 4 Operation | 4.1 Switching the device on and off 4.1 Switching the device on and off NOTE Switch the machine off before leaving the practice. 4 Use the main switch to switch on the device.
  • Page 38 Instructions for use ESTETICA E30 4 Operation | 4.2 Converting from right handed to left handed ① Right handed model ② Left handed model 4 Removing the bench 4 Undo the screw. 38 / 124...
  • Page 39 Instructions for use ESTETICA E30 4 Operation | 4.2 Converting from right handed to left handed 4 Swivel the dentist and assistant element to the other chair side and re- tighten the screw. 39 / 124...
  • Page 40 Instructions for use ESTETICA E30 4 Operation | 4.2 Converting from right handed to left handed 4 Undo the locking and swivel the patient unit 180°until the locking snaps-in again. 40 / 124...
  • Page 41 Instructions for use ESTETICA E30 4 Operation | 4.2 Converting from right handed to left handed 4 Fasten the seat again proceeding in reverse order. 41 / 124...

  • Page 42: Adjusting The Dental Chair

    Allergic reactions and skin irritation. To improve hygiene and increase the service life, KaVo recommends to use ap- propriate covers (e.g. head protection bags) to protect the cushions that are regularly in contact with the skin of the patient. Sweat or hair and skin care products can be a serious strain on the cushions.

  • Page 43: Adjusting The Headrest

    Instructions for use ESTETICA E30 4 Operation | 4.3 Adjusting the dental chair 4.3.2 Adjusting the headrest Setting locking dial of 2-joint headrest CAUTION Adjusting the headrest. Injury to the neck muscles. 4 Make sure that the patient is aware of the headrest being adjusted.

  • Page 44: Positioning The Patient Chair Manually

    Instructions for use ESTETICA E30 4 Operation | 4.3 Adjusting the dental chair 4 To swing the headrest, turn the locking dial to the left, move the headrest into position, and turn the dial to the right to lock it.

  • Page 45: Automatic Positioning Of Patient Chair

    Instructions for use ESTETICA E30 4 Operation | 4.3 Adjusting the dental chair Function The chair moves down. The backrest moves upward. The backrest moves downward. 4 Press the corresponding button. ð The chair or backrest moves in the desired direction.
  • Page 46 Instructions for use ESTETICA E30 4 Operation | 4.3 Adjusting the dental chair Function Move to the rinse position. Move to most recent position before actuation of the SP. Move to automatic position 0. Move to automatic position 1. Move to automatic position 2.
  • Page 47 Instructions for use ESTETICA E30 4 Operation | 4.3 Adjusting the dental chair 4 During these four seconds, briefly press the "AP 0", " AP 1", " AP 2", "SP" or "LP" key. ð The chair moves into the selected automatic position.
  • Page 48 Instructions for use ESTETICA E30 4 Operation | 4.3 Adjusting the dental chair Move the chair when the instrument is mounted 4 Press the "SP" foot switch. 4 Press the "LP" foot switch. ð The chair moves into the selected automatic position.

  • Page 49: Safety Shutdown

    Instructions for use ESTETICA E30 4 Operation | 4.3 Adjusting the dental chair 4 Hold down the foot pedal and foot switch "LP", and simultaneously press any button for an automatic position ("AP 0", "AP 1", "AP 2" or "SP") on the dentist or assistant element until you hear a beep.
  • Page 50 Instructions for use ESTETICA E30 4 Operation | 4.3 Adjusting the dental chair Safety shutdown actu- LED on assistant ele- LED on dentist ele- ated ment ment ① Stirrup on foot control ② Assistant element ③ Backrest ④ Kickplate ⑤ bench for right/left...

  • Page 51: Moving The Patient Chair

    Instructions for use ESTETICA E30 4 Operation | 4.4 Moving the patient chair CAUTION Changing the chair's position when the safety shutdown is on. Personal injury. Damage to the device. 4 Changing the chair position while a safety shutdown is active, do not move the chair against the active safety circuit.

  • Page 52: Moving The Dentist Unit Tm

    Instructions for use ESTETICA E30 4 Operation | 4.5 Moving the dentist element The swinging range of the dentist element is limited by stops. NOTE Do not pull the dentist element by the instrument hose. ① Knob for locking brake of spring 4 To adjust the height of the dentist unit, release the brake ①...

  • Page 53: Moving The Dentist Unit S

    Instructions for use ESTETICA E30 4 Operation | 4.6 Moving the patient unit 4.5.2 Moving the dentist unit S CAUTION Risk of injury by suspended instruments (S table). Patients may get injured by sharp instrument tips. 4 When you move the dentist element, make sure that nobody gets injured.

  • Page 54: Moving The Patient Element (Optional)

    Instructions for use ESTETICA E30 4 Operation | 4.6 Moving the patient unit The spittoon bowl can be removed. 4.6.1 Moving the patient element (optional) CAUTION The left armrest may collide with a manually adjusted patient chair when the chair moves.

  • Page 55: Attaching The Tray Holder (Optional)

    Instructions for use ESTETICA E30 4 Operation | 4.7 Attaching the tray holder (optional) 4.7 Attaching the tray holder (optional) ① Tray support ② Holder The support ② for the tray holder ① is an optional accessory. 4.8 Using functions through the menu 4.8.1 General menu navigation...

  • Page 56: Using The User Menu

    Instructions for use ESTETICA E30 4 Operation | 4.8 Using functions through the menu 4.8.2 Using the user menu The following options can be opened in the user menu: Feature Description tion Users Set number of users. Tumbler Set tumbler filling time.
  • Page 57 Instructions for use ESTETICA E30 4 Operation | 4.8 Using functions through the menu Option 1: Set number of users 4 Press the "S1", "S2", "S3" key to select user 1, 2, and 3, respectively. 4 Press the "S4" button to call up the second level.
  • Page 58 Instructions for use ESTETICA E30 4 Operation | 4.8 Using functions through the menu Option 4: Setting the LUX afterglow period 4 Press the "reduce value" or "increase value" key to set the afterglow period between 0 to 10 seconds. The default value is 3 seconds.
  • Page 59 Instructions for use ESTETICA E30 4 Operation | 4.8 Using functions through the menu 4 Press the "SS:MM" (S1) key to switch between hours and minutes. 4 Press the "Save" (S4) key to save the values and switch to the SET display.
  • Page 60 Instructions for use ESTETICA E30 4 Operation | 4.8 Using functions through the menu Option 9: Setting the display contrast 4 Press the "reduce value" or "increase value" key to set the contrast of the LCD display. Option 10: Setting the menu language 4 Press the "reduce value"...

  • Page 61: Standby Menu

    Instructions for use ESTETICA E30 4 Operation | 4.8 Using functions through the menu Option 14: Displaying the firmware version The firmware version is displayed. 4.8.3 Standby menu The device is started from the stand-by menu. The device switches to the stand-by menu upon closing of the handpiece and endo menus.

  • Page 62: Selecting The Dentist

    Instructions for use ESTETICA E30 4 Operation | 4.8 Using functions through the menu Settings Previous message Next message Switch to stand-by menu Error messages in the status display Also refer to: 9 Troubleshooting, Page 117 4.8.4 Selecting the dentist The first symbol in the stand-by menu displays the current user.
  • Page 63 Instructions for use ESTETICA E30 4 Operation | 4.8 Using functions through the menu Changing motor settings in the menu NOTE Follow the instructions for use, service instructions and installation instruc- tions in the instrument packaging. Motor status The status of a handpiece is displayed on the display or control keys once a handpiece is taken out.
  • Page 64 Instructions for use ESTETICA E30 4 Operation | 4.8 Using functions through the menu Setting the PiezoLED The status of the handpiece is shown on the display when the PiezoLED is being taken out: ▪ Intensity ▪ Mode ▪ Light intensity 4 Settings can be changed using the corresponding keys on the control panel or on the foot control.

  • Page 65: Endo Menu (Optional)

    Instructions for use ESTETICA E30 4 Operation | 4.8 Using functions through the menu Power output as a function of device pre-setting (foot control) and tip load (shown using modes P3 and E as examples) NOTE Stay in the range of dynamic response to ensure that the treatment is gentle.
  • Page 66 Instructions for use ESTETICA E30 4 Operation | 4.8 Using functions through the menu Using the ENDO menu Displaying parameters 4 Press the respective keys on the display to navigate between parameters. Settings S1 (short) Displays the next set of parameters Press the "SP/Blown...
  • Page 67 Instructions for use ESTETICA E30 4 Operation | 4.8 Using functions through the menu Settings Saves the parameters. ENDO menu is being selected. Changes the torque mode Autoreverse, Torque Control only, Autorev. / Forward, Autore- verse,.. (ring counter) Changes the torque mode Autoreverse, Autorev.
  • Page 68 Instructions for use ESTETICA E30 4 Operation | 4.8 Using functions through the menu Settings Saves the parameters. ENDO menu is being selected. Changes the torque Transmission ratio 1:1 range: 0.15 Ncm to 2.5 Ncm: steps of 0.05 Ncm range: 1% to 100%: steps of 2% Transmission ratio 3:1 range: 0.4 Ncm to 8.0 Ncm: steps of 0.05 Ncm...

  • Page 69: Operating The Conexio Menu (Optional)

    Instructions for use ESTETICA E30 4 Operation | 4.8 Using functions through the menu Option 2: Torque 4 Press the "S2" or "S3" key to change the torque setting display. Settings Saves the option Selects the ENDO menu Changes the unit of torque setting unit: % or Ncm Transmission ratio 1:1: 100 % = 2.5 Ncm...
  • Page 70 The function of the CONEXIOcom menu is to control the display of previously recorded and saved images and videos. In order to use the function, the unit must have access to the data of the KaVo "CONEXIO" software. For details on the configuration, please refer to the "CONEXIO" installation instructions.

  • Page 71: Using Function Through The Dentist Or Assistant Element

    Instructions for use ESTETICA E30 4 Operation | 4.9 Using function through the dentist or assistant element Icon Setting NOTE CONEXIO can show only those patients who have been entered in the CON- EXIO database. Patient files can be transferred to the treatment centre by one of 2 ways: ▪...

  • Page 72: Illumination Functions For Kavolux 540 Led T

    4 When you use the KaVo KEY Laser III or KEY Laser 3+, switch the operating light to laser mode. 4 Or switch off the operating light, do not use KaVo KEY Laser III or KEY Laser 3+ simultaneously with the KaVoLUX 540 LED operating light.
  • Page 73 4 Switch the operating light to laser mode when you use the KaVo DIAGNO- dent. 4 Or switch off the operating light; do not use KaVo DIAGNOdent and the Ka- VoLUX 540 LED operating light simultaneously. CAUTION Premature hardening of composite fillings.
  • Page 74 Instructions for use ESTETICA E30 4 Operation | 4.9 Using function through the dentist or assistant element Turning the operating light On and Off 4 Press the "Operating light" button on the dentist or assistant element. ð The operating light is switched on in its most recent active state: operat- ing light on, COMPOsave mode on or dimmed light.
  • Page 75 Instructions for use ESTETICA E30 4 Operation | 4.9 Using function through the dentist or assistant element ▪ Laser mode: Light mode with no detrimental effect on the KaVo KEY Laser III, the KEY Laser 3+ or the KaVo DIAGNOdent When operated in dimmed mode, the LED lamp functions like a dimmed halo- gen lamp.
  • Page 76 Also refer to: Instructions for use of the operating light In laser mode, a different light mode is generated that has no negative influ- ence on the KaVo KEY Laser III, KEY Laser 3+ or KaVo DIAGNOdent. 76 / 124...
  • Page 77 Instructions for use ESTETICA E30 4 Operation | 4.9 Using function through the dentist or assistant element Sensor KaVoLUX 540 LED 4 Press the „operating light“ button and the "operating light dimming" button simultaneously on the operating light. ð The laser mode switches on.

  • Page 78: Using The Illumination Functions For Edi And Maia

    Instructions for use ESTETICA E30 4 Operation | 4.9 Using function through the dentist or assistant element Operation of the 3D joint 4 Turn the switching ring to the left until it snaps into place. ð Operating light can be rotated 45° to the left or 45° to the right.

  • Page 79: Operating The Foot Control

    Instructions for use ESTETICA E30 4 Operation | 4.10 Operating the foot control Setting the timer Prerequisites ü Standby menu is selected. 4 To set a timer time (e.g. Timer 1), press the "Timer" key until you hear a beep.

  • Page 80: Setting The Cooling Status

    Instructions for use ESTETICA E30 4 Operation | 4.10 Operating the foot control ð The handpiece is active. 4 Press the foot pedal. ð The removed handpiece runs at the set speed or intensity. 4 Changing speed or intensity with the foot pedal.

  • Page 81: Conexio Operation (Fee-Based Additional Option)

    Instructions for use ESTETICA E30 4 Operation | 4.10 Operating the foot control 4 Slide the cross switch to the left. ð Change the cold light status: "On/Off". 4.10.9 CONEXIO operation (fee-based additional option) Setting ① Stirrup switch Discard image/video Press briefly - deletes the selected image/video ②...

  • Page 82: Using Handpieces

    The adjusting screws for spray air and spray water are situated on the under- side of the table and correspond to the handpiece that is actually connected. For KaVo Midwest handpieces, spray air and spray water are pre-set suitable at the factory such that no re-adjustment is required.

  • Page 83: Using Suction Hoses

    Instructions for use ESTETICA E30 4 Operation | 4.11 Using handpieces Borden handpieces NOTE In the case of Borden handpieces, the drive air needs to be adjusted for each handpiece by a Service Technician using adjusting screw ③. The adjustment can be made with the measuring set Mat.

  • Page 84: Using Triple-Function Handpieces

    Instructions for use ESTETICA E30 4 Operation | 4.11 Using handpieces Vacu-Stop CAUTION Danger of backflow. Swallowing or choking hazard. 4 Actuate the VACUstopp when the suction cannula is outside the patient's mouth! NOTE Vacu-Stop is available in combination with Venturi suction, external wet suc- tion system, and suction valve.
  • Page 85 Instructions for use ESTETICA E30 4 Operation | 4.11 Using handpieces CAUTION Risk of injury from touching the cheek with the handpiece. Irritation of the mucosa. 4 Rotate the cannula of the handpiece into an operating position where there is no contact to the mucosa.

  • Page 86: Piezousing The Piezo Softpiezoled

    Instructions for use ESTETICA E30 4 Operation | 4.11 Using handpieces 4 Press the air button ① and continuously increase or decrease the exiting air flow by applying more or less pressure on the air button ①. 4 Press the water button ④ and continuously increase or decrease the exiting water jet by applying more or less pressure on the water button ④.

  • Page 87: Using The Kl 703 Led In Endo Mode (Optional Accessory)

    Instructions for use ESTETICA E30 4 Operation | 4.12 Using the KL 703 LED in ENDO mode (optional accessory) Operation with the foot control 4 Press the foot pedal. ð The PIEZOsoft/PiezoLED works at the preset intensity. 4 To adjust the intensity, press the foot pedal and move it to the side.
  • Page 88 4 Only use KaVo-approved handpieces with a transmission ratio of 1:1, 3:1 or 8:1. 4 Use only the KaVo 1:1 shanks listed below in conjunction with the KaVo 1:1 or 3:1 heads listed below or the KaVo 8:1 or 1:1 contra-angle handpieces:...

  • Page 89: Calling Up Endo Mode

    Instructions for use ESTETICA E30 4 Operation | 4.12 Using the KL 703 LED in ENDO mode (optional accessory) Technical specifications for the KL 703 LED in ENDO mode NOTE The technical specifications apply to the KL 703 LED in ENDO mode.

  • Page 90: Set Torque Mode

    Instructions for use ESTETICA E30 4 Operation | 4.12 Using the KL 703 LED in ENDO mode (optional accessory) Parameters Values Speed 100 to 6000 rpm Torque Transmission ratio 1:1: 0.15 to 2.50 Transmission ratio 3:1: 0.4 to 8.0 Ncm CAUTION Incorrectly set parameters.

  • Page 91: Changing Settings In The Menu

    Instructions for use ESTETICA E30 4 Operation | 4.13 Using the USB interface 4 To stop this, release the foot pedal. 4 Press the foot pedal. ð The motor rotates clockwise again. 4.12.4 Changing settings in the menu Also refer to: 4.8.6 ENDO menu (optional), Page 65...

  • Page 92: Using The Camera

    (TM-table / T-table / Cart) or in the dentist element (S-table). Only the cameras approved/enclosed in the delivery by KaVo may be connected to these interfaces. The USB port in the back is connected directly to the back-of-the-head PC (in the presence of the corresponding wiring).
  • Page 93 Instructions for use ESTETICA E30 4 Operation | 4.16 Connector for third-party equipment Media connectors Air inlet pressure 4.75 ± 0.25 bar Air consumption max. 50 Nl/min Water inlet pressure 2.5 ± 0.1 bar Water inflow 100 ml/min Electrical connectors...

  • Page 94: Reprocessing Methods Din En Iso 17664

    5 Reprocessing methods DIN EN ISO 17664 5 Reprocessing methods DIN EN ISO 17664 NOTE The reprocessing methods are specified in the Care instructions. Please note also the corresponding hygiene video on the KaVo website. Please use the QR code or the following link: https://www.kavo.com/hygiene-easy-way CAUTION Health hazard and property damage due to non-compliance with servi- cing schedule.

  • Page 95: Accessories And Kits

    Instructions for use ESTETICA E30 6 Accessories and kits | 6.1 Equipment 6 Accessories and kits WARNING Application of un-authorised accessories or un-authorised modifica- tions of the product. Accessories that have not been approved and/or inadmissible modifications of the product could lead to hazards and/or personal injury or property damage.

  • Page 96: Patient Chair

    Instructions for use ESTETICA E30 6 Accessories and kits | 6.2 Patient chair Description Description Connector for third-party The third-party device connector allows approved equipment dental devices from third-party manufacturers to be used on the KaVo treatment centre. Additional device adapter Adapter on the light mounting post for connection of third-party devices.

  • Page 97: Safety Check - Test Instructions

    NOTE KaVo offers a medical device book for keeping an inventory and recording es- sential master data on the medical device. The medical device book is only available in German (mat. no. 0.789.0480).

  • Page 98: Notes For Medical Electrical Systems

    Instructions for use ESTETICA E30 7 Safety check - Test instructions | 7.1 Introduction NOTE The following tests and measurements must be documented, for example in the medical device book. We recommend using the templates at the end of the document.

  • Page 99: Testing Intervals

    Instructions for use ESTETICA E30 7 Safety check - Test instructions | 7.1 Introduction Measurements ▪ Measurement of the protective earth resistance in accordance with IEC 62353 ▪ Measurement of the equipment leakage current - Alternative measuring method in accordance with IEC 62353 ▪...

  • Page 100: Instructions For The Safety Check

    Instructions for use ESTETICA E30 7 Safety check - Test instructions | 7.2 Instructions for the safety check 7.2 Instructions for the safety check 7.2.1 Preparatory measures to be undertaken on the device WARNING Electrical power. Death or bodily injury from electric shock.
  • Page 101 Instructions for use ESTETICA E30 7 Safety check - Test instructions | 7.2 Instructions for the safety check ▪ Are there any indications of insufficient safety? Check of the ratings of fuses that are accessible from outside NOTE A check of whether or not the main fuse on the mains socket corresponds to the rated values is no longer included in DIN EN 62353:2015 [IEC 62353:2015].
  • Page 102 Instructions for use ESTETICA E30 7 Safety check - Test instructions | 7.2 Instructions for the safety check Site for affixing the rating plate and serial number plate ① Serial number plate of the chair ② Rating plate Attachment locations: for serial number plate...

  • Page 103: Measurements

    NOTE The following measuring aid can be ordered: KaVo measuring cable (mat. no. 0.411.8811) Using the measuring cable ① the unit is disconnected from the mains supply and connection of the treatment centre to the safety tester is enabled. Hence, the customer-provided power supply cord L &...
  • Page 104 4 Disconnect plug X2 from the unit control and plug it into the matching con- nector X2 of the KaVo measuring cable (material number 0.411.8811). 4 Connect the second plug X2 of the KaVo measuring cable to the unit control (X2).
  • Page 105 Instructions for use ESTETICA E30 7 Safety check - Test instructions | 7.2 Instructions for the safety check 4 Disconnect L + N on terminals X8.L Mains (mains supply) and X8.N Mains (mains supply). 4 Connect the safety tester directly to terminals X8.L Mains (mains supply) and X8.N Mains (mains supply) and protective earth conductor terminal...
  • Page 106 ACPs on the treatment centre No ACPs need to be connected to the protective conductor (PE) during the measurement on the treatment centre ESTETICA E30, as all relevant parts are connected to the PE at the factory and are included in the test.
  • Page 107 Instructions for use ESTETICA E30 7 Safety check - Test instructions | 7.2 Instructions for the safety check NOTE Additional measuring points SL X need to be taken into consideration in the presence of accessories: e.g. accessories such as connection to external devices, camera module of the patient communication system, etc.
  • Page 108 Instructions for use ESTETICA E30 7 Safety check - Test instructions | 7.2 Instructions for the safety check 4 Check firm seating of the PE headless screw ②. 4 Scan headless screw ② with the measuring probe. ① Dentist element S: installation site ②...
  • Page 109 Instructions for use ESTETICA E30 7 Safety check - Test instructions | 7.2 Instructions for the safety check ① Assistant element: Fastening screw on the bottom of the assist- ant element Scanning the operating light with the test tip ① Fastening screw of the handle support when the gripping sleeve has been...
  • Page 110 Instructions for use ESTETICA E30 7 Safety check - Test instructions | 7.2 Instructions for the safety check WARNING Danger to persons due to insufficient diligence during the safety checks and testing. Death or injury from electric shock. 4 Conduct test for leakage current in Protection Class I devices only after the protective earth test has been passed.

  • Page 111: Functional Tests

    Instructions for use ESTETICA E30 7 Safety check - Test instructions | 7.2 Instructions for the safety check NOTE A separate measurement is not usually required for type B applied parts. The applied parts are connected to the casing (see diagram) and included in the measurement of the leakage current of the casing, whereby the same per- missible values are applicable.

  • Page 112: Assessment And Documentation

    Date and signature of the tester There is a copy of a test report template at the end of the chapter on Safety Checks. KaVo recommends to use this template. NOTE Following testing, repair or adjustment, it must be verified whether the ME equipment or ME system has been restored to the state that is required for the intended usage before it is employed once again.

  • Page 113: Test Protocol For The Safety Check

    Instructions for use ESTETICA E30 7 Safety check - Test instructions | 7.3 Test protocol for the safety check 7.3 Test protocol for the safety check Test Protocol - Safety Check (Test of safety and function according to §7 section 3 Medical Device Operation Ordinance)

  • Page 114: Annex - Additional Measuring Points

    Instructions for use ESTETICA E30 8 Annex - Additional measuring points | 8.1 Additional scan points SL X for the protective earth measurement 8 Annex - Additional measuring points NOTE Regarding accessories, which are not listed here, comply with the specifica- tions of the relevant instructions for use.
  • Page 115 Instructions for use ESTETICA E30 8 Annex - Additional measuring points | 8.1 Additional scan points SL X for the protective earth measurement Ceiling adapter for operating light assembly kit ① Base plate for the ceiling adapter ② Surroundings of the protective conductor connector ③...

  • Page 116: Additional Measuring Points Ap X For The Eul/Epa Measurement

    Instructions for use ESTETICA E30 8 Annex - Additional measuring points | 8.2 Additional measuring points AP X for the EUL/EPA measurement 8.2 Additional measuring points AP X for the EUL/EPA measurement Scanning the PIEZO ultrasonic scaler with test probe Exemplary depiction of the measuring point on the PiezoLED ultrasonic scaler ①...

  • Page 117: Troubleshooting

    Instructions for use ESTETICA E30 9 Troubleshooting 9 Troubleshooting NOTE In case of malfunction, consult the separate instructions for the use and care of the respective instruments (e.g., turbine, motor, camera, etc.). Malfunction Cause Remedy Nothing works. Main switch is off.
  • Page 118 Instructions for use ESTETICA E30 9 Troubleshooting Malfunction Cause Remedy 4 Clean the spray nozzles according to the Spray at the instruments is The spray nozzles are insufficient. dirty/clogged. accompanying instrument operating in- structions. Leaks in instruments. O-rings at MULTIflex or 4 Replace O-rings.

  • Page 119: 10Information Concerning The Electromagnetic Compatibility According To En Iec

    Instructions for use ESTETICA E30 10 Information concerning the electromagnetic compatibility according to EN IEC 60601-1-2 | 10.1 Operating envir- onment and EMC warning notes 10 Information concerning the electromagnetic compatibility according to EN IEC 60601-1-2 10.1 Operating environment and EMC warning notes This product is neither life-sustaining nor coupled to the patient.
  • Page 120 Instructions for use ESTETICA E30 10 Information concerning the electromagnetic compatibility according to EN IEC 60601-1-2 | 10.2 Results of the electromagnetic tests Requirement Class / test level [30 MHz – 1000 MHz] DIN EN 61000-3-2 VDE 0838-2 / 03.2010...
  • Page 121 Instructions for use ESTETICA E30 10 Information concerning the electromagnetic compatibility according to EN IEC 60601-1-2 | 10.2 Results of the electromagnetic tests Requirement Class / test level 6 V in amateur radio bands DIN EN 61000-4-8 VDE 0847-4-8 / 11.2010...

Table of Contents
