Summary of Contents for KaVo eSCALER

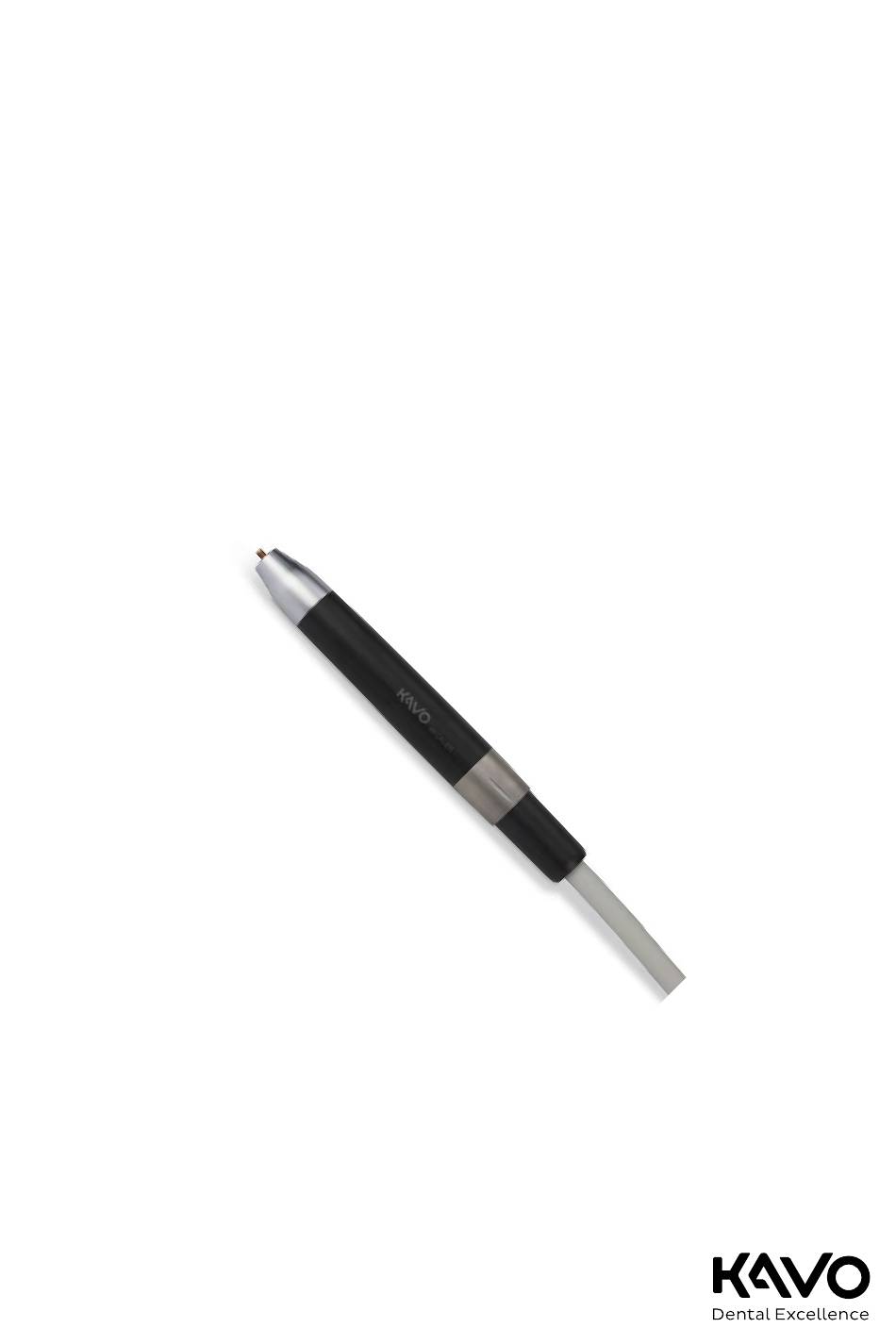

- Page 1 Instructions for use KaVo eSCALER – 1.014.0600...
- Page 2 Distributed by: Manufacturer: KaVo Dental GmbH KaVo Dental GmbH Bismarckring 39 Bismarckring 39 88400 Biberach 88400 Biberach Germany Germany Phone +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...
-
Page 3: Table Of Contents
Instructions for use KaVo eSCALER – 1.014.0600 Table of contents Table of contents 1 User instructions....................... 2 Safety ..........................2.1 Infection hazard......................8 2.2 Explosion hazard......................8 2.3 Electrical shock ......................8 2.4 Improper use ....................... 9 2.5 Technical condition......................9 2.6 Electromagnetic fields.................... - Page 4 Instructions for use KaVo eSCALER – 1.014.0600 Table of contents 7.4.2 pre-cleaning ....................33 7.4.3 Automated internal and external cleaning and internal and external disinfection ..34 7.4.4 Automated drying .................... 34 7.5 Care products and systems – Servicing ................35 7.6 Assembly of eSCALER....................
-
Page 5: User Instructions
Dental GmbH. All other trademarks are property of their respective owners. KaVo Original Factory Repair In the event of a repair, please ship your product to the KaVo Original Factory Repair using www.kavobox.com. KaVo Technical service If you have any technical questions or complaints, please contact the KaVo... - Page 6 Instructions for use KaVo eSCALER – 1.014.0600 1 User instructions Sterilisable by steam Thermodisinfectable Information on the packaging Material number Serial number Unique Device Identifier Manufacturer Note: Please note accompanying documents Follow the electronic instructions for use Follow instructions for use...
-
Page 7: Hazard Levels
Instructions for use KaVo eSCALER – 1.014.0600 1 User instructions Hazard levels The warning and safety notes in this document must be observed to prevent personal injury and material damage. The warning notes are designated as shown below: HAZARD In cases which – if not prevented – directly lead to death or severe injury. -
Page 8: Safety
4 Do not use the product in the vicinity of flammable gases. 2.3 Electrical shock Connecting a non-KaVo system to the medical device can lead to electrical shock and injury to patient, user and third parties. 4 Make sure to combine the product only with a treatment centre / control unit that has been released by KaVo. -
Page 9: Improper Use
4 After treatment, place the medical device properly in the cradle. 2.5 Technical condition A damaged product or damaged or NOT KaVo original components could injure patients, users or third parties. 4 Only operate devices or components if they show no signs of damage on the outside. -
Page 10: Electromagnetic Fields
4 Use original KaVo spare parts only. 4 Do not use KaVo eSCALER and tips with products manufactured by third parties. There is a risk of confusing the tips and tips from other manufacturers. -
Page 11: Qualification Of Personnel
Define the service interval depending on the frequency of use. As a result of the use of NON-KaVo original spare parts during the repair, parts may become detached and injure patients, users or third parties. This may res- ult in aspiration, swallowing of parts and possibly even a risk of suffocation. -
Page 12: Product Description
▪ A medical device according to relevant national statutory regulations. Scaler tips The KaVo eSCALER Tips Scaling are used in conjunction with the KaVo eSCALER handpiece for the following applications: ▪ Prophylaxis ▪... -
Page 13: Kavo Escaler - 1.014.0600
④ eSCALER tion) Tube (Mat. no. 1.014.5736) Dental handpiece, front side and rear side KaVo eSCALER (Mat. no. 1.014.0600), front side and rear side KaVo eSCALER Tips - Scaling eSCALER Tip K201 (Mat. no. 1.014.6923) ① eSCALER Tip K202 (Mat. no. 1.014.6924) ②... -
Page 14: Symbols On The Product
Instructions for use KaVo eSCALER – 1.014.0600 3 Product description | 3.3 Symbols on the product 3.3 Symbols on the product ① CE mark for medical devices ⑥ Follow instructions for use Sterilisable by steam Serial number ② ⑦ Thermodisinfectable Material number ③... -
Page 15: Technical Specifications
KaVo eSCALER control. NOTE Please comply with the Instructions for Use of the product to which the KaVo eSCALER is to be connected. Check the suitability of the product for op- eration of the KaVo eSCALER. 15 / 40... -
Page 16: Ambient Conditions
Instructions for use KaVo eSCALER – 1.014.0600 3 Product description | 3.5 Transportation and storage conditions NOTE Technical specifications, such as oscillating speed and oscillating frequency, depend on the Piezo electronics used and may deviate from the data given if other controls are used in combination with the handpiece. -
Page 17: Putting Into Service And Shutting Down
Dispose of and recycle the packaging appropriately in accordance with current packaging law, employing waste management / recycling companies. Comply with the comprehensive return system. KaVo has had its packaging licensed for this purpose. Please comply with the regional public waste-disposal system. -
Page 18: Attaching The Dental Handpiece
Instructions for use KaVo eSCALER – 1.014.0600 4 Putting into service and shutting down | 4.1 Attaching the dental handpiece 4.1 Attaching the dental handpiece WARNING Detaching the medical device during treatment. A medical device that is not properly locked can detach from the coupling dur- ing treatment. -
Page 19: Screw On The Tip
NOTE When the KaVo eSCALER is not in use, the torque wrench should be placed on the tip to protect against injuries for safety reasons. WARNING Tip falls off during the treatment. -
Page 20: Checking The Amount Of Water
The spray water may only be turned off if the intended use of the tip makes this necessary and this is explicitly indicated in the instructions for use. 4 Rotate the spray ring of the KaVo eSCALER hose to adjust the amount of cooling water in a continuous manner. -
Page 21: Operation
Instructions for use KaVo eSCALER – 1.014.0600 5 Operation | 5.1 General operating settings on the treatment unit 5 Operation CAUTION Working with dry tips. The working tip of the instruments heats up very quickly during dry work. 4 Ensure that there is sufficient rinsing fluid at all times. -
Page 22: Tips: Rapid Overview
Instructions for use KaVo eSCALER – 1.014.0600 5 Operation | 5.3 Tips: Rapid Overview 5.3 Tips: Rapid Overview CAUTION Hazard from damage to the enamel. Using power settings above the recommended level is associated with the haz- ard of damage to the enamel and premature tip breakage. - Page 23 Instructions for use KaVo eSCALER – 1.014.0600 5 Operation | 5.3 Tips: Rapid Overview Product identification Indication Recommended power setting eSCALER Tip K203 KaVo eSCALER Tips - Periodontic therapy eSCALER Tip K214 Delicate tip for removal of sub- gingival concrements.
-
Page 24: Checking For Malfunctions And Troubleshooting
KaVo spare parts comply with the specification. NOTE If a repair is done with NON-KaVo original spare parts, this may constitute a device modification that leads to the loss of CE conformity. In the event of damage, the company performing the service or the operator is responsible. - Page 25 4 Check the tip for wear and replace it, if rectly. required. 4 Check the handpiece with a different tip. 4 Ship the handpiece and tip to a KaVo au- thorised repair centre. 4 Ensure that all fragments are removed. Broken tip...
-
Page 26: Clean The Spray Water Channel
4 Check the spray water volume and, if necessary, clean the spray water channel with the nozzle needle (mat. no. 0.410.0921). 4 Clean the spray water channel of the eSCALER tip using the nozzle needle, by inserting the nozzle needle into the spray water channel of the tip and opening it with gentle rotational movements. -
Page 27: Replace The Light Guide
6.2.3 Replace the LED module NOTE The KaVo eSCALER cannot be used without inserted LED module. Replace the eSCALER LED module in event of complete failure of the light / illu- mination. 4 Unscrew the tip. 4 Unscrew the front gripping sleeve. -
Page 28: Exchanging The O-Rings
4 Press the O-ring between your fingers to form a loop. 4 Push the O-ring to the front, and remove it. 4 Spray a lint-free cloth with KaVo Spray, apply it to the new O-rings and in- sert them in the recesses. -
Page 29: Reprocessing Steps In Accordance With Iso 17664-1 / Iso 17664-2
7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.1 Preparations at the site of use 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 NOTE The following components of the KaVo eSCALER must be completely repro- cessed after every use: - Tips - Torque wrench... -
Page 30: Overview Of The Reprocessing Options
Instructions for use KaVo eSCALER – 1.014.0600 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.2 Overview of the reprocessing options ▪ Cloths for wiping the medical device. 4 Spray the disinfectant on a cloth, then wipe down the medical device and al- low the disinfectant to act according to the instructions of the disinfectant manufacturer. -
Page 31: Manual Reprocessing
Instructions for use KaVo eSCALER – 1.014.0600 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.3 Manual Reprocessing 7.3 Manual Reprocessing WARNING Incomplete disinfection. Patients, users or third parties could be infected by contaminated medical devices. -
Page 32: Manual Drying
4 Allow the disinfectant to act for 5 minutes. 7.3.3 Manual drying Use KaVo DRYspray for subsequent drying of the water channels. 4 Cover the medical device with the KaVo Cleanpac bag, and place it on the corresponding care adapter. 4 Hold the can vertically. -
Page 33: Preparations For Automated Reprocessing / Disassembly
Instructions for use KaVo eSCALER – 1.014.0600 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.4 Automated reprocessing 7.4.1 Preparations for automated reprocessing / disassembly 4 Unscrew the tip. 4 Unscrew the front gripping sleeve. 4 Remove the light guide. -
Page 34: Automated Internal And External Cleaning And Internal And External Disinfection
NOTE Please comply with the instructions for use of the washer disinfector. 4 In order not to affect the KaVo medical device, make sure that the product is dry on the inside and outside after completion of the cycle. 34 / 40... -
Page 35: Care Products And Systems - Servicing
Instructions for use KaVo eSCALER – 1.014.0600 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.5 Care products and systems – Servicing 7.5 Care products and systems – Servicing CAUTION Improper care. Malfunction or property damage. -
Page 36: Sterilisation
Instructions for use KaVo eSCALER – 1.014.0600 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.8 Sterilisation 7.8 Sterilisation Sterilisation in a steam steriliser (autoclave) in accordance with EN 13060 / EN ISO 17665-1 CAUTION Contact corrosion due to moisture. -
Page 37: Accessories And Consumables
Instructions for use KaVo eSCALER – 1.014.0600 8 Accessories and consumables 8 Accessories and consumables Material summary Mat. no. eSCALER Tip K201 1.014.6923 eSCALER Tip K202 1.014.6924 eSCALER Tip K203 1.014.6925 eSCALER Tip K214 1.014.8979 eSCALER torque wrench 1.014.7550 eSCALER wear card 1.015.2051... -
Page 38: Information About Electromagnetic Compatibility
The electromagnetic compatibility according to EN IEC 60601-1-2 was validated for the final system, consisting of the dental treatment centre, the integrated KaVo eSCALER and the corresponding accessories. For more information on electromagnetic compatibility, please refer to the instructions for use of the dental treatment centre. -
Page 39: 10Terms And Conditions Of Warranty
12 months from the date of the invoice, subject to the following conditions: With regard to justified complaints KaVo grants warranty in the form of a free of charge repair or delivery of a replacement. Other claims of any kind whatso- ever, in particular with respect to compensation, are excluded.
