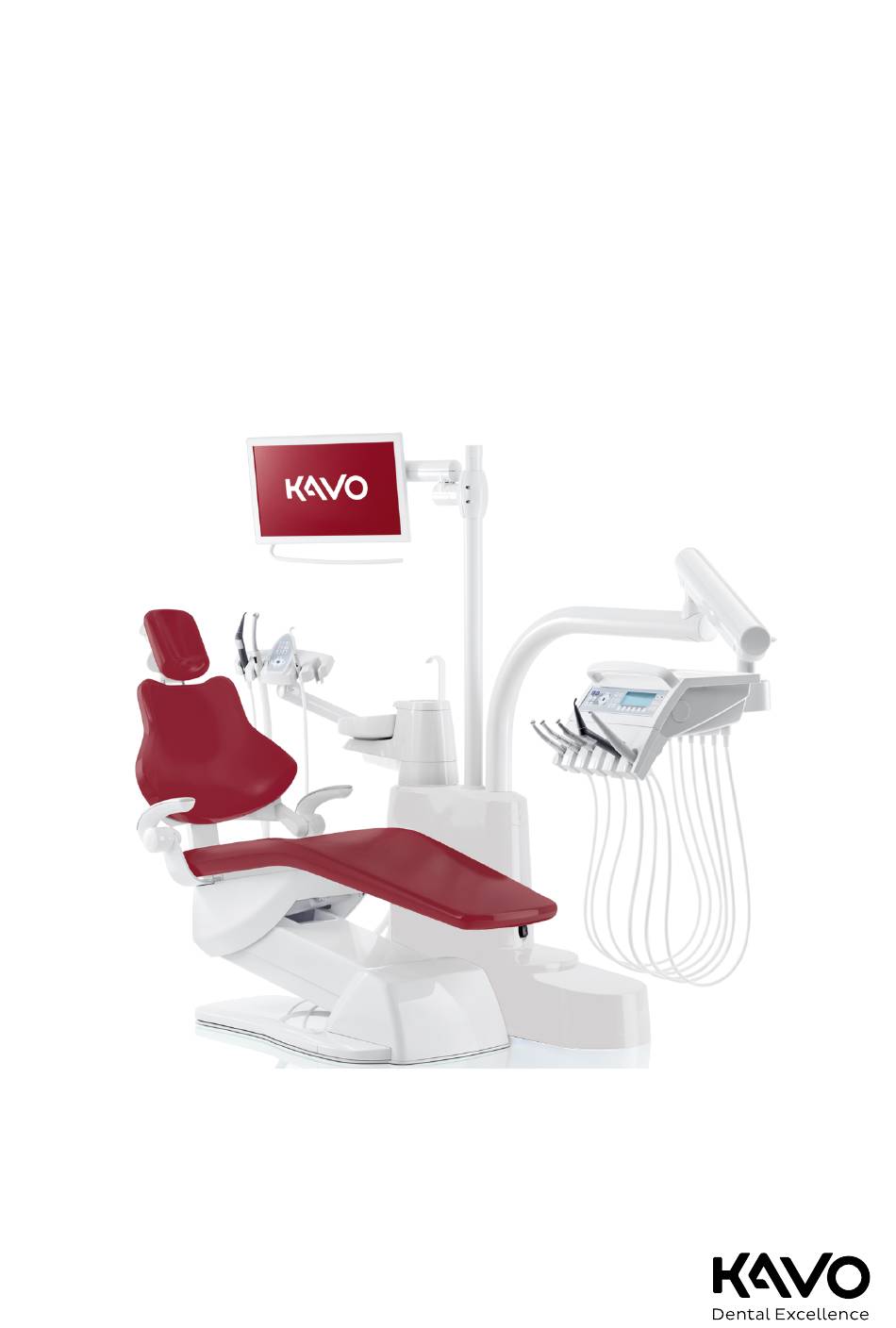

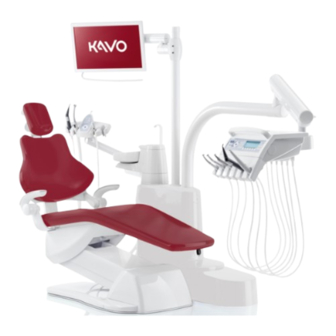

  • Page 1 Instructions for use ESTETICA E50 Life...

  • Page 2: Using The Kl 703 Led / Kl 702 In Endo Mode (Optional Accessory)

    Distributed by: Manufacturer: KaVo Dental GmbH KaVo Dental GmbH Bismarckring 39 Bismarckring 39 88400 Biberach 88400 Biberach Germany Germany Phone +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...

  • Page 3: Table Of Contents

    2.9 Service and repair ......................12 3 Description of the product....................13 3.1 Treatment centre – Versions................... 13 3.1.1 KaVo ESTETICA E50 Life TM ................13 3.1.2 KaVo ESTETICA E50 Life S ................13 3.2 Patient chair Standard and COMPACTchair ............... 14 3.3 Unit body with patient element (optional).................
  • Page 4 Instructions for use ESTETICA E50 Life Table of contents 4.5 Moving the patient element (optional)................57 4.5.1 Moving the patient element (optional) ..............57 4.6 Moving the assistant element..................57 4.6.1 Adjusting the height of the Standard assistant element ........57 4.6.2...
  • Page 5 Instructions for use ESTETICA E50 Life Table of contents 4.12.1 General ......................108 4.12.2 Connecting the coolant..................109 4.12.3 Activating the pump for the respective holder (enabling) and regulating the pump ..110 4.12.4 Changing the coolant container................111 4.12.5 Attaching and detaching the pump ..............111 4.12.6 Replacing the hose set sterile................113...

  • Page 6: User Instructions

    1 User instructions | 1 User instructions Dear user, Congratulations on purchasing this KaVo quality product. By following the notes below you will be able to work smoothly, economically and safely. © Copyright by KaVo Dental GmbH All other trademarks are property of their respective owners.
  • Page 7 Instructions for use ESTETICA E50 Life 1 User instructions | HIBC Code EAC conformity mark (Eurasian Conformity) Transportation and storage conditions (temperature range) Transportation and storage conditions (air pressure) Transportation and storage conditions (Humidity) Protect from moisture (Keep dry) Protect from impact...

  • Page 8: Terms And Conditions Of Warranty

    Please comply with the regional public waste-disposal system. 1.1 Terms and conditions of warranty KaVo provides the final customer with a warranty that the product cited in the transfer form will function properly and guarantees zero defects in the material...

  • Page 9: Safety

    Instructions for use ESTETICA E50 Life 2 Safety | 2.1 Explosion hazard 2 Safety The instructions for use are an integral part of the product and must be read carefully prior to use and must be accessible at all times.

  • Page 10: Electrical Shock

    60601-1 type BF for applied parts and the patient at the same time. 2.4 Technical condition A damaged product or damaged or NOT KaVo original components could injure patients, users or third parties. 4 Only operate devices or components if they show no signs of damage on the outside.

  • Page 11: Use

    Instructions for use ESTETICA E50 Life 2 Safety | 2.6 Use 4 Remove electronic devices such as e.g. computer storage media, hearing aids etc. during operation. 4 Comply with the tables of electromagnetic compatibility during installation and commissioning. 4 If the device needs to be used in the immediate vicinity of other equipment, monitor the device or system for malfunctions.

  • Page 12: Accessories And Combination With Other Equipment

    Repairs, servicing and safety checks may only be performed by trained service personnel. The following persons are authorised to do this: ▪ Service technicians of KaVo branches after the appropriate product training ▪ Service technicians of KaVo authorised dealers after the appropriate product...

  • Page 13: Description Of The Product

    Instructions for use ESTETICA E50 Life 3 Description of the product | 3.1 Treatment centre – Versions 3 Description of the product 3.1 Treatment centre – Versions 3.1.1 KaVo ESTETICA E50 Life TM 3.1.2 KaVo ESTETICA E50 Life S 13 / 152...

  • Page 14: Patient Chair Standard And Compactchair

    Instructions for use ESTETICA E50 Life 3 Description of the product | 3.2 Patient chair Standard and COMPACTchair 3.2 Patient chair Standard and COMPACTchair ① Headrest ② Backrest ③ Chair base ④ Bench ⑤ Arm rest (optional) 14 / 152...

  • Page 15: Unit Body With Patient Element (Optional)

    Instructions for use ESTETICA E50 Life 3 Description of the product | 3.3 Unit body with patient element (optional) 3.3 Unit body with patient element (optional) ① Patient element (optional) ② Unit body The central control is housed in the unit body.

  • Page 16: Using The Usb Interface

    Instructions for use ESTETICA E50 Life 3 Description of the product | 3.3 Unit body with patient element (optional) E50 Life with Centramat ① Patient element (optional) ② Unit body The central control is housed in the unit body. ③ Centramat ④...

  • Page 17: Dentist Element - Versions

    Instructions for use ESTETICA E50 Life 3 Description of the product | 3.4 Dentist element – Versions 3.4 Dentist element – Versions 3.4.1 TM table ① Handle ② Triple function handpiece or multi- functional handpiece ③ Turbine handpiece (MULTIflex ④ INTRA LUX Motor KL 703 or...
  • Page 18 Instructions for use ESTETICA E50 Life 3 Description of the product | 3.4 Dentist element – Versions ① Site for affixing the USB interface ② Triple function handpiece or multi- (optional accessory) functional handpiece ③ Turbine handpiece (MULTIflex ④ INTRAlux Motor KL 703 LED or IN-...

  • Page 19: Assistant Element - Versions

    Instructions for use ESTETICA E50 Life 3 Description of the product | 3.5 Assistant element – Versions 3.5 Assistant element – Versions 3.5.1 Assistant element – Standard/Assistant element – Short ① Triple function or multifunctional ② Spray mist suction handpiece ③...

  • Page 20: Assistant Element Right, Left (Optional)

    Instructions for use ESTETICA E50 Life 3 Description of the product | 3.5 Assistant element – Versions 3.5.2 Assistant element right, left (optional) Assistant element right, left with height adjustment (optional) ① Triple function handpiece ② Spray mist suction ③ Control element ④...

  • Page 21: Triple Function Handpiece (3F Handpiece)

    Instructions for use ESTETICA E50 Life 3 Description of the product | 3.6 Triple function handpiece (3F handpiece) 3.6 Triple function handpiece (3F handpiece) ① MF handpiece hose ② Gripping sleeve ③ Media keys (air/water) ④ Labelled blue: Triple function handpiece (3F handpiece) ⑤...

  • Page 22: Control Elements

    Instructions for use ESTETICA E50 Life 3 Description of the product | 3.9 Control elements 3.9 Control elements 3.9.1 Dentist element TM table Dentist element Group of keys for the dental chair Group of keys for illumination Group of keys for hygiene...

  • Page 23: Assistant Element

    Instructions for use ESTETICA E50 Life 3 Description of the product | 3.9 Control elements 3.9.3 Assistant element Group of keys for hygiene Group of keys for illumination Group of keys for the timer Group of keys for the dental chair 3.9.4 Groups of keys...
  • Page 24 Instructions for use ESTETICA E50 Life 3 Description of the product | 3.9 Control elements Group of keys for illumination/handpieces Description Control element "X-ray viewer" key Dentist element "Operating light dim- Dentist element and as- ming" key sistant element "Operating light" key...

  • Page 25: Foot Control

    Instructions for use ESTETICA E50 Life 3 Description of the product | 3.9 Control elements Description Control element "Timer 4" key Dentist element only 3.9.5 Foot control The foot control foot switches have dual assignments. The function of the foot control depends on if an instrument is mounted or removed.

  • Page 26: Power And Rating Plates

    Instructions for use ESTETICA E50 Life 3 Description of the product | 3.10 Power and rating plates 3.10 Power and rating plates Rating plates Internal attachment site for rating plate External attachment site for rating plate Serial number Material number...
  • Page 27 Instructions for use ESTETICA E50 Life 3 Description of the product | 3.10 Power and rating plates Fuse rating: The "?????" depend on the mains voltage and are either T10 H or T6.3H. 100, 110, 120, 130 V~ = T10H 220, 230, 240 V~ = T6.3H...

  • Page 28: Technical Specifications

    Instructions for use ESTETICA E50 Life 3 Description of the product | 3.11 Technical specifications Miscellaneous signs Attachment site back-side of wireless foot control Follow instructions for use Labelling and marking of the triple function handpiece and multifunctional handpiece Marks and labels of the triple-function handpiece ①...
  • Page 29 Instructions for use ESTETICA E50 Life 3 Description of the product | 3.11 Technical specifications Electrical system Electrical lead 3 x 2.5 mm Free end above the floor 1000 mm Input voltage 100/110/120/130/220/230/240 V AC Frequency 50/60 Hz Input voltage set by the manufacturer see rating plate Power consumption at 100 to 240 V 100 to 600 VA –...
  • Page 30 Instructions for use ESTETICA E50 Life 3 Description of the product | 3.11 Technical specifications Wireless foot control RF Technology proprietary 2.4 GHz ISM frequency band system Modulation GFSK Protocol KaVo specific RF Frequencies 2404MHz - 2478MHz (38 Channels) RF Power...
  • Page 31 2.5 W Instruments NOTE Information according to DIN EN ISO 7494-2. NOTE These values deviate from the KaVo specific basic setting. Observe pressure and flow values according to the technician's instructions for the treatment centre. Scaler: a) Air flow...
  • Page 32 Arrangement of the air and water connections of dental handpieces MULTIflexcouplings, triple function handpieces, multifunctional handpieces and air motors are designed in accordance with DIN EN ISO 9168. The KaVo specific connection must be operated with original KaVo equipment. Water supply NOTE If the water is very hard (above 12 °dH), a water softening device based on...
  • Page 33 4 ▶ If the Water bottle kit is used with the enclosed dosing attachment (Mat. no. 1.002.0287), add the proper amount of KaVo OXYGENAL 6 (Mat. no. 0.489.3451) with each filling. For the correct amount, please refer to the in- structions of the dosing attachment for water reprocessing.
  • Page 34 Instructions for use ESTETICA E50 Life 3 Description of the product | 3.11 Technical specifications Air supply WARNING Non-compliance with national guidelines concerning the quality of the dental air. Infection hazard. 4 Note and comply with the national guidelines concerning the quality of the dental air - if any.
  • Page 35 Instructions for use ESTETICA E50 Life 3 Description of the product | 3.11 Technical specifications Cannula connecting pieces according to DIN EN ISO 7494 - 2 Diameter of cannula of saliva ejector 7 mm and surgical suction Diameter of cannula of spray mist suc- 15 mm...

  • Page 36: Intended Use

    In addition, the multifunc- tional handpiece supplies light and heated media. ▪ These KaVo products are designed for use in dentistry only and must be used by trained medical personnel only. The installation is done exclusively in a fixed place in premises used for medical purposes.
  • Page 37 The USB interfaces of the system may only be connected to IT devices ap- proved by KaVo. NOTE Connecting IT equipment to the medical electrical system make sure to com- ply with EN 60601-1. NOTE Charge the wireless foot control with the charger supplied by KaVo only. 37 / 152...
  • Page 38 ▪ these Instructions for use Regular servicing and safety checks are essential for the permanent assurance of the operating and functional safety of the KaVo product and for the preven- tion of damage and hazards. Testing and maintenance intervals: Maintenance must be performed once a year, the safety checks at intervals of 2 years.
  • Page 39 Dispose of and recycle the packaging appropriately in accordance with current packaging law, employing waste management / recycling companies. Comply with the comprehensive return system. KaVo has had its packaging licensed for this purpose. Please comply with the regional public waste-disposal system.

  • Page 40: Operation

    Instructions for use ESTETICA E50 Life 4 Operation | 4 Operation Please note also the corresponding instruction and ergonomics videos on the KaVo website. Please use the QR codes or follow the corresponding link: Instruction video: https://www.kavo.com/de/einweisung Ergonomics video: https://www.kavo.com/de-de/rueckenfreundliches-arbeiten WARNING Explosion Electrical sparks in the product can lead to explosion or fire.

  • Page 41: Switching The Device On And Off

    Instructions for use ESTETICA E50 Life 4 Operation | 4.1 Switching the device on and off irregular running noises excessive vibration overheating CAUTION Loading the instrument hoses with stickers. Handpiece hoses can burst. 4 Do not affix stickers or adhesive tape.

  • Page 42: Adjusting The Patient Chair

    Allergic reactions and skin irritation. To improve hygiene and increase the service life, KaVo recommends to use ap- propriate covers (e.g. head protection bags) to protect the cushions that are regularly in contact with the skin of the patient. Sweat or hair and skin care products can be a serious strain on the cushions.

  • Page 43: Additional Measuring Points Ap X For The Eul/Epa Measurement

    Instructions for use ESTETICA E50 Life 4 Operation | 4.2 Adjusting the patient chair Armrest for patient chair COMPACTchair To make it easier for the patient to sit in the chair, the armrest can be swung 4 Swivel the arm rest forward 4 Then swivel the armrest back into place.

  • Page 44: Adjusting The Headrest

    Instructions for use ESTETICA E50 Life 4 Operation | 4.2 Adjusting the patient chair 4.2.2 Adjusting the headrest Setting the knob of the double-jointed headrest CAUTION Adjusting the headrest. Injury to the neck muscles. 4 Make sure that the patient is aware of the headrest being adjusted.
  • Page 45 Instructions for use ESTETICA E50 Life 4 Operation | 4.2 Adjusting the patient chair 4 To swing the headrest, turn the locking dial to the left, move the headrest into position, and turn the dial to the right to lock it.

  • Page 46: Positioning The Patient Chair Manually

    Instructions for use ESTETICA E50 Life 4 Operation | 4.2 Adjusting the patient chair 4.2.3 Positioning the patient chair manually CAUTION Danger of injury from overload or dynamic load. The patient chair may be damaged by overloading it. 4 Do not subject the (patient chair Standard to a load exceeding 185 kg /pa- tient chair COMPACTchair 135 kg).

  • Page 47: Automatic Positioning Of Patient Chair

    Instructions for use ESTETICA E50 Life 4 Operation | 4.2 Adjusting the patient chair Positioning the chair and backrest manually using the foot control The cross switch of the foot control assumes the function of the button wheel (function level 1) on the dentist element during manual positioning of the pa- tient chair.
  • Page 48 Instructions for use ESTETICA E50 Life 4 Operation | 4.2 Adjusting the patient chair Automatic positions can be saved, and the saved positions can be recalled by the push of a button. The chair and backrest motions proceed simultaneously in the automatic pro- gramme.

  • Page 49: Operating Environment And Emc Warning Notes

    Instructions for use ESTETICA E50 Life 4 Operation | 4.2 Adjusting the patient chair Function Move to most recent position before actuation of the SP. Move to automatic position 0. Move to automatic position 1. Move to automatic position 2.
  • Page 50 Instructions for use ESTETICA E50 Life 4 Operation | 4.2 Adjusting the patient chair Saving automatic positions through the assistant element NOTE The automatic position "Most recent position" is saved to the "LP" button. Press the "LP" button for the chair to automatically move to the last position before the rinsing position.

  • Page 51: Safety Shutdown

    Instructions for use ESTETICA E50 Life 4 Operation | 4.2 Adjusting the patient chair Moving the chair while the instrument is removed NOTE If an instrument is removed, the chair functions of the foot control are blocked. The locking can be released by briefly pressing the stirrup switch.
  • Page 52 Instructions for use ESTETICA E50 Life 4 Operation | 4.2 Adjusting the patient chair CAUTION Pinching from the patient chair. The safety shutdown of the patient chair is activated by lifting the respective component. Depending on the patient's body weight and the leverage, more force can be exerted on the object to be triggered than is necessary to trigger the switching function.
  • Page 53 Instructions for use ESTETICA E50 Life 4 Operation | 4.2 Adjusting the patient chair Safety shutdown actu- LED on assistant ele- LED on dentist ele- ated ment ment ① Patient unit pivoted over the patient chair ② Assistant element ③ Backrest ④...
  • Page 54 Instructions for use ESTETICA E50 Life 4 Operation | 4.2 Adjusting the patient chair Display LED Safety shutdown Patient element The safety shutdown occurs if a movement angle has been exceeded or if a part of the treatment centre collides with an object.

  • Page 55: Moving The Patient Chair

    Instructions for use ESTETICA E50 Life 4 Operation | 4.3 Moving the patient chair 4.3 Moving the patient chair Patient chair Standard Patient chair COMPACTchair 4.4 Moving the dentist element CAUTION Damage from overloading the dentist element. Damage from overloading the dentist element. Exceeding the maximum weight of more than 2 kg by adding handpieces, accessories, etc., can cause damage.

  • Page 56: Moving The Dentist Element Tm

    Instructions for use ESTETICA E50 Life 4 Operation | 4.4 Moving the dentist element 4.4.1 Moving the dentist element TM CAUTION Excessive load on the support system The patient or treatment personnel may be injured. The support system may be damaged.

  • Page 57: Moving The Patient Element (Optional)

    Instructions for use ESTETICA E50 Life 4 Operation | 4.5 Moving the patient element (optional) 4.5 Moving the patient element (optional) 4.5.1 Moving the patient element (optional) The swivelling range is approx. 250°. NOTE If the patient unit is swivelled over the patient chair, the safety shutdown is activated and the patient chair can no longer be moved.

  • Page 58: Moving The Assistant Element Right, Left (Optional)

    Instructions for use ESTETICA E50 Life 4 Operation | 4.6 Moving the assistant element The assistant unit can be vertically positioned in four levels. 4 To set a higher level, pull the assistant element upward gently until it aud- ibly locks in place.
  • Page 59 Instructions for use ESTETICA E50 Life 4 Operation | 4.6 Moving the assistant element Swinging range of assistant element r, l (optional) 4 Move the backrest up before swinging the assistant element. 4 Move the assistant element to the desired position in its swinging range.

  • Page 60: Using Functions Through The Menu

    Instructions for use ESTETICA E50 Life 4 Operation | 4.7 Using functions through the menu 4 Undo the clamping screw and push the assistant element into the desired position. 4 Re-tighten the clamping screw. 4.7 Using functions through the menu 4.7.1 Using the user menu...
  • Page 61 Instructions for use ESTETICA E50 Life 4 Operation | 4.7 Using functions through the menu Feature Description tion Time / date display mode Set display mode for time of day and date: ▪ Time of day only ▪ Time of day without seconds ▪...
  • Page 62 Instructions for use ESTETICA E50 Life 4 Operation | 4.7 Using functions through the menu Navigation in the user menu Function keys Description Switch option to "Return" Switch option to "Forwards" Move cursor (if possible) Reduce set value Increase set value Exit the user menu and save the settings 4 Press the "Next"...
  • Page 63 Instructions for use ESTETICA E50 Life 4 Operation | 4.7 Using functions through the menu Option 4: Setting the LUX afterglow period 4 Press the "increase value" or "reduce value" key to set the LUX afterglow period between 0 to 10 seconds. The default value is 3 seconds.
  • Page 64 Instructions for use ESTETICA E50 Life 4 Operation | 4.7 Using functions through the menu Option "Display mode for time of day / Date", "Time of day only <no sec>" setting Option "Display mode for time of day / Date", "Time of day and date" setting Option "Display mode for time of day / Date", "Date only"...

  • Page 65: Standby Menu

    Instructions for use ESTETICA E50 Life 4 Operation | 4.7 Using functions through the menu COMPOsave is a dimmer mode. In COMPOsave mode the curing of the compos- ite is greatly reduced by filtering the blue parts of the light spectrum.
  • Page 66 Instructions for use ESTETICA E50 Life 4 Operation | 4.7 Using functions through the menu Likewise, when you exit from the handpiece menu and the multimedia menu, the unit automatically switches to the standby menu. Selecting a function The display shows display fields with symbols for the operating functions. Below each display field, there is a key for selecting the displayed operating function.

  • Page 67: Using The Memodent Menu

    Instructions for use ESTETICA E50 Life 4 Operation | 4.7 Using functions through the menu ð The display switches to the settings menu. 4 Press the button for the respective dentist (dentist 1 to dentist 6). The number of dentists can be set in the user menu.

  • Page 68: Changing The Turbine Handpiece Settings In The Memodent Menu

    Instructions for use ESTETICA E50 Life 4 Operation | 4.7 Using functions through the menu To save the instrument-specific values, there are 3 memory levels (1, 2, 3) each for six dentists (dentist 1 to dentist 6). In level E, the centring of the foot pedal is deactivated, and no preferential speed can be programmed.
  • Page 69 Instructions for use ESTETICA E50 Life 4 Operation | 4.7 Using functions through the menu Setting the cold light The cold light can be set to one of 9 levels. 4 Briefly press the "Cold light" button. ð The cold light intensity changes one level.

  • Page 70: Changing The Piezoled Settings In The Memodent Menu

    Instructions for use ESTETICA E50 Life 4 Operation | 4.7 Using functions through the menu 4.7.6 Changing the PiezoLED settings in the MEMOdent menu NOTE Please comply with the enclosed "PiezoLED" Instructions for Use. The following settings can be changed in the MEMOdent menu: ▪...

  • Page 71: Changing The Multifunctional Handpiece Settings In The Memodent Menu

    Instructions for use ESTETICA E50 Life 4 Operation | 4.7 Using functions through the menu Function No cooling Spray water cooling status Dosing the amount of spray water CAUTION Insufficient cooling of the working tip. Heat damage to tooth or handpiece.

  • Page 72: Using The Timer

    Instructions for use ESTETICA E50 Life 4 Operation | 4.7 Using functions through the menu ▪ Air/water heating The cold light intensity is adjusted in the same manner as with the turbine handpiece. Also refer to: 4.7.4 Changing the turbine handpiece settings in the MEMOdent menu, Page 68 4 Briefly press "Preselect level"...

  • Page 73: Using The Conexio Menu (From V2.1)

    Instructions for use ESTETICA E50 Life 4 Operation | 4.7 Using functions through the menu 4 Press the "Decrease value" key to reduce the time. 4 Press the "Increase value" key to increase the time. ð The set time is shown on the display.
  • Page 74 Instructions for use ESTETICA E50 Life 4 Operation | 4.7 Using functions through the menu 4 The CONEXIO menu opens automatically as soon as a camera is taken out. 4 Replace the active camera or manually close the CONEXIO menu to close CONEXIO.
  • Page 75 Instructions for use ESTETICA E50 Life 4 Operation | 4.7 Using functions through the menu Item Name Pressing but- Function ① Stirrup switch long Deselect selected patients. ② LP key short Move cursor to previous patient ③ SP key short Move cursor to next patient ④-⑦...
  • Page 76 Instructions for use ESTETICA E50 Life 4 Operation | 4.7 Using functions through the menu Functions on the foot control (fee-based additional option) NOTE To be able to navigate in the "CONEXIO" menu with the foot control, the "CONEXIO" menu must be open or an imaging device activated. When you switch to the "CONEXIO"...
  • Page 77 Instructions for use ESTETICA E50 Life 4 Operation | 4.7 Using functions through the menu Functions on the dentist element Sym- Number/description Pressing button ① The selected patient is displayed display only ② Display previous image only (in short active frame) ③...
  • Page 78 Instructions for use ESTETICA E50 Life 4 Operation | 4.7 Using functions through the menu Sym- Number/description Pressing button ④ Switch quadrants briefly ④ Switch between adult/paediatric long notation ⑤ Switch tooth short ⑥ Change clinical monitoring short status: healthy: healthy...

  • Page 79: Using Function Through The Dentist Or Assistant Element

    Instructions for use ESTETICA E50 Life 4 Operation | 4.8 Using function through the dentist or assistant element Functions on the foot control (for Single – Compare – Split image display is identical) (fee-based additional option) NOTE To be able to navigate in the "CONEXIO" menu with the foot control, the "CONEXIO"...

  • Page 80: Using The Light Functions

    Instructions for use ESTETICA E50 Life 4 Operation | 4.8 Using function through the dentist or assistant element Function The tumbler is being filled. The filling time can be changed. The bowl is being rinsed. The rinsing time can be changed.
  • Page 81 4 When you use the KaVo KEY Laser III or KEY Laser 3+, switch the operating light to laser mode. 4 Or switch off the operating light, do not use KaVo KEY Laser III or KEY Laser 3+ simultaneously with the KaVoLUX 540 LED operating light.
  • Page 82 ▪ Dimmed light: approx. 4,000 Kelvin; equivalent to the light of a halogen op- erating light ▪ Laser mode: Light mode with no detrimental effect on the KaVo KEY Laser III, the KEY Laser 3+ or the KaVo DIAGNOdent When operated in dimmed mode, the LED lamp functions like a dimmed halo- gen lamp.
  • Page 83 Instructions for use ESTETICA E50 Life 4 Operation | 4.8 Using function through the dentist or assistant element Switch on COMPOsave mode NOTE Tapping the "Dim operating light" key switches on the COMPOsave mode. The light can be dimmed in COMPOsave mode.
  • Page 84 Instructions for use ESTETICA E50 Life 4 Operation | 4.8 Using function through the dentist or assistant element 4 Press and hold down the switch of the foot control and press the "Dim oper- ating light" button until you hear the buzzer.
  • Page 85 4 Operation | 4.8 Using function through the dentist or assistant element In laser mode, a different light mode is generated that has no negative influ- ence on the KaVo KEY Laser III, KEY Laser 3+ or KaVo DIAGNOdent. Sensor KaVoLUX 540 LED 4 Press the "Operating light“...

  • Page 86: Using The Timer

    Instructions for use ESTETICA E50 Life 4 Operation | 4.8 Using function through the dentist or assistant element Operation of the 3D joint 4 Turn the switching ring to the left until it snaps into place. ð Operating light can be rotated 45° to the left or 45° to the right.

  • Page 87: Operating The Foot Control

    Instructions for use ESTETICA E50 Life 4 Operation | 4.9 Operating the foot control 4 In order to stop the time on a timer, press the selected "Timer" button again. 4.9 Operating the foot control 4.9.1 General functions The foot control foot switches have dual assignments. The function of the foot control depends on if an instrument is mounted or removed.

  • Page 88: Setting The Cooling Status

    Instructions for use ESTETICA E50 Life 4 Operation | 4.9 Operating the foot control NOTE The wireless foot control may experience some delays after triggering of a function if the wireless connection is faulty. 4 Remove the handpiece (such as turbine, motor, PiezoLED etc) from the holder.

  • Page 89: Using Physiological Saline (Optional Accessory)

    Instructions for use ESTETICA E50 Life 4 Operation | 4.9 Operating the foot control 4.9.10 Using physiological saline (optional accessory) Prerequisites ü Treatment centre is turned on. The handpiece is connected to the pump via the pressure line. 4 Remove an instrument.

  • Page 90: Establishing A Connection Between The Wireless Foot Control And The Treatment Centre (Bluetooth)

    Instructions for use ESTETICA E50 Life 4 Operation | 4.9 Operating the foot control The charging status of the rechargeable battery of the wireless foot control is displayed by the LED display and signaled by a beep. Residual Foot control...
  • Page 91 Instructions for use ESTETICA E50 Life 4 Operation | 4.9 Operating the foot control Via the receiver of the treatment centre NOTE If connection via the settings menu of the dentist element does not work, es- tablish the connection using the receiver in the treatment centre.

  • Page 92: Establishing A Connection Between The Wireless Foot Control And The Treatment Centre

    Instructions for use ESTETICA E50 Life 4 Operation | 4.9 Operating the foot control ð Synchronisation starts. The remaining countdown time in seconds is dis- played. ð A combination of keys on the wireless foot control must be used during the 30 second countdown.
  • Page 93 Instructions for use ESTETICA E50 Life 4 Operation | 4.9 Operating the foot control NOTE Only one wireless foot control per treatment centre can be registered to a RF receiver. If another wireless foot control was registered earlier, the last foot control to be registered will be deleted with every new start of the synchron- isation process.

  • Page 94: Charging The Wireless Foot Control

    Instructions for use ESTETICA E50 Life 4 Operation | 4.9 Operating the foot control Display Meaning – ok – The radio partner was successfully trained. The connection is established. – Invalid device – An attempt was made to train a device that was not permitted for the ter- minal.

  • Page 95: Using Handpieces

    Instructions for use ESTETICA E50 Life 4 Operation | 4.10 Using handpieces NOTE Charge the wireless foot control with the charger supplied by KaVo only. The wireless foot control charger may only be used indoors and must be pro- tected from moisture.
  • Page 96 Instructions for use ESTETICA E50 Life 4 Operation | 4.10 Using handpieces 4 Move the slide valve completely upward. ð The slide valve is open: maximum suction. 4 Move the slide valve down all the way. ð The slide valve is closed: no suction.

  • Page 97: Using The Triple Function Handpiece

    Instructions for use ESTETICA E50 Life 4 Operation | 4.10 Using handpieces NOTE The following applies to all equipment featuring the selective holder kit: A ser- vice technician can set the vacuum stop function to either stop all suction hoses or only stop the spray mist suction when the saliva ejector is simultan- eously activated.

  • Page 98: Using The Multifunctional Handpiece

    Instructions for use ESTETICA E50 Life 4 Operation | 4.10 Using handpieces 4 Press the water button ④ and continuously increase or decrease the exiting water jet by applying more or less pressure on the water button ④. 4 Simultaneously press the air button ① and water button ④ and continuously increase or decrease the exiting spray by applying more or less pressure on the two buttons.
  • Page 99 Instructions for use ESTETICA E50 Life 4 Operation | 4.10 Using handpieces CAUTION Damage due to missing media on the multifunctional handpiece. Air and water heating systems are destroyed. 4 Check if the air and water are connected! 4 Check the air and water supply!
  • Page 100 Instructions for use ESTETICA E50 Life 4 Operation | 4.10 Using handpieces Remove the cannula 4 Hold the 3-way or multifunctional handpiece at the gripping sleeve and take off the cannula with a slight twisting motion. Using the cold light (multifunctional handpiece only) Prerequisites ü...

  • Page 101: Use Multifunctional Handpiece Minilight 3F/G3F

    The lamp must be inserted with the poles in proper orientation for the lamp to work properly. 4 Push the holder ③ forward and pull the defective KaVo MULTI LED lamp ② out of its mount.

  • Page 102: Using The Piezoled

    Instructions for use ESTETICA E50 Life 4 Operation | 4.11 Using the KL 703 LED / KL 702 in ENDO mode (optional accessory) 4.10.6 Using the PiezoLED CAUTION Handpiece inserts can be damaged from long-term use, or when dropped or bent.
  • Page 103 Incorrect transmission ratio. Damage from incorrect speed / incorrect torque. 4 Use KaVo 1:1 reducing shank 20LH or 20LP or MASTERmatic LUX M20 only with 1:1 INTRA LUX head L68 B (mat. no. 1.008.1834) or 3:1 INTRA head L66 B (mat. no. 1.008.1831).

  • Page 104: Calling Up Endo Mode

    Instructions for use ESTETICA E50 Life 4 Operation | 4.11 Using the KL 703 LED / KL 702 in ENDO mode (optional accessory) 4.11.2 Calling up ENDO mode 4 Take the INTRA LUX Motor KL 703 / KL 702 endomotor off the holder.

  • Page 105: Setting The Parameters

    Instructions for use ESTETICA E50 Life 4 Operation | 4.11 Using the KL 703 LED / KL 702 in ENDO mode (optional accessory) Function Option: 3. Autorev. / Fwd. Time In Autorev. mode / Fwd. you can set a period of time (1 to 10 seconds) after...
  • Page 106 Instructions for use ESTETICA E50 Life 4 Operation | 4.11 Using the KL 703 LED / KL 702 in ENDO mode (optional accessory) Setting the speed The speed can be adjusted in steps of 10 from 100 rpm to 500 rpm, in steps of 50 from 500 rpm to 1000 rpm, and in steps of 100 from 1000 rpm to...

  • Page 107: Exiting Endo Mode

    Instructions for use ESTETICA E50 Life 4 Operation | 4.11 Using the KL 703 LED / KL 702 in ENDO mode (optional accessory) Torque mode Torque Control only 4 Press the foot pedal. ð The motor starts by rotating clockwise (unless selected otherwise).

  • Page 108: General

    Also refer to: 4.11.2 Calling up ENDO mode, Page 104 4.12 Using the pump for physiological saline (optional accessory) Accessory can be used in treatment centres ESTETICA E50 Life TM and S. 4.12.1 General Overview of saline pump ① Holder ② Salt bag ③...

  • Page 109: Connecting The Coolant

    Instructions for use ESTETICA E50 Life 4 Operation | 4.12 Using the pump for physiological saline (optional accessory) Lot de production Sterilisation method Do not reuse – single use only 4.12.2 Connecting the coolant NOTE The coolant must be selected to suit the planned application. The flow rate of the coolant is dependent on the instrument used.

  • Page 110: Activating The Pump For The Respective Holder (Enabling) And Regulating The Pump

    Instructions for use ESTETICA E50 Life 4 Operation | 4.12 Using the pump for physiological saline (optional accessory) 4 Attach the pressure line ① to the motor hose with the enclosed hose clips ②. NOTE The distance from the motor to the first hose clip must be approx. 80 mm.

  • Page 111: Changing The Coolant Container

    Instructions for use ESTETICA E50 Life 4 Operation | 4.12 Using the pump for physiological saline (optional accessory) 4 Gradually adjust the amount of saline solution using the metering head. Turn towards “+”: The amount is increased Turn towards “-”: The amount is decreased 4 Move the cross switch down for 4 seconds until the signal sounds to turn off the saline pump.
  • Page 112 Instructions for use ESTETICA E50 Life 4 Operation | 4.12 Using the pump for physiological saline (optional accessory) Overview of saline pump ① Holder ② Salt bag ③ Hose set sterile ④ Knurled screw ⑤ Pump ⑥ Electrical lead ⑦ Metering head 4 Affix the pump ⑤...

  • Page 113: Replacing The Hose Set Sterile

    Instructions for use ESTETICA E50 Life 4 Operation | 4.12 Using the pump for physiological saline (optional accessory) 4 Turn off the treatment centre. 4 Remove the hose set sterile ②. 4 Unplug electrical line ①. 4 Unscrew the knurled screw under the pump.
  • Page 114 Instructions for use ESTETICA E50 Life 4 Operation | 4.12 Using the pump for physiological saline (optional accessory) 4 Remove the old hose set sterile and dispose of it. 4 Make sure that the flexing system is horizontal (turn manually if necessary).

  • Page 115: General Use

    200,000 rpm. It can be attached only to the KaVo COMFORTbase coupling. The hose of the KaVo COMFORTbase is part of the coupling and cannot be re- moved! Operation and changing the settings via the control element is identical to the INTRA LUX motor KL 703 LED.

  • Page 116: Replacing The O-Rings

    Instructions for use ESTETICA E50 Life 4 Operation | 4.14 Using the USB interface 4 Push the accompanying lamp changer on the high-pressure lamp and pull out the lamp axially. 4 Insert the new lamp into the lamp changer, and introduce it into the hole in the face of the supply hose.
  • Page 117 (TM-table / T-table / Cart) or in the dentist element (S-table). Only the cameras approved/enclosed in the delivery by KaVo may be connected to these interfaces. The USB port in the back is connected directly to the back-of-the-head PC (in the presence of the corresponding wiring).

  • Page 118: Reprocessing Methods Din En Iso 17664

    5 Reprocessing methods DIN EN ISO 17664 NOTE The reprocessing methods are specified in the Care instructions. Please note also the corresponding hygiene video on the KaVo website. Please use the QR code or the following link: https://www.kavo.com/hygiene-easy-way 118 / 152...

  • Page 119: Accessories And Assembly Kits

    Instructions for use ESTETICA E50 Life 6 Accessories and assembly kits | 6.1 Equipment 6 Accessories and assembly kits 6.1 Equipment Description Description Water block DVGW with integrated wa- With a DVGW permit and electronic ter germ reduction unit for water monitoring of the filling level of the dis- infection container.
  • Page 120 Instructions for use ESTETICA E50 Life 6 Accessories and assembly kits | 6.4 Dentist element Name Description Triple function handpiece Multifunctional handpiece featuring air, water, no heating, and no cold light. Multifunctional handpiece Multifunctional handpiece featuring air, water, heating, and cold light.
  • Page 121 Instructions for use ESTETICA E50 Life 6 Accessories and assembly kits | 6.4 Dentist element Description Description ▪ DIAGNOcam 2170 U ▪ DIAGNOcam Vision Full HD U ▪ KaVo ProXam iCam ▪ ERGOcam One 121 / 152...

  • Page 122: Safety Check - Test Instructions

    NOTE KaVo offers a medical device book for keeping an inventory and recording es- sential master data on the medical device. The medical device book is only available in German (mat. no. 0.789.0480).

  • Page 123: Notes For Medical Electrical Systems

    Instructions for use ESTETICA E50 Life 7 Safety check – Test instructions | 7.1 Introduction NOTE The following tests and measurements must be documented, for example in the medical device book. We recommend using the templates at the end of the document.

  • Page 124: Testing Intervals

    Instructions for use ESTETICA E50 Life 7 Safety check – Test instructions | 7.1 Introduction Measurements ▪ Measurement of the protective earth resistance in accordance with IEC 62353 ▪ Measurement of the equipment leakage current - Alternative measuring method in accordance with IEC 62353 ▪...

  • Page 125: Preparatory Measures To Be Undertaken On The Device

    Instructions for use ESTETICA E50 Life 7 Safety check – Test instructions | 7.2 Instructions for the safety check 7.2 Instructions for the safety check 7.2.1 Preparatory measures to be undertaken on the device WARNING Electrical power. Death or bodily injury from electric shock.

  • Page 126: Visual Inspection (Inspection By Examination)

    Instructions for use ESTETICA E50 Life 7 Safety check – Test instructions | 7.2 Instructions for the safety check Without/with DEKAmat/CENTRAmat 7.2.2 Visual inspection (inspection by examination) ▪ Check the following items in advance: Has the configuration of the ME device or the ME system been changed since the last inspection? ▪...
  • Page 127 Instructions for use ESTETICA E50 Life 7 Safety check – Test instructions | 7.2 Instructions for the safety check Visual inspection and appraisal of the medical device and accessories The following list is for exemplary purposes and makes no claim of being com- plete.

  • Page 128: Measurements

    Instructions for use ESTETICA E50 Life 7 Safety check – Test instructions | 7.2 Instructions for the safety check Attachment locations: type plate and note, "Comply with the instructions for use" Control of the availability of the necessary documents 4 Check if the required instructions for use and care instructions are available in the surgery.
  • Page 129 4 Remove plug X2 from the power input board and plug it into the matching connector X2 of the KaVo measuring cable (Mat. no. 0.411.8811). 4 Plug the second plug X2 of the KaVo measuring cable into the mains board (X2).
  • Page 130 Instructions for use ESTETICA E50 Life 7 Safety check – Test instructions | 7.2 Instructions for the safety check 4 Insert the protective earth contact plug of the KaVo measuring cable into the safety tester. Connecting the safety tester without the KaVo measuring cable to the treatment centre.
  • Page 131 Instructions for use ESTETICA E50 Life 7 Safety check – Test instructions | 7.2 Instructions for the safety check 4 Connect the safety tester to additional measuring points AP X. NOTE Additional measuring points AP X need to be taken into consideration in the presence of accessories: e.g.
  • Page 132 Instructions for use ESTETICA E50 Life 7 Safety check – Test instructions | 7.2 Instructions for the safety check NOTE If applicable: all removable supply connection lines, which are kept handy for possible use, should be taken into consideration and the respective PE should be measured.
  • Page 133 Instructions for use ESTETICA E50 Life 7 Safety check – Test instructions | 7.2 Instructions for the safety check Scanning the treatment centre with the test tip Measuring points on the body base ① Main switch holding plate ② Stand cover base plate ③...
  • Page 134 Instructions for use ESTETICA E50 Life 7 Safety check – Test instructions | 7.2 Instructions for the safety check Scanning the patient chair with the test tip ① Top part of the chair ② Base plate of chair base ③ Chair switched mode power supply Measuring points COMPACTchair ①...
  • Page 135 Instructions for use ESTETICA E50 Life 7 Safety check – Test instructions | 7.2 Instructions for the safety check Scanning the control elements with the test probe ① Dentist element S: Fixing screw ② Dentist element TM: Fixing screw on the underside of the dentist...
  • Page 136 Instructions for use ESTETICA E50 Life 7 Safety check – Test instructions | 7.2 Instructions for the safety check Operating light EDI/MAIA No measuring points need to be scanned on the EDI and MAIA operating lights. Scanning the monitor with the test tip 4 Scan the measuring point ①...

  • Page 137: Functional Tests

    Instructions for use ESTETICA E50 Life 7 Safety check – Test instructions | 7.2 Instructions for the safety check Applied part leakage current - Alternative measuring method Limit < 5 mA (maximum value!) Protection class 1 WARNING Danger to persons due to insufficient diligence during the safety checks and testing.
  • Page 138 Instructions for use ESTETICA E50 Life 7 Safety check – Test instructions | 7.2 Instructions for the safety check ▪ There must be no irregularities, noise or abrasion, etc., present. The following list is for exemplary purposes and makes no claim of being com- plete.
  • Page 139 Instructions for use ESTETICA E50 Life 7 Safety check – Test instructions | 7.2 Instructions for the safety check Safety shutdown actu- LED on assistant ele- LED on dentist ele- ated ment ment ③ Backrest ④ Stirrup on foot control ⑤...

  • Page 140: Assessment And Documentation

    Instructions for use ESTETICA E50 Life 7 Safety check – Test instructions | 7.2 Instructions for the safety check 7.2.5 Assessment and documentation NOTE All tests conducted must be documented comprehensively. The docu- ments must contain at least the following particulars:...
  • Page 141 Instructions for use ESTETICA E50 Life 7 Safety check – Test instructions | 7.3 Test protocol for the safety check 7.3 Test protocol for the safety check Test Protocol - Safety Check (Test of safety and function according to §7 section 3 Medical Device Operation Ordinance)

  • Page 142: Annex - Additional Measuring Points

    Instructions for use ESTETICA E50 Life 8 Annex – Additional measuring points | 8.1 Additional scan points SL X for the protective earth measurement 8 Annex – Additional measuring points NOTE Regarding accessories, which are not listed here, comply with the specifica- tions of the relevant instructions for use.
  • Page 143 Instructions for use ESTETICA E50 Life 8 Annex – Additional measuring points | 8.2 Additional measuring points AP X for the EUL/EPA measurement Ceiling adapter for operating light assembly kit ① Base plate for the ceiling adapter ② Surroundings of the protective conductor connector ③...
  • Page 144 Instructions for use ESTETICA E50 Life 8 Annex – Additional measuring points | 8.3 Additional connection points ACP X (additional earth connections) NOTE The switch on the handpiece must be activated during the EPA measurement. NOTE Additional measuring points AP X need to be taken into consideration in the presence of accessories: e.g.

  • Page 145: Troubleshooting

    Instructions for use ESTETICA E50 Life 9 Troubleshooting 9 Troubleshooting NOTE In case of malfunction, consult the separate instructions for the use and care of the respective instruments (e.g., turbine handpiece, motor, camera, Sate- lec Mini LED, etc.). Malfunction Cause Remedy 4 Turn on the main switch.
  • Page 146 Instructions for use ESTETICA E50 Life 9 Troubleshooting Malfunction Cause Remedy 4 Pre-select spray heating. No heating function on the Spray heating not multifunctional handpiece. preselected. No cold light on the multifunc- Cold light not preselec- 4 The heating function is preselected.
  • Page 147 Instructions for use ESTETICA E50 Life 9 Troubleshooting Malfunction Cause Remedy 4 Turn on the computer. Intraoral camera without PC is switched off. function. 4 Make sure that the cable length does not USB cable too long. exceed 10 m (2 x 5 m passive with re- peater).
  • Page 148 Instructions for use ESTETICA E50 Life 9 Troubleshooting Malfunction Cause Remedy 4 Carry out an intensive germ reduction. Display shows: ID 69 Intensive germ reduction must be done. Also refer to: Care instructions Display shows: ID 70 Dekaseptol empty. 4 Replenish Dekaseptol.

  • Page 149: 10Information Concerning The Electromagnetic Compatibility According To En Iec

    Instructions for use ESTETICA E50 Life 10 Information concerning the electromagnetic compatibility according to EN IEC 60601-1-2 | 10.1 Operating envir- onment and EMC warning notes 10 Information concerning the electromagnetic compatibility according to EN IEC 60601-1-2 10.1 Operating environment and EMC warning notes This product is neither life-sustaining nor coupled to the patient.
  • Page 150 Instructions for use ESTETICA E50 Life 10 Information concerning the electromagnetic compatibility according to EN IEC 60601-1-2 | 10.2 Results of the electromagnetic tests Requirement Class / test level [30 MHz – 1000 MHz] DIN EN 61000-3-2 VDE 0838-2 / 03.2010...
  • Page 151 Instructions for use ESTETICA E50 Life 10 Information concerning the electromagnetic compatibility according to EN IEC 60601-1-2 | 10.2 Results of the electromagnetic tests Requirement Class / test level 6 V in amateur radio bands DIN EN 61000-4-8 VDE 0847-4-8 / 11.2010...

Table of Contents
