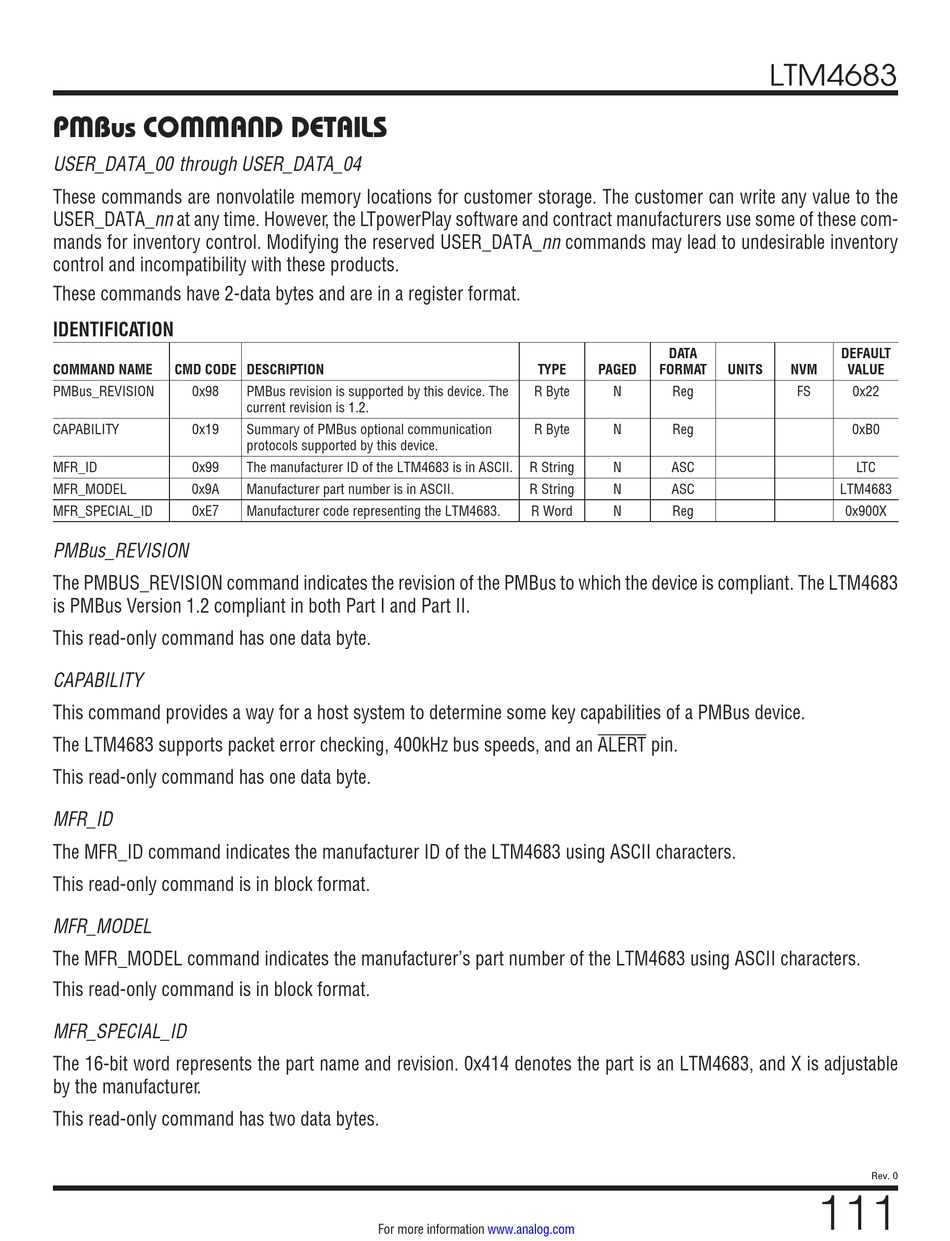

PMBus COMMAND DETAILS
USER_DATA_00 through USER_DATA_04
These commands are nonvolatile memory locations for customer storage. The customer can write any value to the
USER_DATA_nn at any time. However, the LTpowerPlay software and contract manufacturers use some of these com-
mands for inventory control. Modifying the reserved USER_DATA_nn commands may lead to undesirable inventory
control and incompatibility with these products.
These commands have 2-data bytes and are in a register format.

IDENTIFICATION

COMMAND NAME CMD CODE DESCRIPTION
PMBus_REVISION 0x98
CAPABILITY 0x19
MFR_ID 0x99
MFR_MODEL 0x9A
MFR_SPECIAL_ID 0xE7
PMBus_REVISION
The PMBUS_REVISION command indicates the revision of the PMBus to which the device is compliant. The LTM4683
is PMBus Version 1.2 compliant in both Part I and Part II.
This read-only command has one data byte.
CAPABILITY
This command provides a way for a host system to determine some key capabilities of a PMBus device.
The LTM4683 supports packet error checking, 400kHz bus speeds, and an ALERT pin.
This read-only command has one data byte.
MFR_ID
The MFR_ID command indicates the manufacturer ID of the LTM4683 using ASCII characters.
This read-only command is in block format.
MFR_MODEL
The MFR_MODEL command indicates the manufacturer's part number of the LTM4683 using ASCII characters.
This read-only command is in block format.
MFR_SPECIAL_ID
The 16-bit word represents the part name and revision. 0x414 denotes the part is an LTM4683, and X is adjustable
by the manufacturer.
This read-only command has two data bytes.
PMBus revision is supported by this device. The
current revision is 1.2.
Summary of PMBus optional communication
protocols supported by this device.
The manufacturer ID of the LTM4683 is in ASCII.
Manufacturer part number is in ASCII.
Manufacturer code representing the LTM4683.
For more information
TYPE PAGED FORMAT
R Byte N
R Byte N
R String N
R String N
R Word N
www.analog.com
LTM4683
DATA DEFAULT
UNITS NVM VALUE
Reg FS
Reg
ASC
ASC LTM4683
Reg 0x900X
111
0x22
0xB0
LTC
Rev. 0
