OPERATION
STATUS_VOUT*
7 VOUT_OV Fault
6 VOUT_OV Warning
5 VOUT_UV Warning
4 VOUT_UV Fault
3 VOUT_MAX Warning
2 TON_MAX Fault
1 TOFF_MAX Warning
0 (reads 0)
(PAGED)
STATUS_IOUT
7 IOUT_OC Fault
6 (reads 0)
5 IOUT_OC Warning
4 (reads 0)
3 (reads 0)
2 (reads 0)
1 (reads 0)
0 (reads 0)
(PAGED)
STATUS_TEMPERATURE
7 OT Fault
6 OT Warning
5 (reads 0)
4 UT Fault
3 (reads 0)
2 (reads 0)
1 (reads 0)
0 (reads 0)
(PAGED)
STATUS_CML
7 Invalid/Unsupported Command
6 Invalid/Unsupported Data
5 Packet Error Check Failed
4 Memory Fault Detected
3 Processor Fault Detected
2 (reads 0)
1 Other Communication Fault
0 Other Memory or Logic Fault
STATUS_WORD
15 V
OUT
14 I
OUT
13 INPUT
12 MFR_SPECIFIC
11 POWER_GOOD#
10 (reads 0)
9 (reads 0)
8 (reads 0)
STATUS_BYTE
7 BUSY
6 OFF
5 VOUT_OV
4 IOUT_OC
3 (reads 0)
2 TEMPERATURE
1 CML
0 NONE OF THE ABOVE
MFR_COMMON
7 Chip Not Driving ALERT Low
6 Chip Not Busy
5 Internal Calculations Not Pending
4 Output Not In Transition
3 EEPROM Initialized
2 (reads 0)
1 SHARE_CLK_LOW
0 WP Pin High
MFR_INFO
15 Reserved
14 Reserved
13 Reserved
12 Reserved
11 Reserved
10 Reserved
9 Reserved
8 Reserved
7
Reserved
6 Reserved
5 Reserved
4 EEPROM ECC Status
3 Reserved
2 Reserved
1
Reserved
0 Reserved
DESCRIPTION MASKABLE
General Fault or Warning Event Yes
General Non-Maskable Event No
Dynamic No
Status Derived from Other Bits No

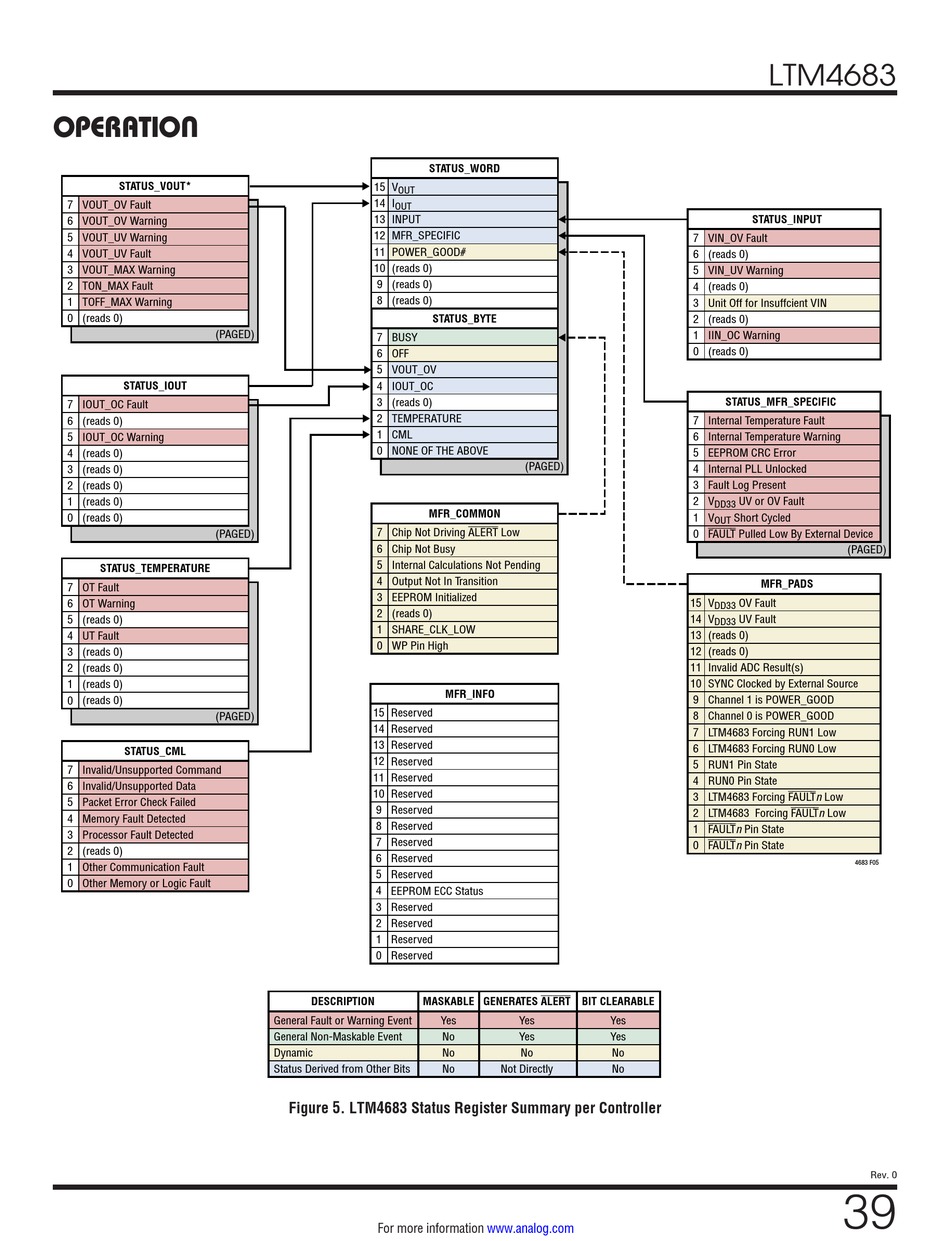

Figure 5. LTM4683 Status Register Summary per Controller
