DEMO MANUAL LT1964 LOW NOISE, NEGATIVE
DESCRIPTION
Demonstration circuit SCP-LT1964-EVALZ is a –20V,
200mA Low Dropout (LDO) regulator designed to allow
low noise operation in noise sensitive circuits. It is easily
configured for a wide output range and can provide ex-
tremely quiet operation with its high PSRR.
Like all boards in the Signal Chain Power series, this board
is designed to be easily plugged into other SCP boards to
form a complete signal chain power system, enabling fast
evaluation of low power signal chains. To evaluate this
board, some universal SCP hardware is required, namely:
SCP-INPUT-EVALZ
SCP-OUTPUT-EVALZ
SCP-1X5BKOUT-EVALZ
SCP-THRUBRD-EVALZ
Table 1. Performance Summary
SYMBOL PARAMETER
V Max Input Voltage
IN(MAX)
V Max Output Voltage
OUT(MAX)
I Max Output Current
OUT(MAX)
BOARD IMAGE
MICROPOWER LDO REGULATOR
LT1964 Negative Linear Regulator
SCP-FILTER-EVALZ
SCP-1X2BKOUT-EVALZ
SCP-5X1-EVALZ
NOTES

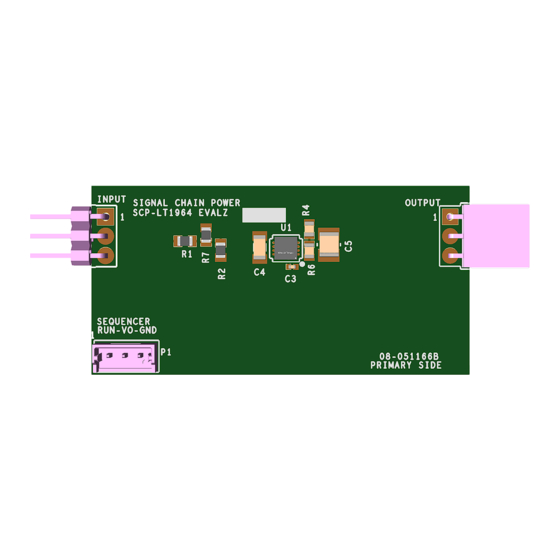

Figure 1. SCP-LT1964-EVALZ Board
DEMO MANUAL
SCP-LT1964-EVALZ
Signal Chain Power
To properly evaluate SCP series demo boards, you will
need the SCP Configurator companion software. SCP
Configurator can help you choose the right board and to-
pology for your design.
Note that this Demo Manual does not cover details im-
portant to the operation and configuration regarding the
LT1964. Please refer to the
plete description of the part.
Design files for this circuit board are available.
All registered trademarks and trademarks are property of their respective owners.
LT1964 datasheet for a com-
MIN TYP MAX
–20
–19.57
200
UNITS
V
V
mA
Rev. 0
