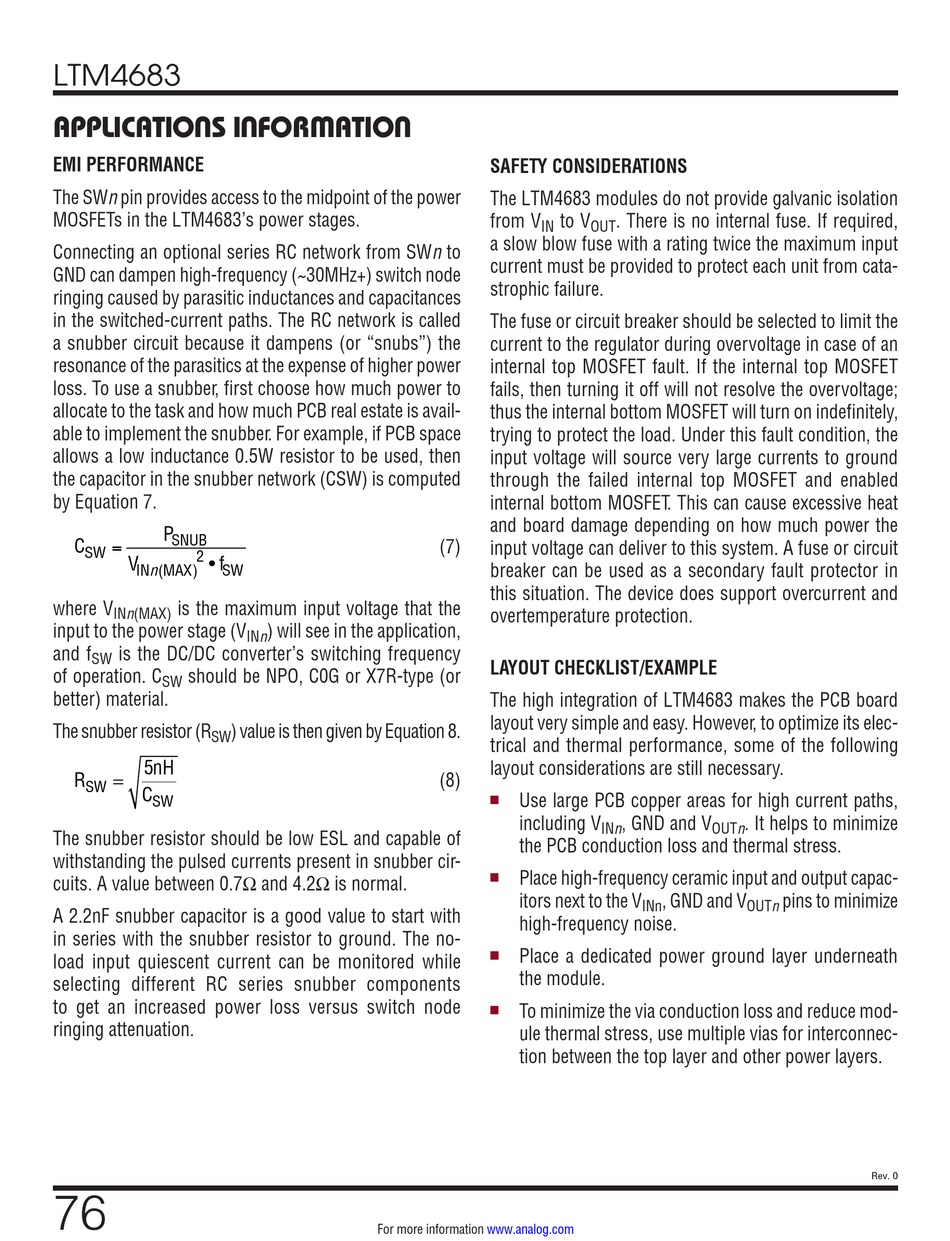

LTM4683
APPLICATIONS INFORMATION
EMI PERFORMANCE
The SWn pin provides access to the midpoint of the power
MOSFETs in the LTM4683's power stages.
Connecting an optional series RC network from SWn to
GND can dampen high-frequency (~30MHz+) switch node
ringing caused by parasitic inductances and capacitances
in the switched-current paths. The RC network is called
a snubber circuit because it dampens (or "snubs") the
resonance of the parasitics at the expense of higher power
loss. To use a snubber, first choose how much power to
allocate to the task and how much PCB real estate is avail-
able to implement the snubber. For example, if PCB space
allows a low inductance 0.5W resistor to be used, then
the capacitor in the snubber network (CSW) is computed
by Equation 7.
P
SNUB
C
=
SW
2
V
• f
IN n (MAX)
SW
where V
is the maximum input voltage that the
INn(MAX)
input to the power stage (V
and f
is the DC/DC converter's switching frequency
SW
of operation. C
should be NPO, C0G or X7R-type (or
SW
better) material.
The snubber resistor (R
) value is then given by Equation 8.
SW
5nH
=
R
SW
C
SW
The snubber resistor should be low ESL and capable of
withstanding the pulsed currents present in snubber cir-
cuits. A value between 0.7Ω and 4.2Ω is normal.
A 2.2nF snubber capacitor is a good value to start with
in series with the snubber resistor to ground. The no-
load input quiescent current can be monitored while
selecting different RC series snubber components
to get an increased power loss versus switch node
ringing attenuation.
76
) will see in the application,
INn
For more information
SAFETY CONSIDERATIONS
The LTM4683 modules do not provide galvanic isolation
from V
to V
. There is no internal fuse. If required,
IN
OUT
a slow blow fuse with a rating twice the maximum input
current must be provided to protect each unit from cata-
strophic failure.
The fuse or circuit breaker should be selected to limit the
current to the regulator during overvoltage in case of an
internal top MOSFET fault. If the internal top MOSFET
fails, then turning it off will not resolve the overvoltage;
thus the internal bottom MOSFET will turn on indefinitely,
trying to protect the load. Under this fault condition, the
input voltage will source very large currents to ground
through the failed internal top MOSFET and enabled
internal bottom MOSFET. This can cause excessive heat
and board damage depending on how much power the
(7)
input voltage can deliver to this system. A fuse or circuit
breaker can be used as a secondary fault protector in
this situation. The device does support overcurrent and
overtemperature protection.
LAYOUT CHECKLIST/EXAMPLE
The high integration of LTM4683 makes the PCB board
layout very simple and easy. However, to optimize its elec-
trical and thermal performance, some of the following
layout considerations are still necessary.
(8)
Use large PCB copper areas for high current paths,
n
including V
INn
the PCB conduction loss and thermal stress.
Place high-frequency ceramic input and output capac-
n
itors next to the V
high-frequency noise.
Place a dedicated power ground layer underneath
n
the module.
To minimize the via conduction loss and reduce mod-
n
ule thermal stress, use multiple vias for interconnec-
tion between the top layer and other power layers.
www.analog.com
, GND and V
. It helps to minimize
OUTn
, GND and V
pins to minimize
INn
OUTn
Rev. 0
