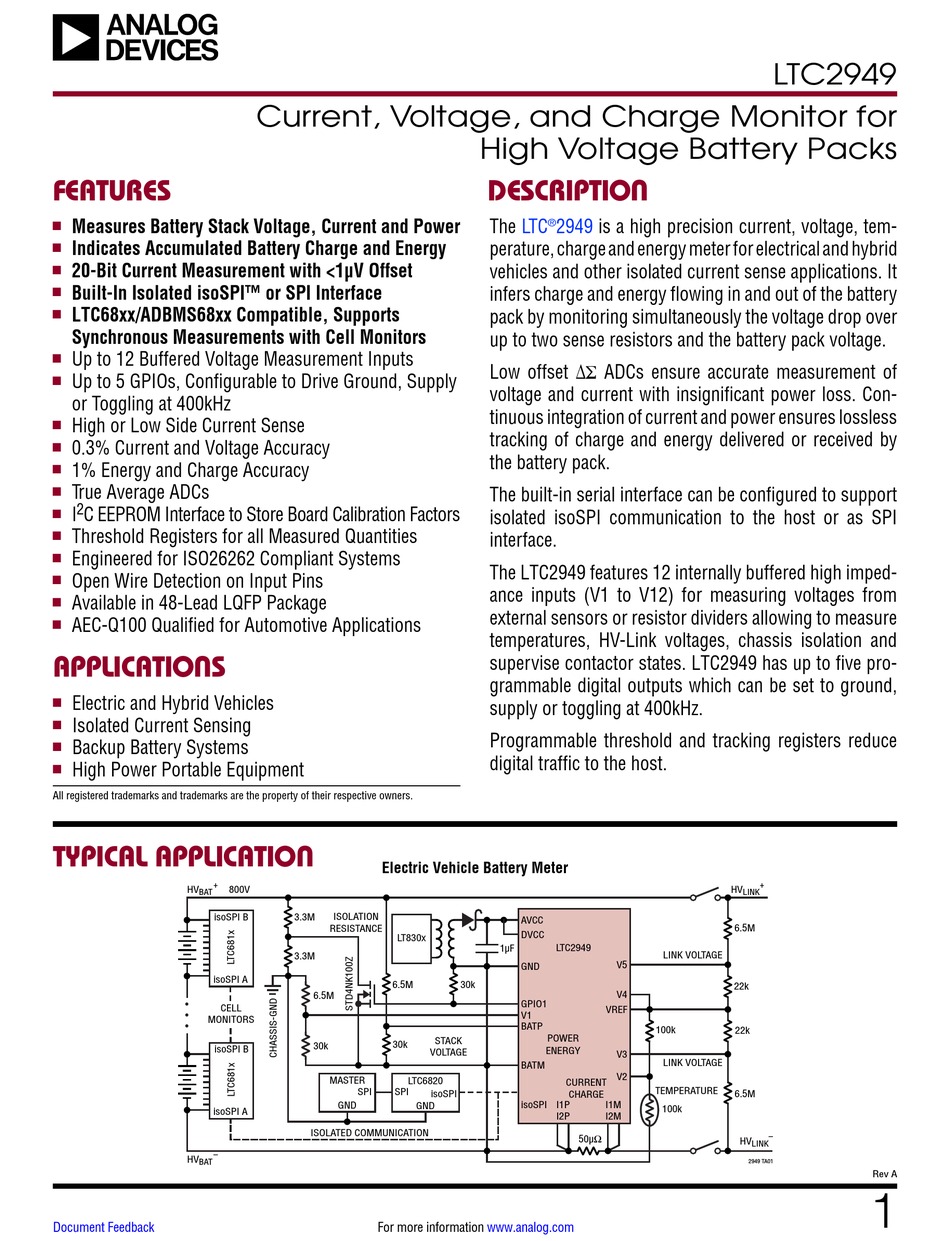

FEATURES
Measures Battery Stack Voltage, Current and Power
n
Indicates Accumulated Battery Charge and Energy
n
20-Bit Current Measurement with <1μV Offset
n
Built-In Isolated isoSPI™ or SPI Interface
n
LTC68xx/ADBMS68xx Compatible, Supports
n
Synchronous Measurements with Cell Monitors
Up to 12 Buffered Voltage Measurement Inputs
n
Up to 5 GPIOs, Configurable to Drive Ground, Supply
n
or Toggling at 400kHz
High or Low Side Current Sense
n
0.3% Current and Voltage Accuracy
n
1% Energy and Charge Accuracy
n
True Average ADCs
n
2
I
C EEPROM Interface to Store Board Calibration Factors
n
Threshold Registers for all Measured Quantities
n
Engineered for ISO26262 Compliant Systems
n
Open Wire Detection on Input Pins
n

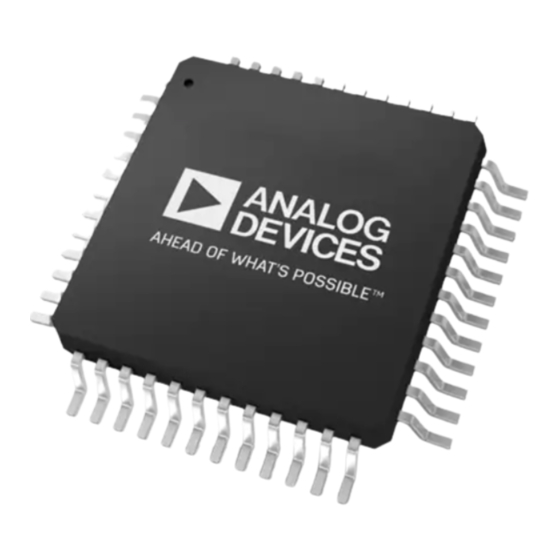

Available in 48-Lead LQFP Package
n
AEC-Q100 Qualified for Automotive Applications
n
APPLICATIONS
Electric and Hybrid Vehicles
n
Isolated Current Sensing
n
Backup Battery Systems
n
High Power Portable Equipment
n
All registered trademarks and trademarks are the property of their respective owners.
TYPICAL APPLICATION
+
HV
800V
BAT
isoSPI B
isoSPI A
CELL
MONITORS
isoSPI B
isoSPI A
–
HV
BAT
Document Feedback
Current, Voltage, and Charge Monitor for
Electric Vehicle Battery Meter
3.3M
ISOLATION
RESISTANCE
LT830x
3.3M
6.5M
6.5M
STACK
30k
30k
VOLTAGE
MASTER
LTC6820
SPI
SPI
isoSPI
GND
GND
ISOLATED COMMUNICATION
For more information
High Voltage Battery Packs
DESCRIPTION
The
LTC
2949
is a high precision current, voltage, tem-
®
perature, charge and energy meter for electrical and hybrid
vehicles and other isolated current sense applications. It
infers charge and energy flowing in and out of the battery
pack by monitoring simultaneously the voltage drop over
up to two sense resistors and the battery pack voltage.
Low offset ΔΣ ADCs ensure accurate measurement of
voltage and current with insignificant power loss. Con-
tinuous integration of current and power ensures lossless
tracking of charge and energy delivered or received by
the battery pack.
The built-in serial interface can be configured to support
isolated isoSPI communication to the host or as SPI
interface.
The LTC2949 features 12 internally buffered high imped-
ance inputs (V1 to V12) for measuring voltages from
external sensors or resistor dividers allowing to measure
temperatures, HV-Link voltages, chassis isolation and
supervise contactor states. LTC2949 has up to five pro-
grammable digital outputs which can be set to ground,
supply or toggling at 400kHz.
Programmable threshold and tracking registers reduce
digital traffic to the host.
AVCC
DVCC
LTC2949
1µF
V5
GND
30k
V4
GPIO1
VREF
V1
BATP
POWER
ENERGY
V3
BATM
V2
CURRENT
CHARGE
isoSPI
I1P
I1M
I2P
I2M
50µ
www.analog.com
LTC2949
+
HV
LINK
6.5M
LINK VOLTAGE
22k
100k
22k
LINK VOLTAGE
TEMPERATURE
6.5M
100k
–
HV
LINK
2949 TA01
Rev A
1
