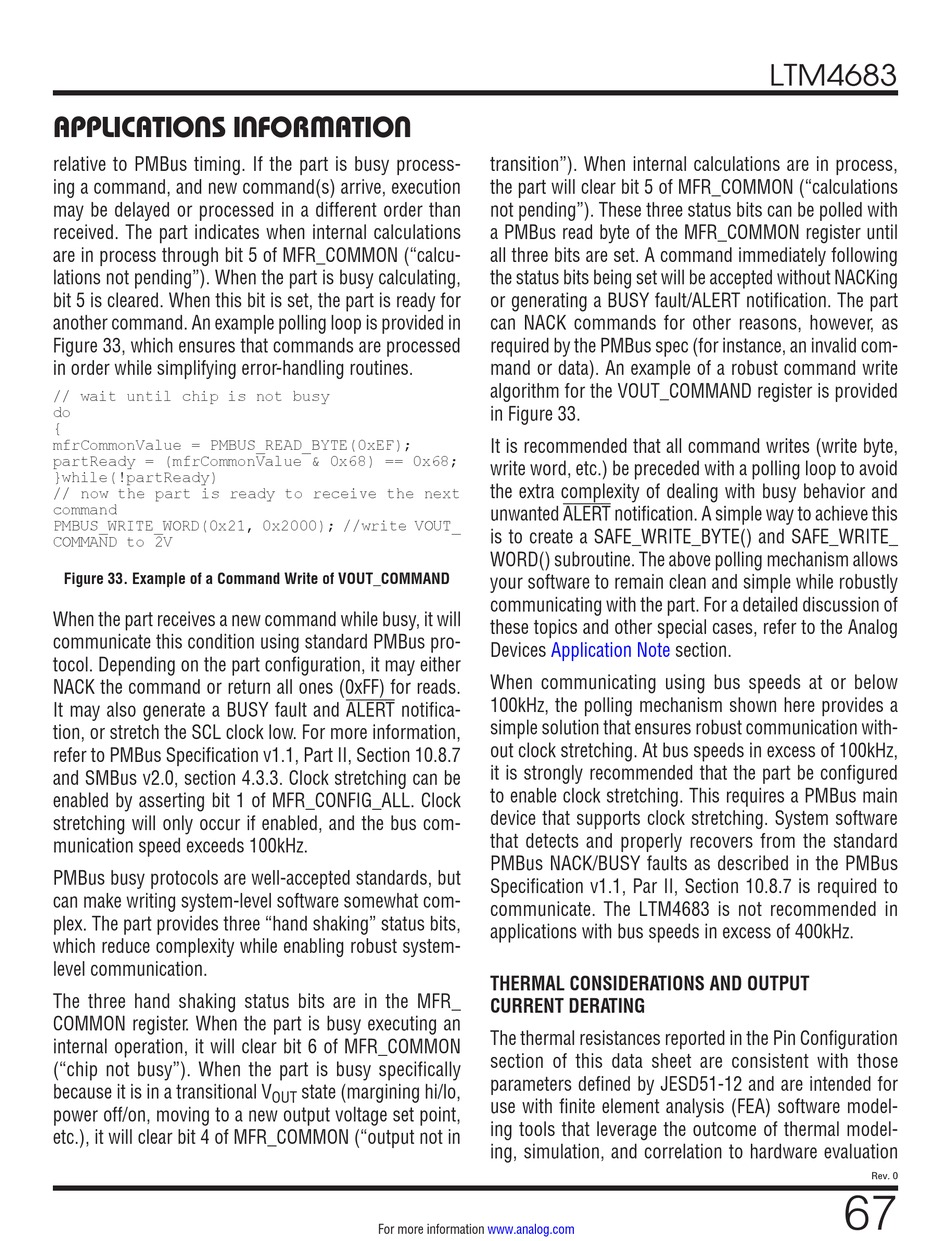

APPLICATIONS INFORMATION
relative to PMBus timing. If the part is busy process-
ing a command, and new command(s) arrive, execution
may be delayed or processed in a different order than
received. The part indicates when internal calculations
are in process through bit 5 of MFR_COMMON ("calcu-
lations not pending"). When the part is busy calculating,
bit 5 is cleared. When this bit is set, the part is ready for
another command. An example polling loop is provided in
Figure 33, which ensures that commands are processed
in order while simplifying error-handling routines.
// wait until chip is not busy
do
{
mfrCommonValue = PMBUS_READ_BYTE(0xEF);
partReady = (mfrCommonValue & 0x68) == 0x68;
}while(!partReady)
// now the part is ready to receive the next
command
PMBUS_WRITE_WORD(0x21, 0x2000); //write VOUT_
COMMAND to 2V
Figure 33. Example of a Command Write of VOUT_COMMAND
When the part receives a new command while busy, it will
communicate this condition using standard PMBus pro-
tocol. Depending on the part configuration, it may either
NACK the command or return all ones (0xFF) for reads.
It may also generate a BUSY fault and ALERT notifica-
tion, or stretch the SCL clock low. For more information,
refer to PMBus Specification v1.1, Part II, Section 10.8.7
and SMBus v2.0, section 4.3.3. Clock stretching can be
enabled by asserting bit 1 of MFR_CONFIG_ALL. Clock
stretching will only occur if enabled, and the bus com-
munication speed exceeds 100kHz.
PMBus busy protocols are well-accepted standards, but
can make writing system-level software somewhat com-
plex. The part provides three "hand shaking" status bits,
which reduce complexity while enabling robust system-
level communication.
The three hand shaking status bits are in the MFR_
COMMON register. When the part is busy executing an
internal operation, it will clear bit 6 of MFR_COMMON
("chip not busy"). When the part is busy specifically
because it is in a transitional V
power off/on, moving to a new output voltage set point,
etc.), it will clear bit 4 of MFR_COMMON ("output not in
state (margining hi/lo,
OUT
For more information
transition"). When internal calculations are in process,
the part will clear bit 5 of MFR_COMMON ("calculations
not pending"). These three status bits can be polled with
a PMBus read byte of the MFR_COMMON register until
all three bits are set. A command immediately following
the status bits being set will be accepted without NACKing
or generating a BUSY fault/ALERT notification. The part
can NACK commands for other reasons, however, as
required by the PMBus spec (for instance, an invalid com-
mand or data). An example of a robust command write
algorithm for the VOUT_COMMAND register is provided
in Figure 33.
It is recommended that all command writes (write byte,
write word, etc.) be preceded with a polling loop to avoid
the extra complexity of dealing with busy behavior and
unwanted ALERT notification. A simple way to achieve this
is to create a SAFE_WRITE_BYTE() and SAFE_WRITE_
WORD() subroutine. The above polling mechanism allows
your software to remain clean and simple while robustly
communicating with the part. For a detailed discussion of
these topics and other special cases, refer to the Analog
Devices Application Note
When communicating using bus speeds at or below
100kHz, the polling mechanism shown here provides a
simple solution that ensures robust communication with-
out clock stretching. At bus speeds in excess of 100kHz,
it is strongly recommended that the part be configured
to enable clock stretching. This requires a PMBus main
device that supports clock stretching. System software
that detects and properly recovers from the standard
PMBus NACK/BUSY faults as described in the PMBus
Specification v1.1, Par II, Section 10.8.7 is required to
communicate. The LTM4683 is not recommended in
applications with bus speeds in excess of 400kHz.
THERMAL CONSIDERATIONS AND OUTPUT
CURRENT DERATING
The thermal resistances reported in the Pin Configuration
section of this data sheet are consistent with those
parameters defined by JESD51-12 and are intended for
use with finite element analysis (FEA) software model-
ing tools that leverage the outcome of thermal model-
ing, simulation, and correlation to hardware evaluation
