DESCRIPTION
DC2984A is a multi-output power management solution
demonstration circuit, featuring the
two 2.5A synchronous step-down DC-DC regulators, two
1.5A synchronous step-down DC-DC regulators and three
300mA LDO regulators. All the regulators can be enabled
PERFORMANCE SUMMARY
SYMBOL
PARAMETER
V
Input Voltage Range
IN
V
BUCK1 Output Voltage
BUCK1
V
BUCK2 Output Voltage
BUCK2
V
BUCK3 Output Voltage
BUCK3
V
BUCK4 Output Voltage
BUCK4
V
LDO1 Output Voltage
LDO1
V
LDO2 Output Voltage
LDO2
V
LDO3 Output Voltage
LDO2

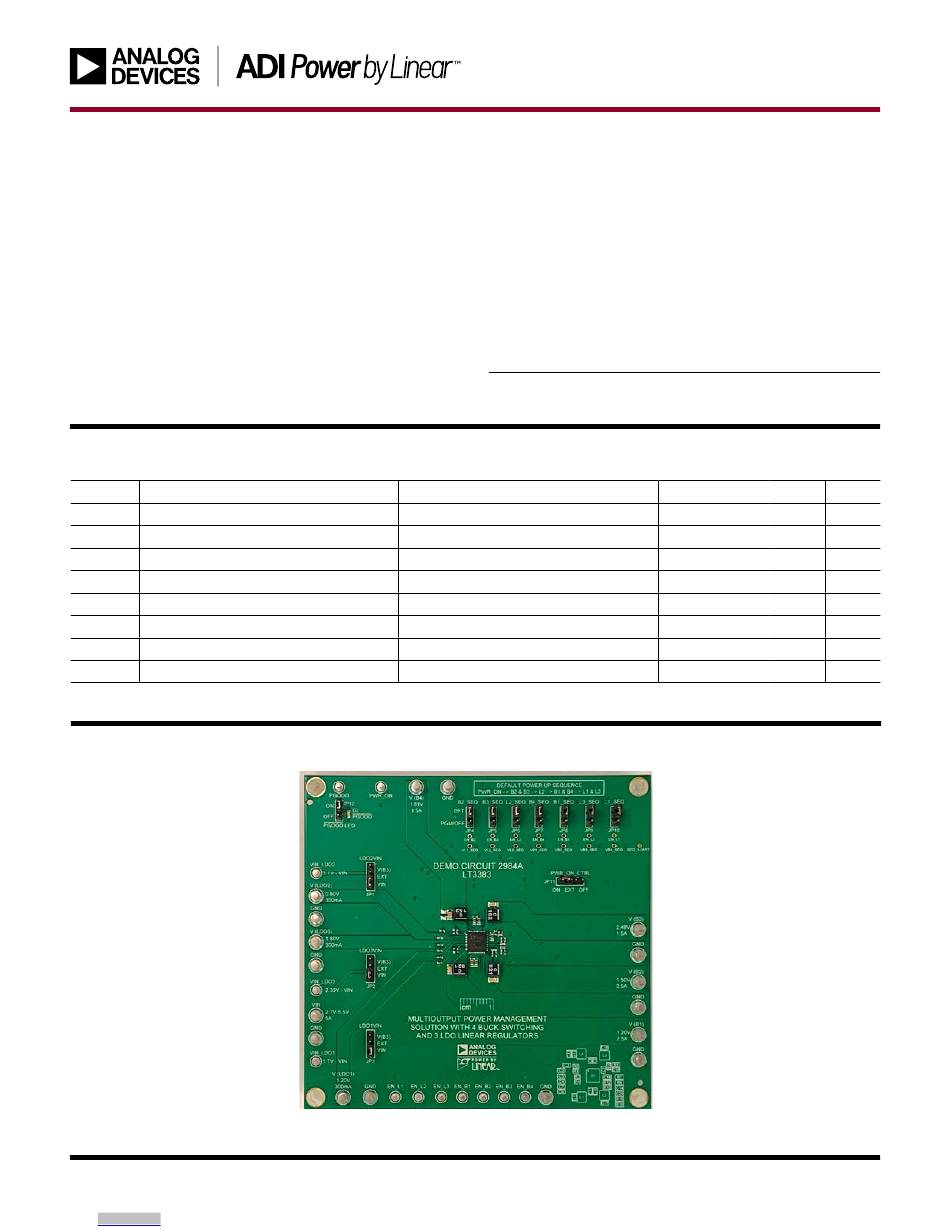

BOARD PHOTO
Arrow.com.
Downloaded from
Multioutput Power Management Solution
LT
3383. It contains
®
Specifications are at T
CONDITIONS
BUCK1 enabled, I(BUCK1) = 0~2.5A
BUCK2 enabled, I(BUCK2) = 0~2.5A
BUCK3 enabled, I(BUCK3) = 0~1.5A
BUCK4 enabled, I(BUCK4) = 0~1.5A
LDO1 enabled, I(LDO1) = 0~300mA
LDO2 enabled, I(LDO2) = 0~300mA
LDO3 enabled, I(LDO3) = 0~300mA
Figure 1. DC2984A Board Photo
DEMO MANUAL DC2984A
via its corresponding enable pins. The startup sequence of
the regulators can be programmed by connecting the out-
puts of the regulators to the enable pins in desired order.
Design files for this circuit board are
All registered trademarks and trademarks are the property of their respective owners.
= 25°C
A
LT3383
available.
MIN
TYP
MAX
UNITS
2.7
5.5
1.20
1.50
1.81
3.31
1.20
0.80
1.80
Rev. 0
1
V
V
V
V
V
V
V
V
