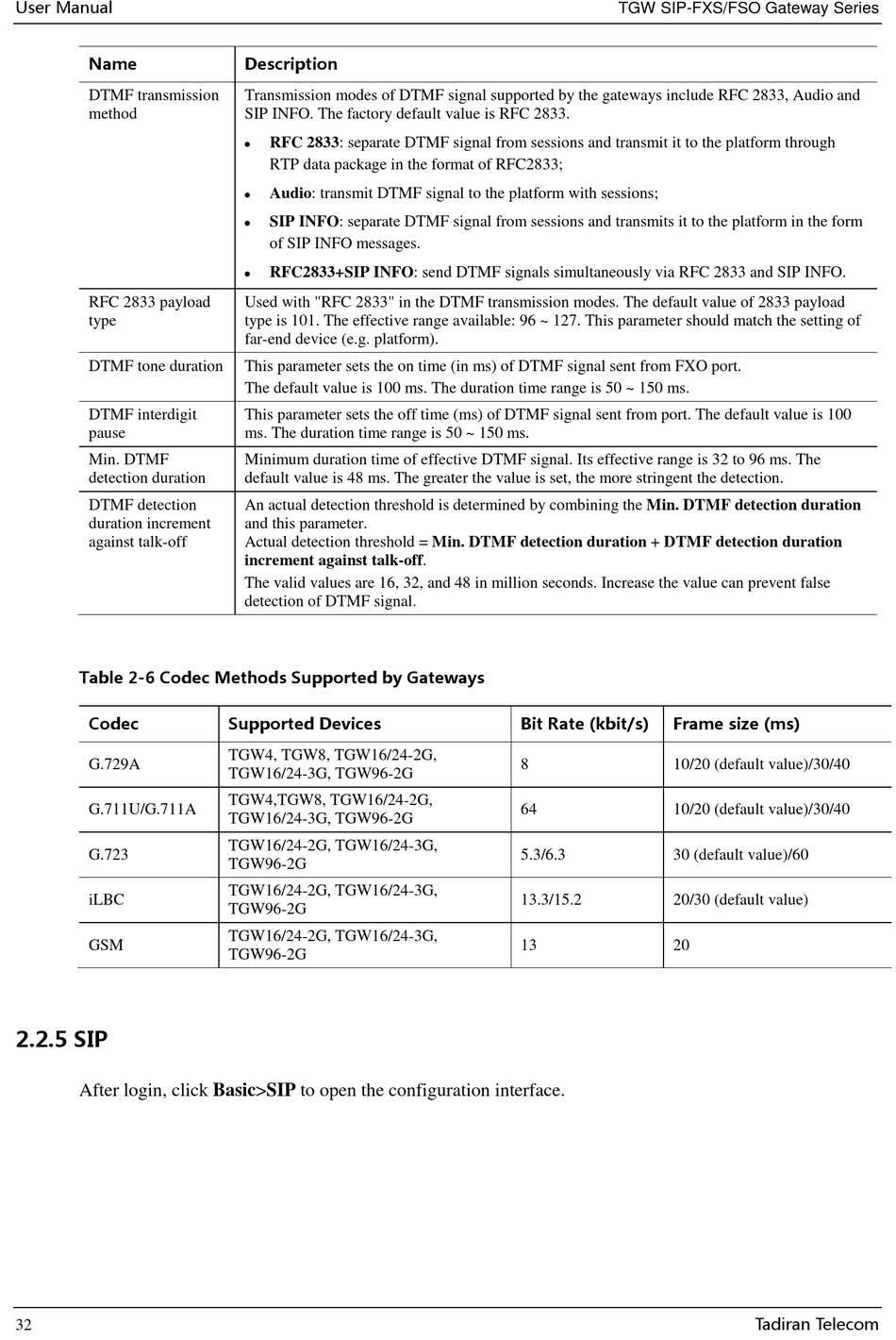

User Manual
Name
DTMF transmission
method
RFC 2833 payload
type
DTMF tone duration
DTMF interdigit
pause
Min. DTMF
detection duration
DTMF detection
duration increment
against talk-off

Table 2-6 Codec Methods Supported by Gateways

Codec
G.729A
G.711U/G.711A
G.723
iLBC
GSM

2.2.5 SIP

After login, click Basic>SIP to open the configuration interface.
32
Description
Transmission modes of DTMF signal supported by the gateways include RFC 2833, Audio and
SIP INFO. The factory default value is RFC 2833.
RFC 2833: separate DTMF signal from sessions and transmit it to the platform through

RTP data package in the format of RFC2833;
Audio: transmit DTMF signal to the platform with sessions;

SIP INFO: separate DTMF signal from sessions and transmits it to the platform in the form

of SIP INFO messages.
RFC2833+SIP INFO: send DTMF signals simultaneously via RFC 2833 and SIP INFO.

Used with "RFC 2833" in the DTMF transmission modes. The default value of 2833 payload
type is 101. The effective range available: 96 ~ 127. This parameter should match the setting of
far-end device (e.g. platform).
This parameter sets the on time (in ms) of DTMF signal sent from FXO port.
The default value is 100 ms. The duration time range is 50 ~ 150 ms.
This parameter sets the off time (ms) of DTMF signal sent from port. The default value is 100
ms. The duration time range is 50 ~ 150 ms.
Minimum duration time of effective DTMF signal. Its effective range is 32 to 96 ms. The
default value is 48 ms. The greater the value is set, the more stringent the detection.
An actual detection threshold is determined by combining the Min. DTMF detection duration
and this parameter.
Actual detection threshold = Min. DTMF detection duration + DTMF detection duration
increment against talk-off.
The valid values are 16, 32, and 48 in million seconds. Increase the value can prevent false
detection of DTMF signal.
Supported Devices
TGW4, TGW8, TGW16/24-2G,
TGW16/24-3G, TGW96-2G
TGW4,TGW8, TGW16/24-2G,
TGW16/24-3G, TGW96-2G
TGW16/24-2G, TGW16/24-3G,
TGW96-2G
TGW16/24-2G, TGW16/24-3G,
TGW96-2G
TGW16/24-2G, TGW16/24-3G,
TGW96-2G
T G W S IP -F X S /F S O G a te w a y S e rie s
Bit Rate (kbit/s) Frame size (ms)
8 10/20 (default value)/30/40
64 10/20 (default value)/30/40
5.3/6.3 30 (default value)/60
13.3/15.2 20/30 (default value)
13 20
