T G W S IP -F X S /F S O G a te w a y S e rie s

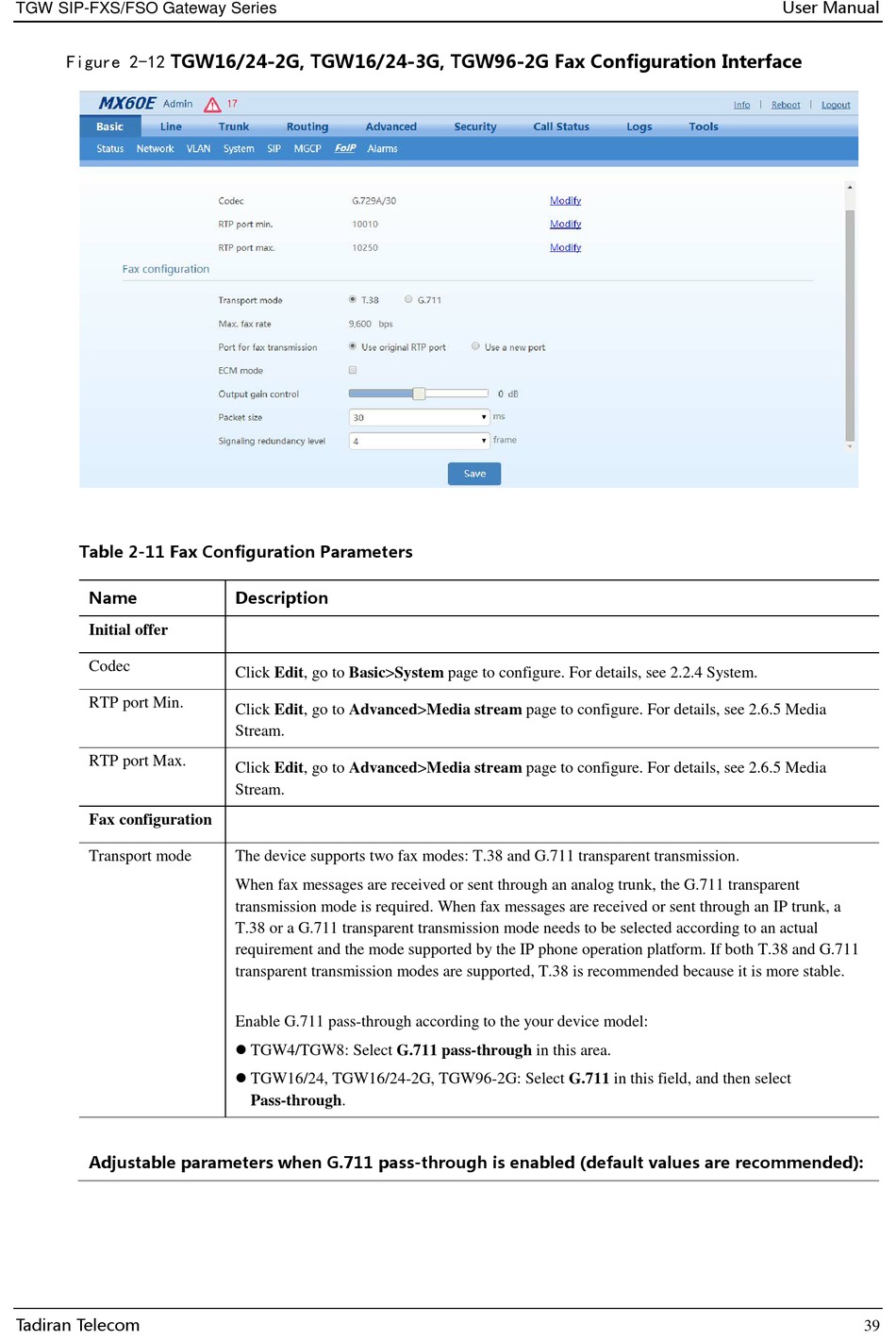

TGW16/24-2G, TGW16/24-3G, TGW96-2G Fax Configuration Interface
Figure 2-12

Table 2-11 Fax Configuration Parameters

Name
Initial offer
Codec
RTP port Min.
RTP port Max.
Fax configuration
Transport mode
Adjustable parameters when G.711 pass-through is enabled (default values are recommended):
Tadiran Telecom
Description
Click Edit, go to Basic>System page to configure. For details, see 2.2.4 System.
Click Edit, go to Advanced>Media stream page to configure. For details, see 2.6.5 Media
Stream.
Click Edit, go to Advanced>Media stream page to configure. For details, see 2.6.5 Media
Stream.
The device supports two fax modes: T.38 and G.711 transparent transmission.
When fax messages are received or sent through an analog trunk, the G.711 transparent
transmission mode is required. When fax messages are received or sent through an IP trunk, a
T.38 or a G.711 transparent transmission mode needs to be selected according to an actual
requirement and the mode supported by the IP phone operation platform. If both T.38 and G.711
transparent transmission modes are supported, T.38 is recommended because it is more stable.
Enable G.711 pass-through according to the your device model:
 TGW4/TGW8: Select G.711 pass-through in this area.
 TGW16/24, TGW16/24-2G, TGW96-2G: Select G.711 in this field, and then select
Pass-through.
User Manual
