T G W S IP -F X S /F S O G a te w a y S e rie s

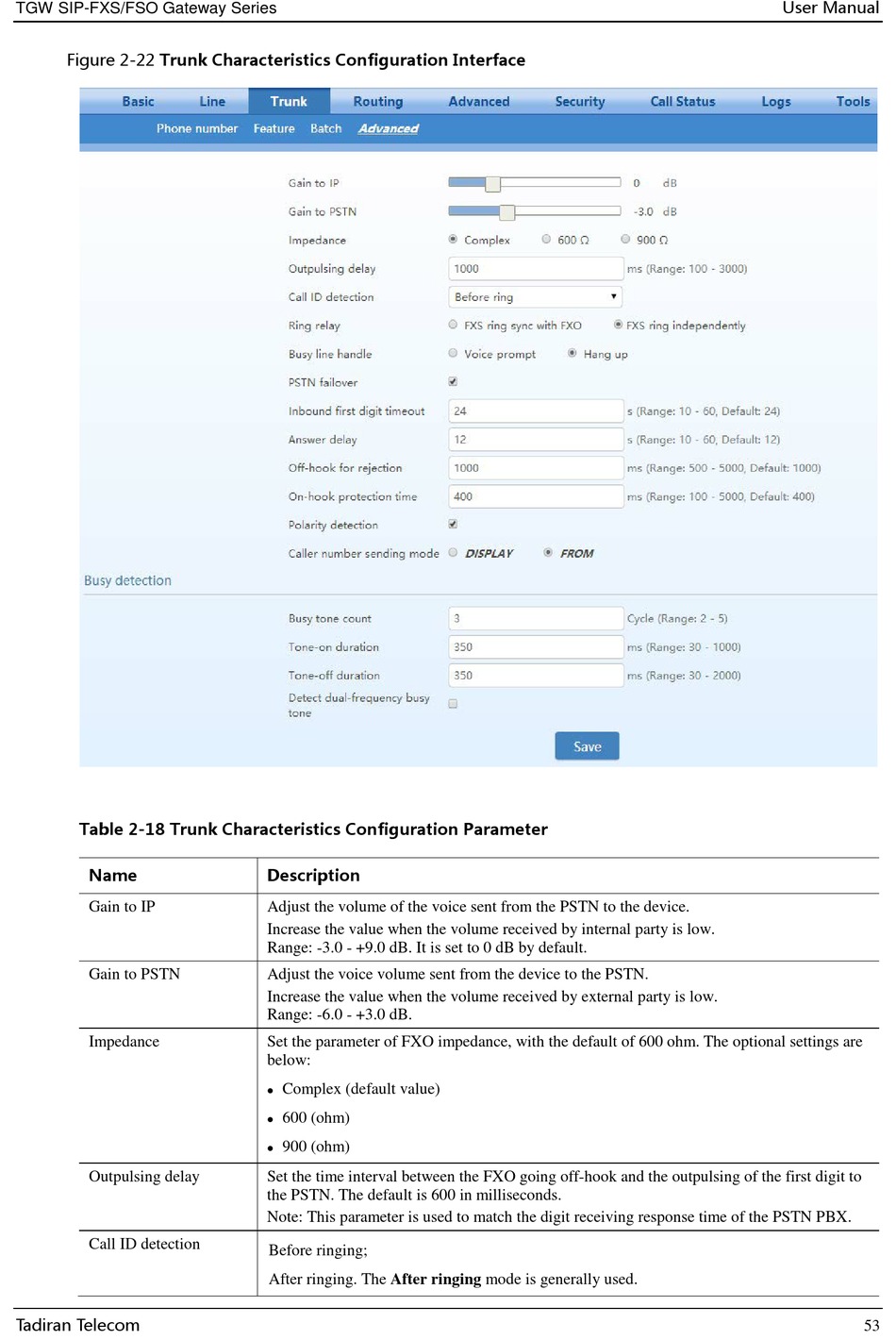

Trunk Characteristics Configuration Interface
Figure 2-22

Table 2-18 Trunk Characteristics Configuration Parameter

Name
Gain to IP
Gain to PSTN
Impedance
Outpulsing delay
Call ID detection
Tadiran Telecom
Description
Adjust the volume of the voice sent from the PSTN to the device.
Increase the value when the volume received by internal party is low.
Range: -3.0 - +9.0 dB. It is set to 0 dB by default.
Adjust the voice volume sent from the device to the PSTN.
Increase the value when the volume received by external party is low.
Range: -6.0 - +3.0 dB.
Set the parameter of FXO impedance, with the default of 600 ohm. The optional settings are
below:
Complex (default value)

600 (ohm)

900 (ohm)

Set the time interval between the FXO going off-hook and the outpulsing of the first digit to
the PSTN. The default is 600 in milliseconds.
Note: This parameter is used to match the digit receiving response time of the PSTN PBX.
Before ringing;
After ringing. The After ringing mode is generally used.
User Manual
53
