2.2.3 VLAN

After login, click Basic>VLAN to open the configuration interface.

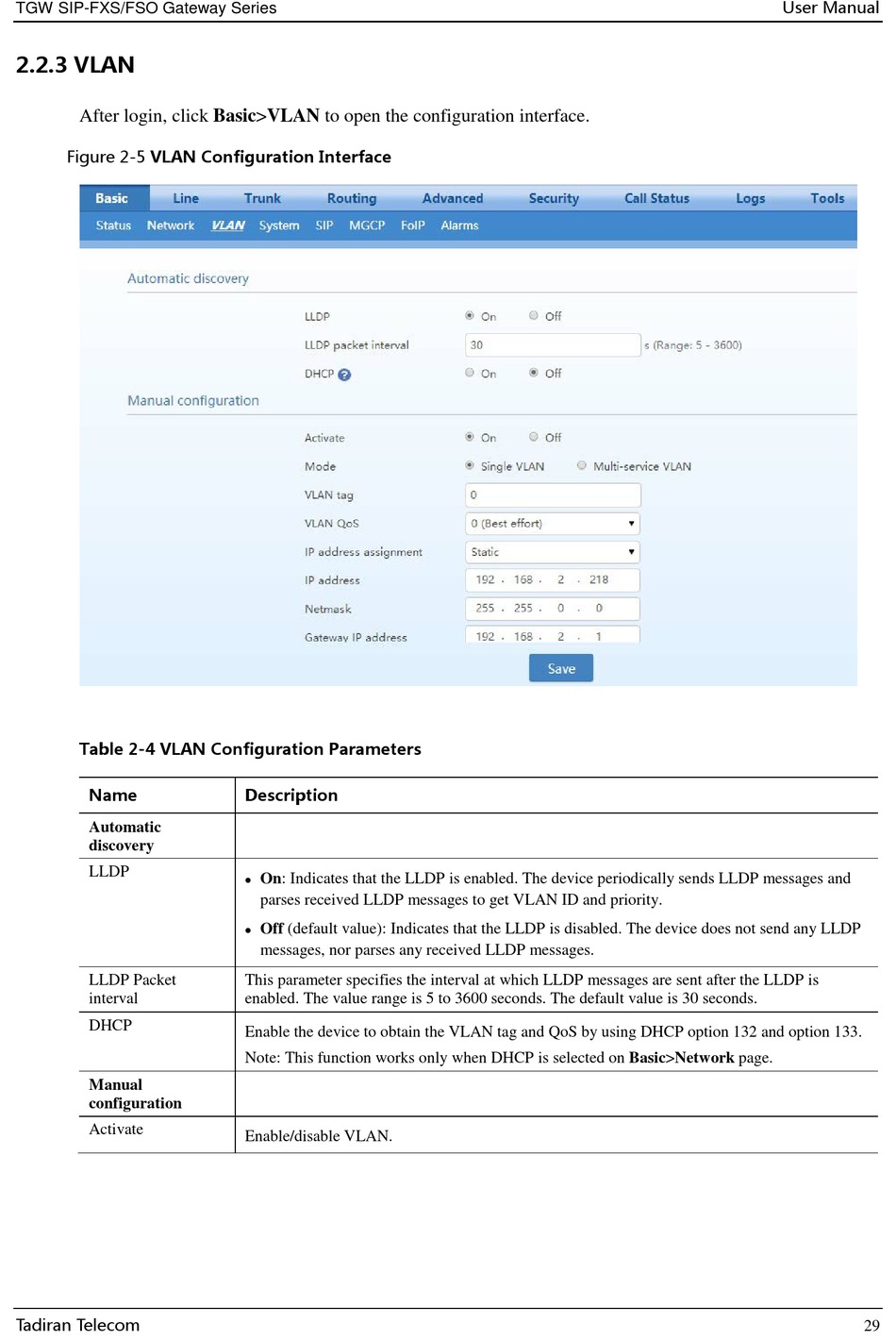

Figure 2-5 VLAN Configuration Interface

Table 2-4 VLAN Configuration Parameters

Name
Automatic
discovery
LLDP
LLDP Packet
interval
DHCP
Manual
configuration
Activate
Tadiran Telecom
Description
On: Indicates that the LLDP is enabled. The device periodically sends LLDP messages and

parses received LLDP messages to get VLAN ID and priority.
Off (default value): Indicates that the LLDP is disabled. The device does not send any LLDP

messages, nor parses any received LLDP messages.
This parameter specifies the interval at which LLDP messages are sent after the LLDP is
enabled. The value range is 5 to 3600 seconds. The default value is 30 seconds.
Enable the device to obtain the VLAN tag and QoS by using DHCP option 132 and option 133.
Note: This function works only when DHCP is selected on Basic>Network page.
Enable/disable VLAN.
