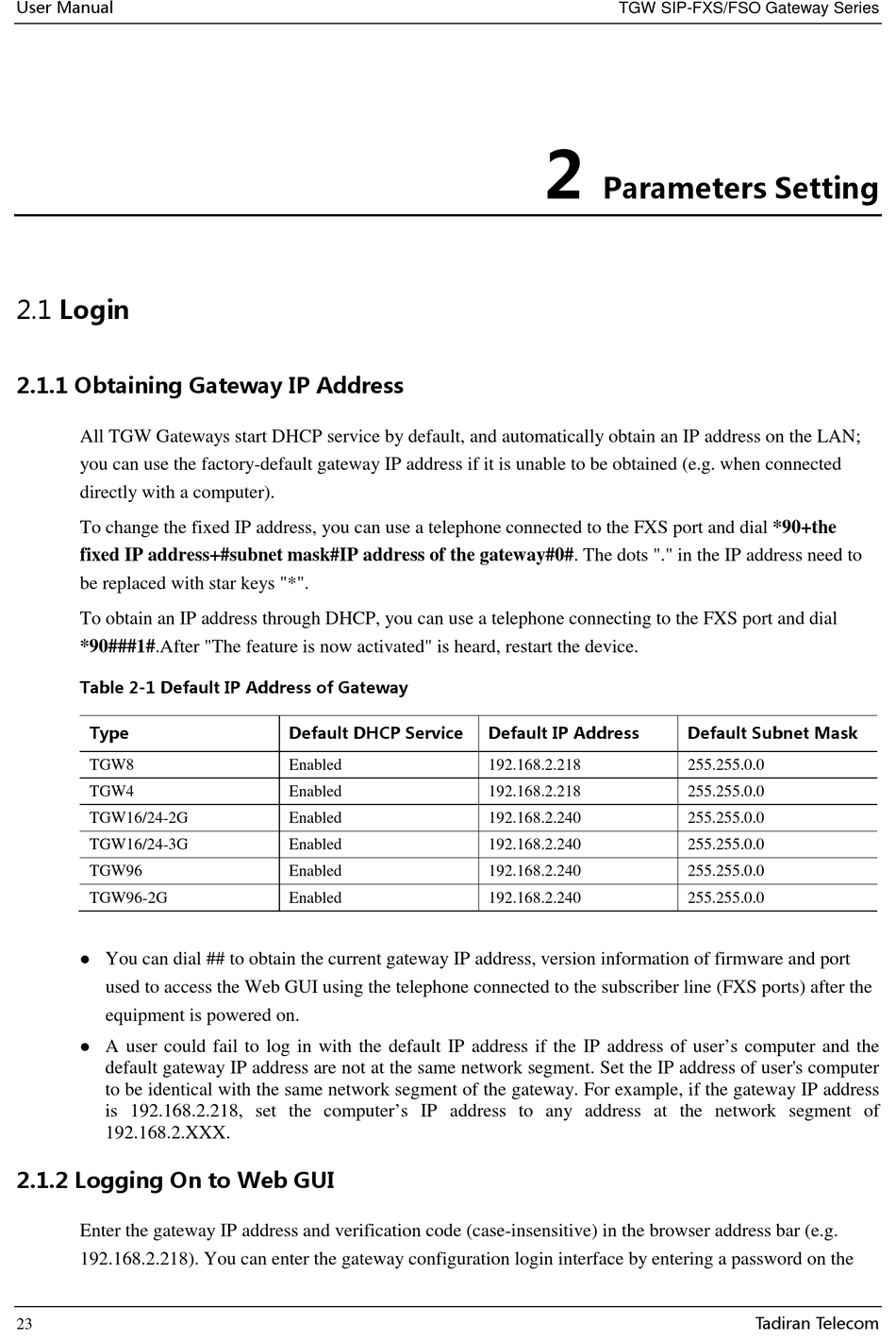

User Manual

2.1

Login

2.1.1 Obtaining Gateway IP Address

All TGW Gateways start DHCP service by default, and automatically obtain an IP address on the LAN;

you can use the factory-default gateway IP address if it is unable to be obtained (e.g. when connected

directly with a computer).

To change the fixed IP address, you can use a telephone connected to the FXS port and dial *90+the

fixed IP address+#subnet mask#IP address of the gateway#0#. The dots "." in the IP address need to

be replaced with star keys "*".

To obtain an IP address through DHCP, you can use a telephone connecting to the FXS port and dial

*90###1#.After "The feature is now activated" is heard, restart the device.

Table 2-1 Default IP Address of Gateway

Type

TGW8

TGW4

TGW16/24-2G

TGW16/24-3G

TGW96

TGW96-2G

You can dial ## to obtain the current gateway IP address, version information of firmware and port



used to access the Web GUI using the telephone connected to the subscriber line (FXS ports) after the

equipment is powered on.

A user could fail to log in with the default IP address if the IP address of user's computer and the



default gateway IP address are not at the same network segment. Set the IP address of user's computer

to be identical with the same network segment of the gateway. For example, if the gateway IP address

is 192.168.2.218, set the computer's IP address to any address at the network segment of

192.168.2.XXX.

2.1.2 Logging On to Web GUI

Enter the gateway IP address and verification code (case-insensitive) in the browser address bar (e.g.

192.168.2.218). You can enter the gateway configuration login interface by entering a password on the

Default DHCP Service

Enabled

T G W S IP -F X S /F S O G a te w a y S e rie s
