TGW4/8 Gateway Series for Aeonix

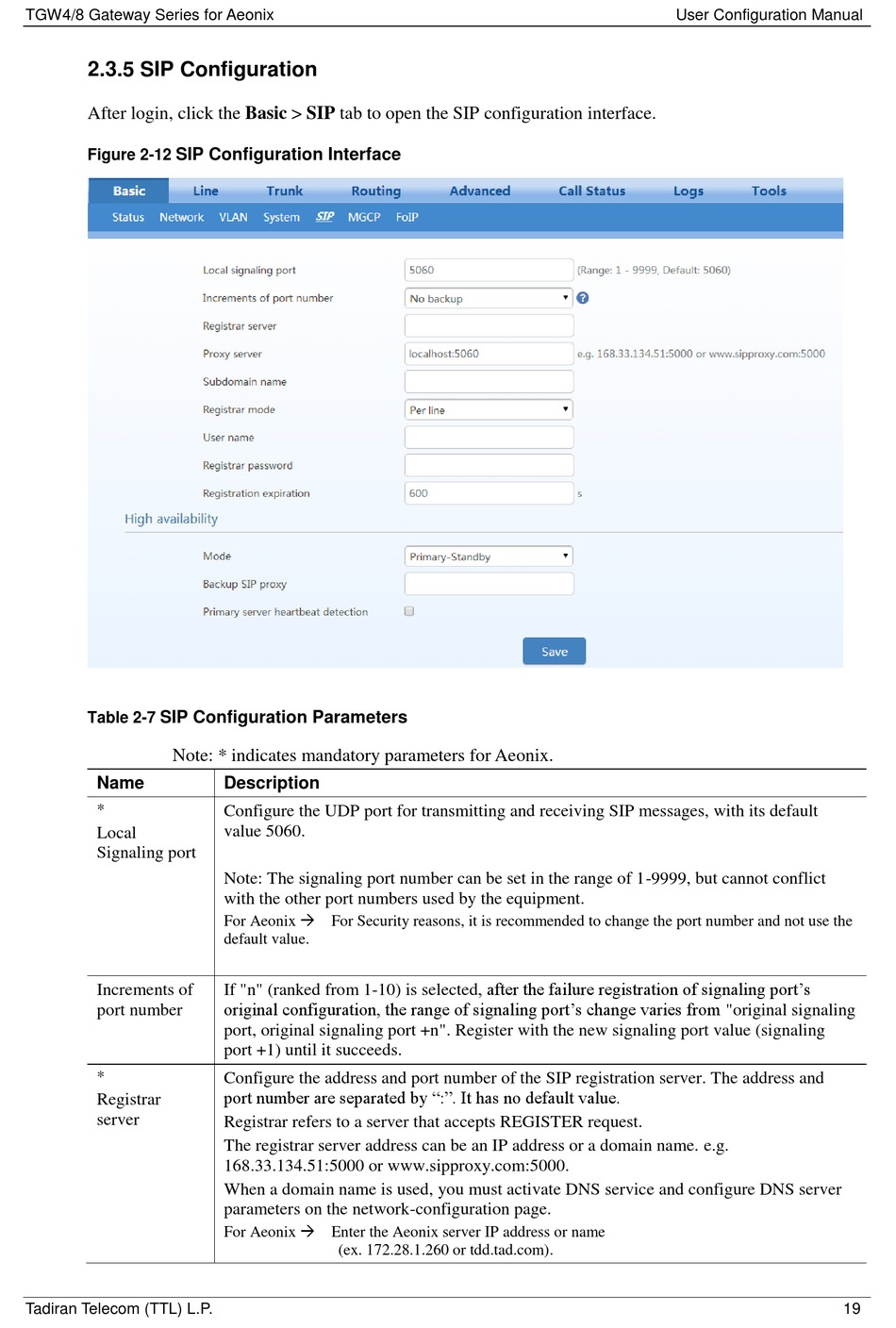

2.3.5 SIP Configuration

After login, click the Basic > SIP tab to open the SIP configuration interface.
SIP Configuration Interface
Figure 2-12
SIP Configuration Parameters
Table 2-7
Note: * indicates mandatory parameters for Aeonix.
Name
*
Local
Signaling port
Increments of
port number
*
Registrar
server
Tadiran Telecom (TTL) L.P.
Description
Configure the UDP port for transmitting and receiving SIP messages, with its default
value 5060.
Note: The signaling port number can be set in the range of 1-9999, but cannot conflict
with the other port numbers used by the equipment.
For Aeonix  For Security reasons, it is recommended to change the port number and not use the
default value.
If "n" (ranked from 1-10) is selected, after the failure registration of signaling port's
original configuration, the range of signaling port's change varies from "original signaling
port, original signaling port +n". Register with the new signaling port value (signaling
port +1) until it succeeds.
Configure the address and port number of the SIP registration server. The address and
port number are separated by ":". It has no default value.
Registrar refers to a server that accepts REGISTER request.
The registrar server address can be an IP address or a domain name. e.g.
168.33.134.51:5000 or www.sipproxy.com:5000.
When a domain name is used, you must activate DNS service and configure DNS server
parameters on the network-configuration page.
For Aeonix  Enter the Aeonix server IP address or name
(ex. 172.28.1.260 or tdd.tad.com).
User Configuration Manual
19
