T G W S IP -F X S /F S O G a te w a y S e rie s

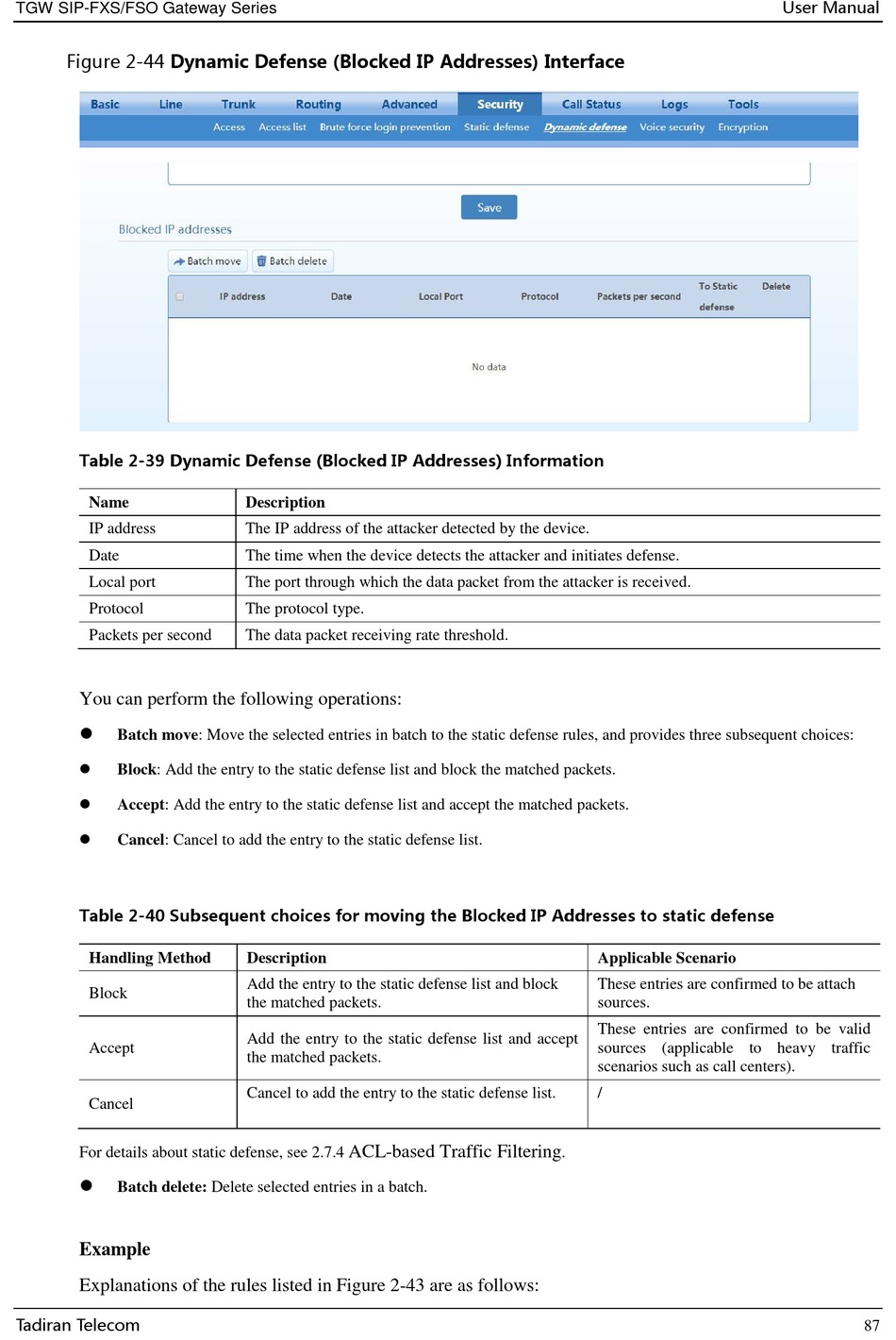

Figure 2-44
Dynamic Defense (Blocked IP Addresses) Interface

Table 2-39 Dynamic Defense (Blocked IP Addresses) Information

Name
IP address
Date
Local port
Protocol
Packets per second
You can perform the following operations:
Batch move: Move the selected entries in batch to the static defense rules, and provides three subsequent choices:
Block: Add the entry to the static defense list and block the matched packets.
Accept: Add the entry to the static defense list and accept the matched packets.
Cancel: Cancel to add the entry to the static defense list.

Table 2-40 Subsequent choices for moving the Blocked IP Addresses to static defense

Handling Method
Block
Accept
Cancel
For details about static defense, see 2.7.4
Batch delete: Delete selected entries in a batch.
Example
Explanations of the rules listed in Figure 2-43 are as follows:
Tadiran Telecom
Description
The IP address of the attacker detected by the device.
The time when the device detects the attacker and initiates defense.
The port through which the data packet from the attacker is received.
The protocol type.
The data packet receiving rate threshold.
Description
Add the entry to the static defense list and block
the matched packets.
Add the entry to the static defense list and accept
the matched packets.
Cancel to add the entry to the static defense list.
ACL-based Traffic Filtering
Applicable Scenario
These entries are confirmed to be attach
sources.
These entries are confirmed to be valid
sources (applicable to heavy traffic
scenarios such as call centers).
/
.
User Manual
87
