T G W S IP -F X S /F S O G a te w a y S e rie s

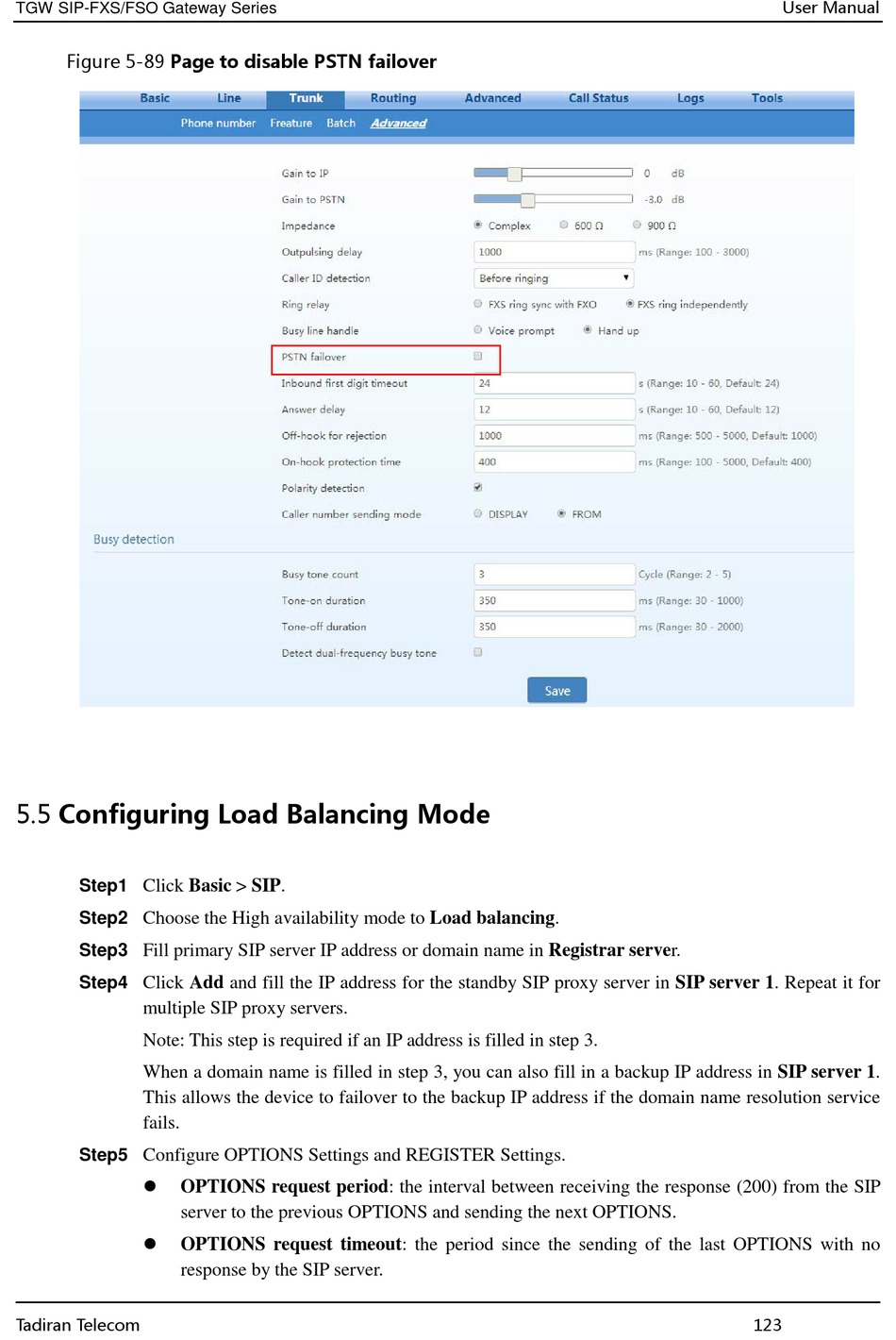

Figure 5-89 Page to disable PSTN failover
Configuring Load Balancing Mode
5.5
Step1 Click Basic > SIP.
Step2 Choose the High availability mode to Load balancing.
Fill primary SIP server IP address or domain name in Registrar server.
Step3
Click Add and fill the IP address for the standby SIP proxy server in SIP server 1. Repeat it for
Step4
multiple SIP proxy servers.
Note: This step is required if an IP address is filled in step 3.
When a domain name is filled in step 3, you can also fill in a backup IP address in SIP server 1.
This allows the device to failover to the backup IP address if the domain name resolution service
fails.
Step5 Configure OPTIONS Settings and REGISTER Settings.

OPTIONS request period: the interval between receiving the response (200) from the SIP
server to the previous OPTIONS and sending the next OPTIONS.

OPTIONS request timeout: the period since the sending of the last OPTIONS with no
response by the SIP server.
