T G W S IP -F X S /F S O G a te w a y S e rie s

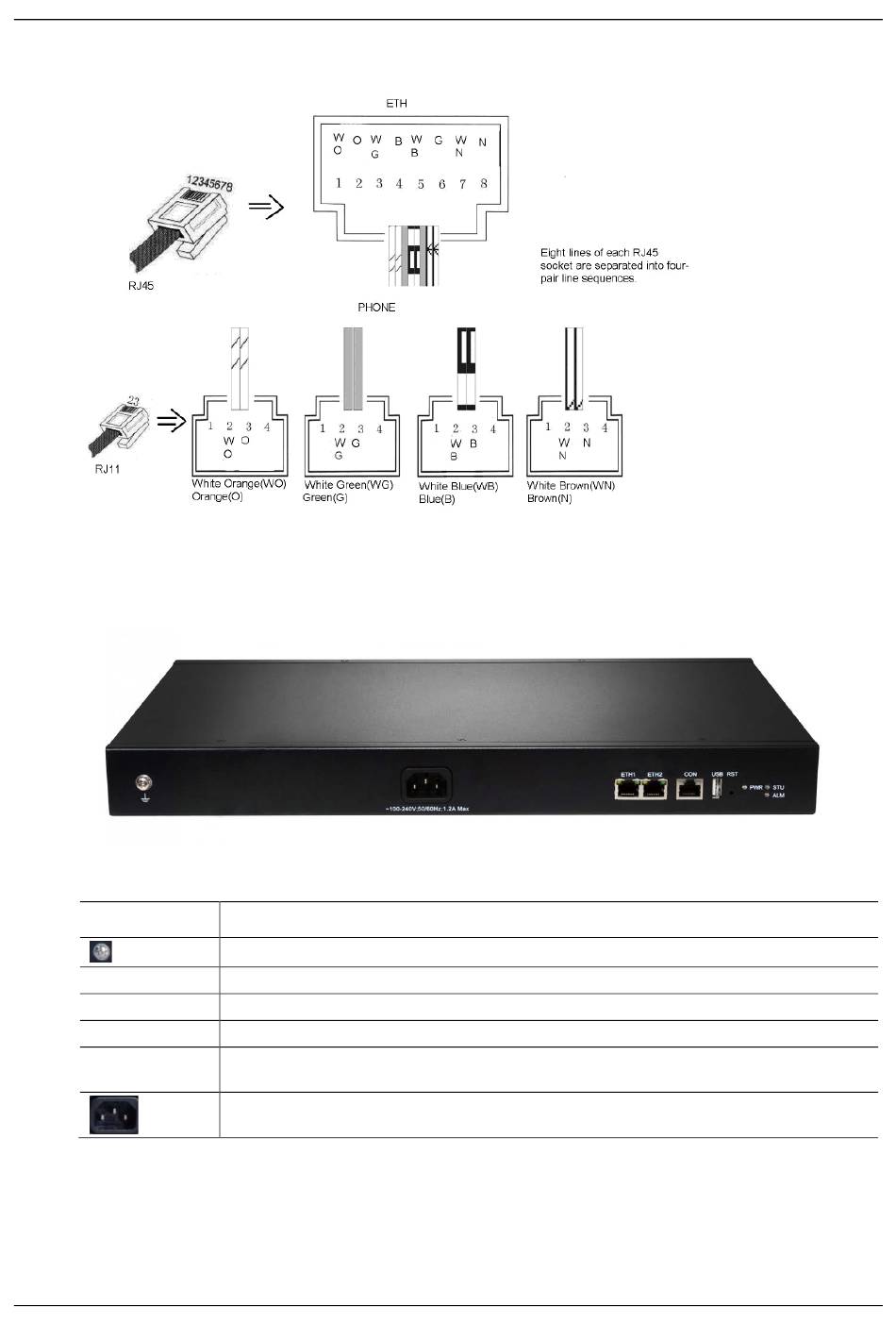

Figure 1-12 Schematic Diagram of TGW16/24-3G Subscriber Line Connection
Figure 1-13 TGW16-3G Back Panel-AC
Description of TGW16/24-3G Back Panel
Table 1-18
Item
PWR/STU/ALM
USB
CON
ETH1/ETH2
Tadiran Telecom
Description
Ground pole
Indicator, see Table 1-19 for description
USB interface
Configuration interface (CON), used for local management and debugging
Two 10/100 Mbps Ethernet ports (RJ45). They share one IP address, which by default is
192.168.2.240, and you can change it on Basic > Network page.
AC power socket, 100-240 VAC voltage input.
User Manual
13
