Figure 1-20 Tgw96-2G Back Panel-Ac; Figure 1-21 Tgw96-2G Back Panel-Dc; Table 1-34 Tgw96-2G Back Panel - Tadiran Telecom aeonix TGW4 User Manual

T G W S IP -F X S /F S O G a te w a y S e rie s
corresponding line is equipped as analog trunk line type, off LED indicates that the corresponding line
is not equipped or not ready for use.

System operation status indication: this is the mode for displaying information on system operation of
equipment in specific conditions. Usually, this mode is entered when some prompts are required to
give operator during equipment startup, diagnosis or operation. In this mode, LED flashes to display
numbers, letters or other patterns in matrix. Please refer to Table 1-36.

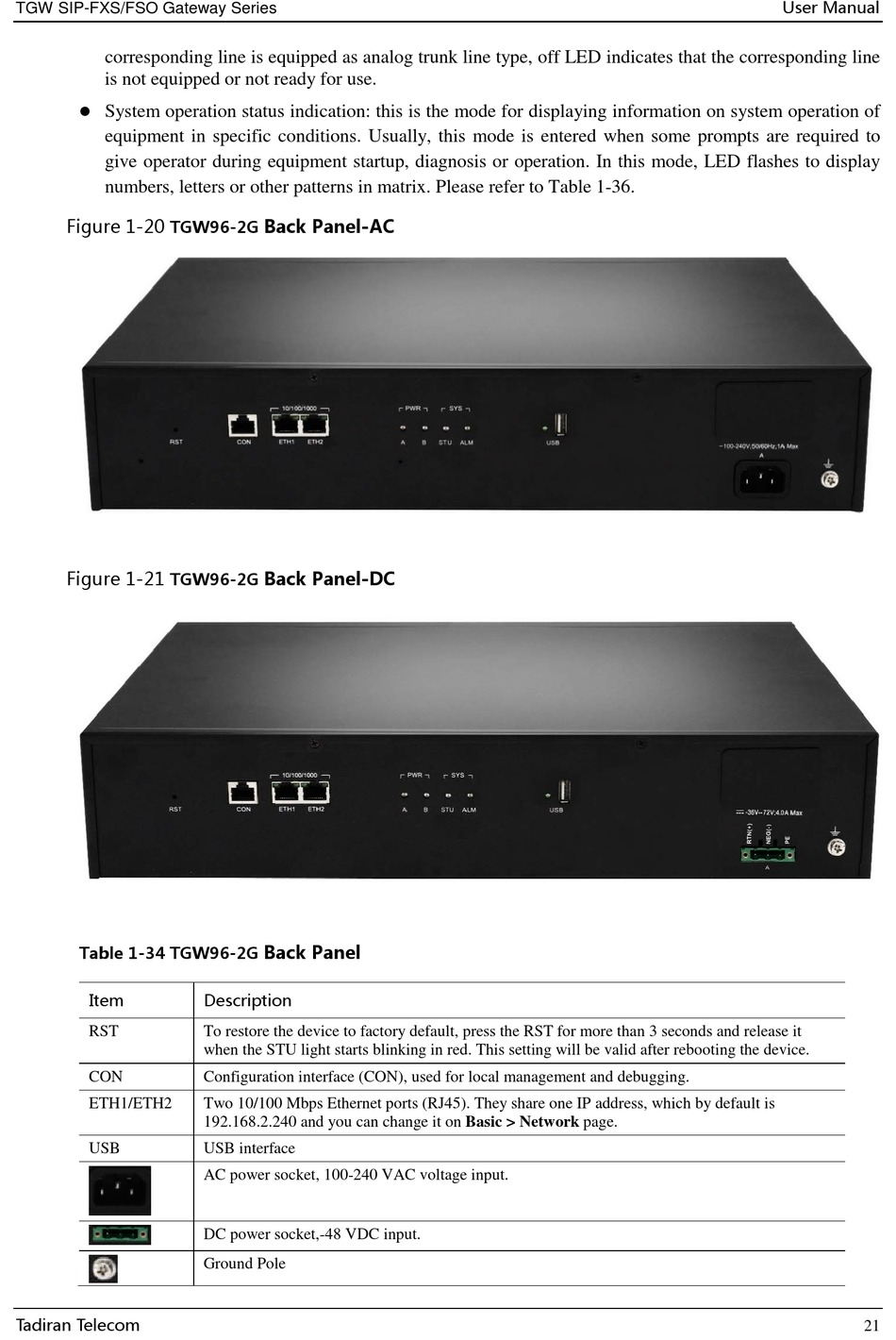

Figure 1-20
TGW96-2G
Figure 1-21
TGW96-2G
Table 1-34 TGW96-2G
Item
RST
CON
ETH1/ETH2
USB
Tadiran Telecom
Back Panel-AC
Back Panel-DC
Back Panel
Description
To restore the device to factory default, press the RST for more than 3 seconds and release it
when the STU light starts blinking in red. This setting will be valid after rebooting the device.
Configuration interface (CON), used for local management and debugging.
Two 10/100 Mbps Ethernet ports (RJ45). They share one IP address, which by default is
192.168.2.240 and you can change it on Basic > Network page.
USB interface
AC power socket, 100-240 VAC voltage input.
DC power socket,-48 VDC input.
Ground Pole
