User Manual

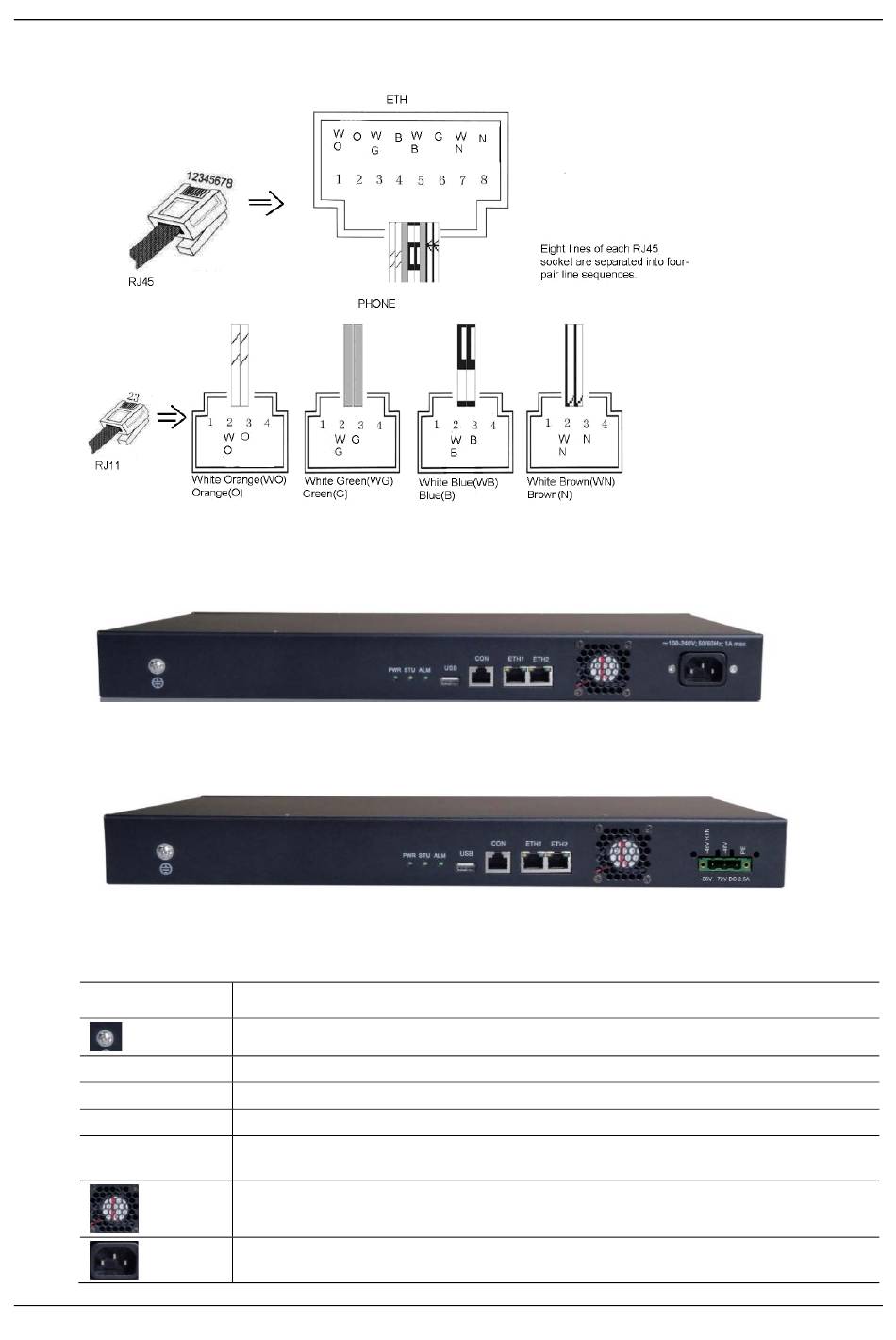

Schematic Diagram of TGW16/24-2G Subscriber Line Connection
Figure 1-8
Figure 1-9 TGW16-2G Back Panel-AC
Figure 1-10 TGW16-2G Back Panel-DC

Table 1-13 Description of TGW16/24-2G Back Panel

Item
PWR/STU/ALM
USB
CON
ETH1/ETH2
10
Description
Ground Pole
Indicator, see 0 for description
USB interface
Configuration interface (CON), Ethernet lines used for local management and debugging
Two 10/100 Mbps Ethernet ports (RJ45). They share one IP address, which by default is
192.168.2.240, and you can change it on Basic > Network page.
Cooling fan
AC power socket, 100-240 VAC voltage input.
T G W S IP -F X S /F S O G a te w a y S e rie s
Tadiran Telecom
