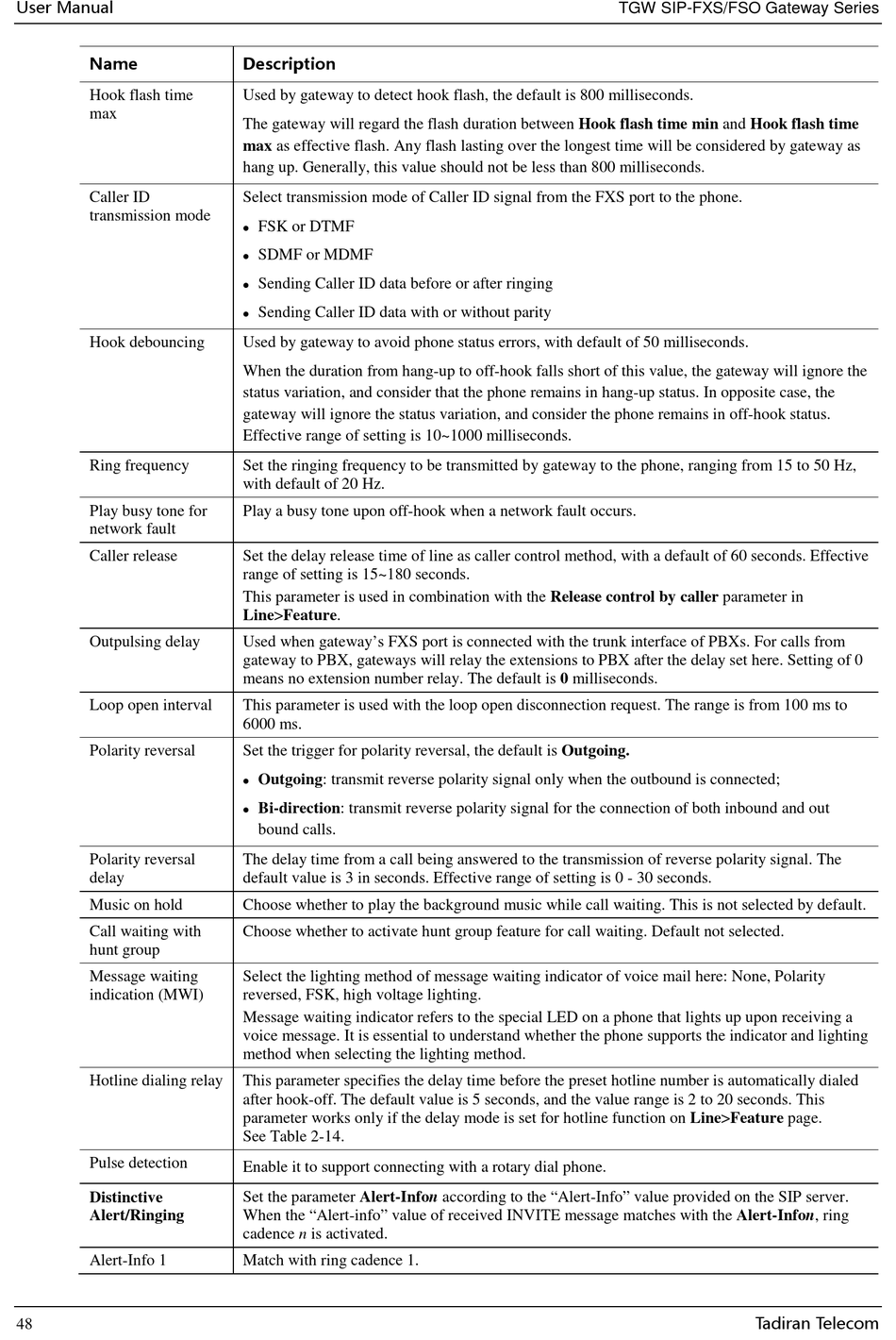

User Manual
Name
Hook flash time
max
Caller ID
transmission mode
Hook debouncing
Ring frequency
Play busy tone for
network fault
Caller release
Outpulsing delay
Loop open interval
Polarity reversal
Polarity reversal
delay
Music on hold
Call waiting with
hunt group
Message waiting
indication (MWI)
Hotline dialing relay
Pulse detection
Distinctive
Alert/Ringing
Alert-Info 1
48
Description
Used by gateway to detect hook flash, the default is 800 milliseconds.
The gateway will regard the flash duration between Hook flash time min and Hook flash time
max as effective flash. Any flash lasting over the longest time will be considered by gateway as
hang up. Generally, this value should not be less than 800 milliseconds.
Select transmission mode of Caller ID signal from the FXS port to the phone.
FSK or DTMF

SDMF or MDMF

Sending Caller ID data before or after ringing

Sending Caller ID data with or without parity

Used by gateway to avoid phone status errors, with default of 50 milliseconds.
When the duration from hang-up to off-hook falls short of this value, the gateway will ignore the
status variation, and consider that the phone remains in hang-up status. In opposite case, the
gateway will ignore the status variation, and consider the phone remains in off-hook status.
Effective range of setting is 10~1000 milliseconds.
Set the ringing frequency to be transmitted by gateway to the phone, ranging from 15 to 50 Hz,
with default of 20 Hz.
Play a busy tone upon off-hook when a network fault occurs.
Set the delay release time of line as caller control method, with a default of 60 seconds. Effective
range of setting is 15~180 seconds.
This parameter is used in combination with the Release control by caller parameter in
Line>Feature.
Used when gateway's FXS port is connected with the trunk interface of PBXs. For calls from
gateway to PBX, gateways will relay the extensions to PBX after the delay set here. Setting of 0
means no extension number relay. The default is 0 milliseconds.
This parameter is used with the loop open disconnection request. The range is from 100 ms to
6000 ms.
Set the trigger for polarity reversal, the default is Outgoing.
Outgoing: transmit reverse polarity signal only when the outbound is connected;

Bi-direction: transmit reverse polarity signal for the connection of both inbound and out

bound calls.
The delay time from a call being answered to the transmission of reverse polarity signal. The
default value is 3 in seconds. Effective range of setting is 0 - 30 seconds.
Choose whether to play the background music while call waiting. This is not selected by default.
Choose whether to activate hunt group feature for call waiting. Default not selected.
Select the lighting method of message waiting indicator of voice mail here: None, Polarity
reversed, FSK, high voltage lighting.
Message waiting indicator refers to the special LED on a phone that lights up upon receiving a
voice message. It is essential to understand whether the phone supports the indicator and lighting
method when selecting the lighting method.
This parameter specifies the delay time before the preset hotline number is automatically dialed
after hook-off. The default value is 5 seconds, and the value range is 2 to 20 seconds. This
parameter works only if the delay mode is set for hotline function on Line>Feature page.
See Table 2-14.
Enable it to support connecting with a rotary dial phone.
Set the parameter Alert-Infon according to the "Alert-Info" value provided on the SIP server.
When the "Alert-info" value of received INVITE message matches with the Alert-Infon, ring
cadence n is activated.
Match with ring cadence 1.
