User Manual

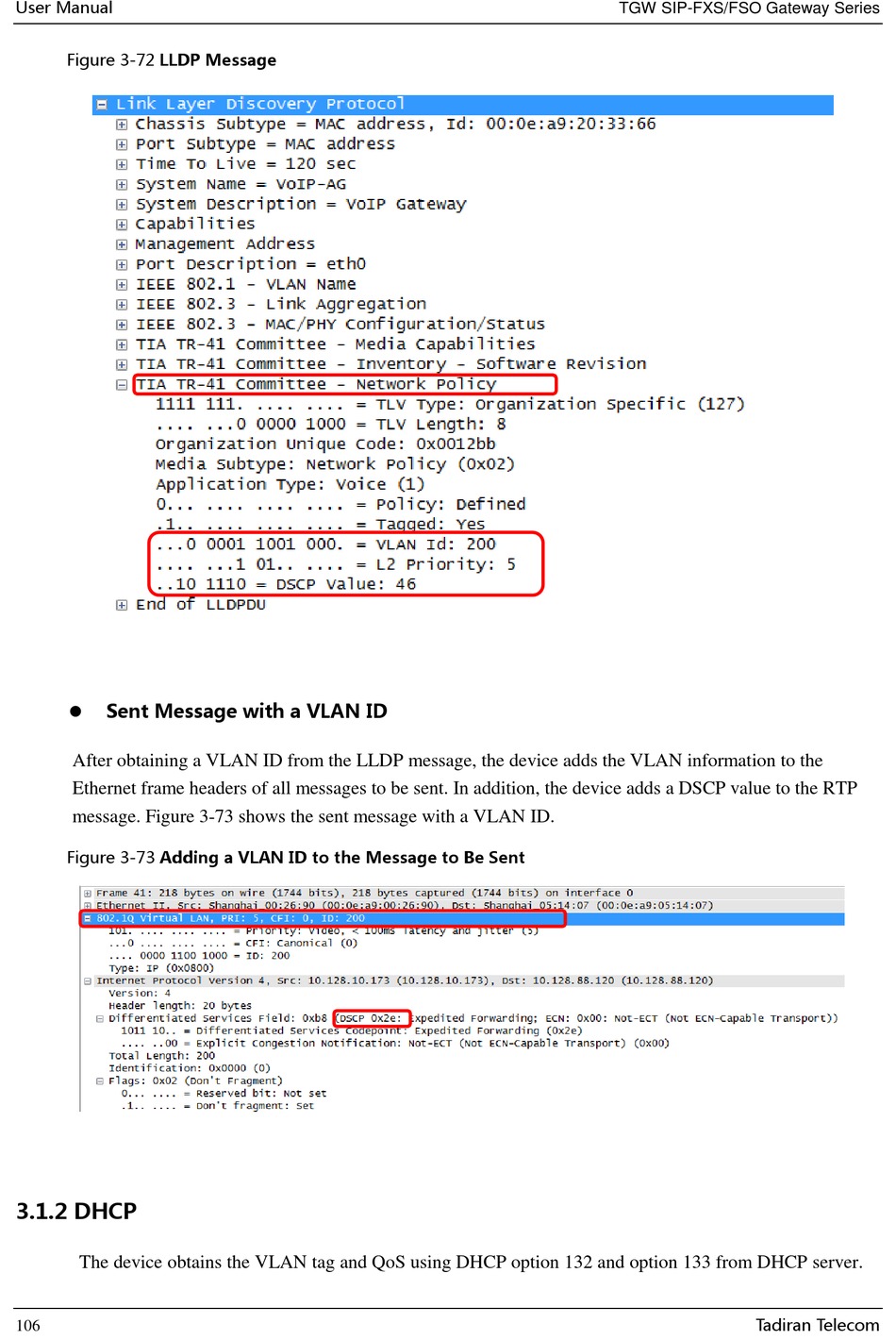

LLDP Message
Figure 3-72
Sent Message with a VLAN ID

After obtaining a VLAN ID from the LLDP message, the device adds the VLAN information to the
Ethernet frame headers of all messages to be sent. In addition, the device adds a DSCP value to the RTP
message. Figure 3-73 shows the sent message with a VLAN ID.
Figure 3-73 Adding a VLAN ID to the Message to Be Sent

3.1.2 DHCP

The device obtains the VLAN tag and QoS using DHCP option 132 and option 133 from DHCP server.
106
T G W S IP -F X S /F S O G a te w a y S e rie s
