T G W S IP -F X S /F S O G a te w a y S e rie s

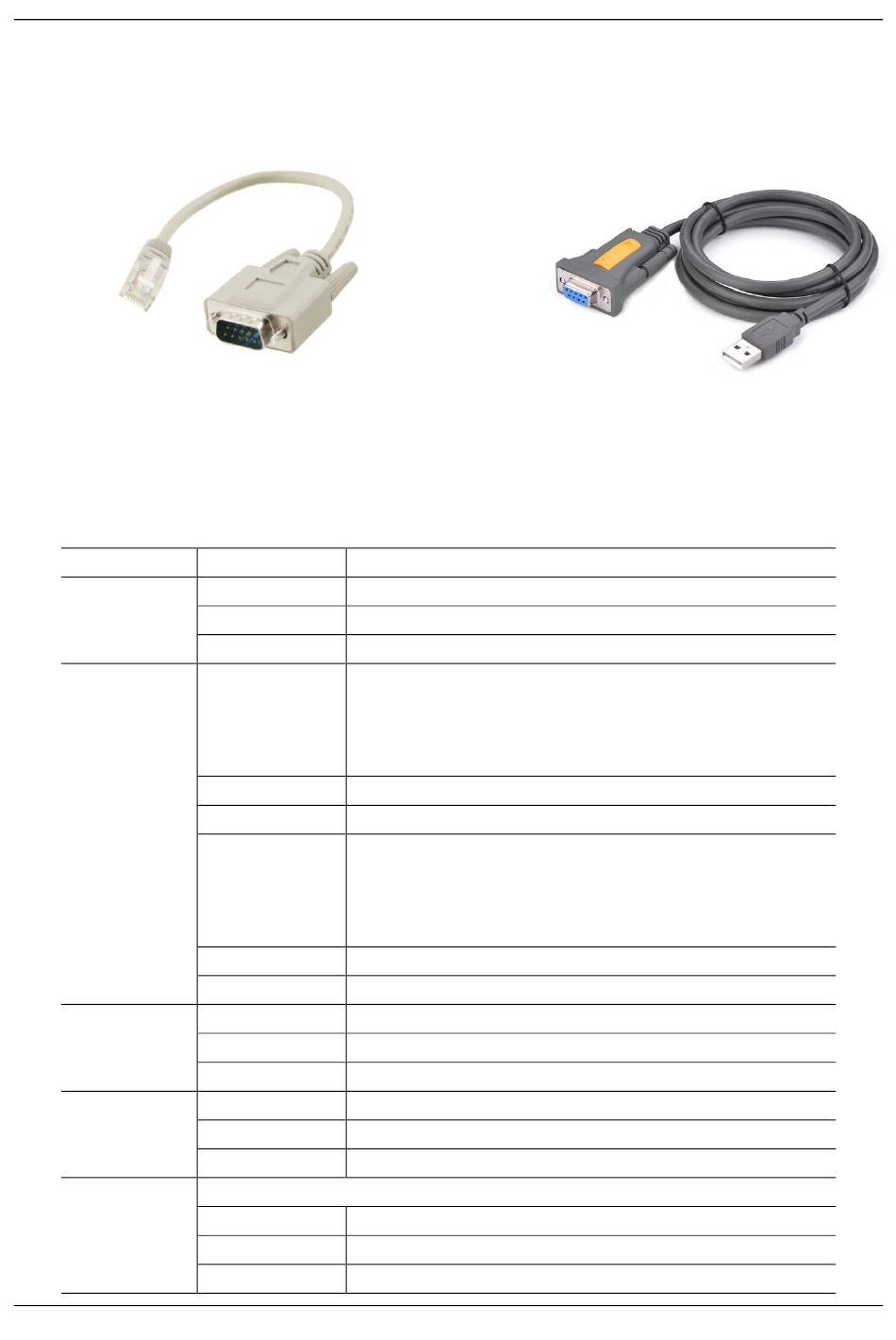

Figure 1-5

Table 1-9 Indicator Status of TGW8-2G

Indicator
PWR (green)
STU
(red, green)
WAN
(green)
PC
(green)
VOICE
(Green-FXS,
yellow-FXO)
Tadiran Telecom
RJ45 to RS232 Serial Cable
Status Description
Blinking green The device is starting.
Steady green The device is running.
Off The device is powered off or a power supply fault occurred.
The WAN interface failed to acquire the IP address. Possibly the WAN
interface is not connected to a network cable, the WAN interface
Steady red
address fails to be acquired by DHCP, the IP addresses are conflicted,
and the PPPoE dialing fails.
Blinking red The device is starting or the KUPDATE is upgrading.
Steady green Registration is successful.
Blinking
alternatively
Registration failed.
between red and
green
Blinking green Calling
Off Registration has not started.
Steady green A WAN connection is established without any service flow.
Blinking green A WAN connection is established with service flow.
Off WAN interface is disconnected.
Steady green A link is connected without any service flow.
Blinking green A service flow is being transmitted.
Off A link is not connected.
Indicates line type and device status:
Blinking yellow The device is starting and the port is an FXO port.
Blinking green The device is starting and the port is an FXS port.
Off No line is detected. Possibly the voice interface card is not inserted or
Figure 1-6 USB to RS232 Converter Cable
User Manual
7
