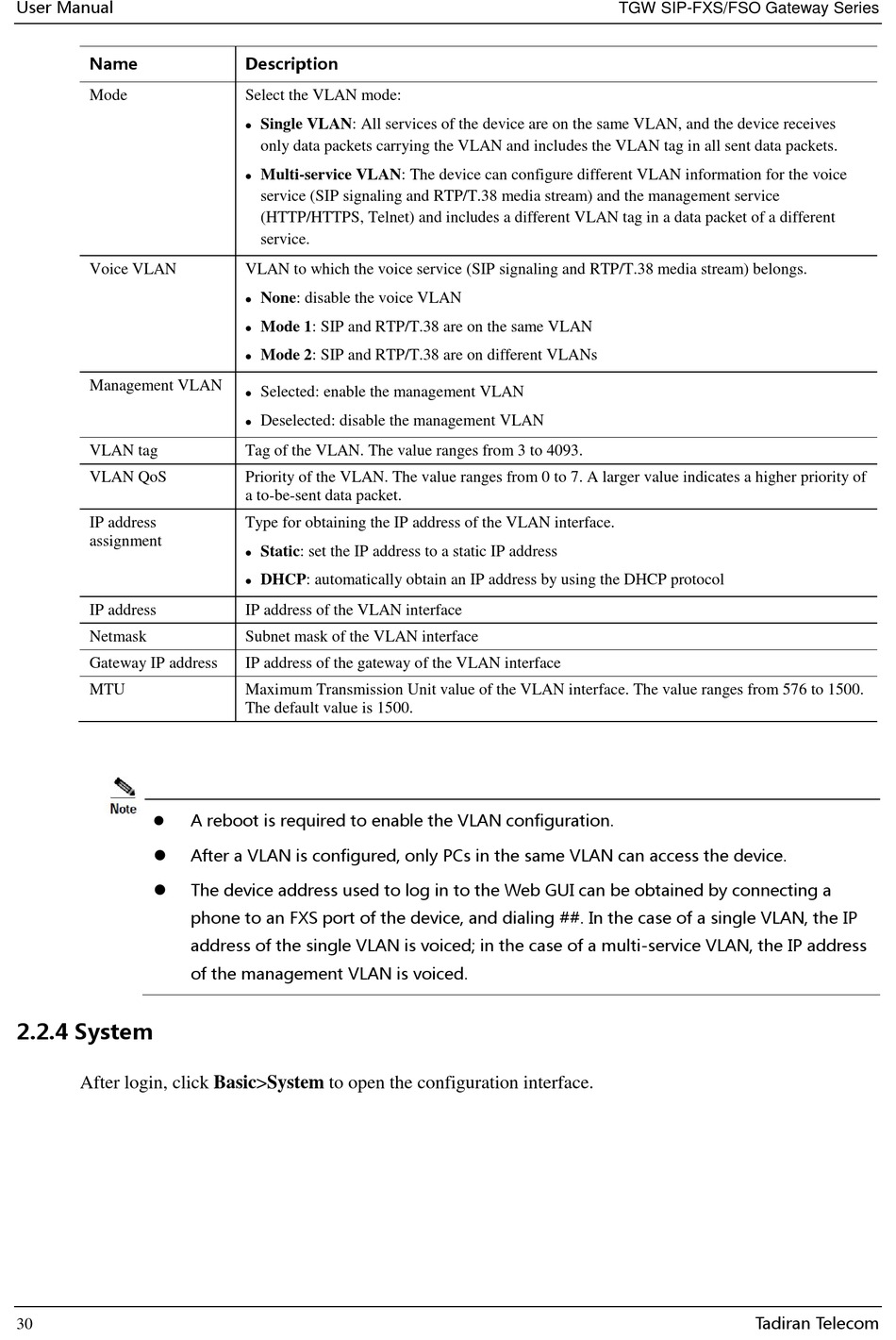

2.2.4 System

After login, click Basic>System to open the configuration interface.
30
Description
Select the VLAN mode:
Single VLAN: All services of the device are on the same VLAN, and the device receives
only data packets carrying the VLAN and includes the VLAN tag in all sent data packets.
Multi-service VLAN: The device can configure different VLAN information for the voice
service (SIP signaling and RTP/T.38 media stream) and the management service
(HTTP/HTTPS, Telnet) and includes a different VLAN tag in a data packet of a different
service.
VLAN to which the voice service (SIP signaling and RTP/T.38 media stream) belongs.
None: disable the voice VLAN
Mode 1: SIP and RTP/T.38 are on the same VLAN
Mode 2: SIP and RTP/T.38 are on different VLANs
Selected: enable the management VLAN
Deselected: disable the management VLAN
Tag of the VLAN. The value ranges from 3 to 4093.
Priority of the VLAN. The value ranges from 0 to 7. A larger value indicates a higher priority of
a to-be-sent data packet.
Type for obtaining the IP address of the VLAN interface.
Static: set the IP address to a static IP address
DHCP: automatically obtain an IP address by using the DHCP protocol
IP address of the VLAN interface
Subnet mask of the VLAN interface
IP address of the gateway of the VLAN interface
Maximum Transmission Unit value of the VLAN interface. The value ranges from 576 to 1500.
The default value is 1500.
A reboot is required to enable the VLAN configuration.
After a VLAN is configured, only PCs in the same VLAN can access the device.
The device address used to log in to the Web GUI can be obtained by connecting a
phone to an FXS port of the device, and dialing ##. In the case of a single VLAN, the IP
address of the single VLAN is voiced; in the case of a multi-service VLAN, the IP address
of the management VLAN is voiced.
